Repair Procedures: Replacement

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the front seat mounting bolts.

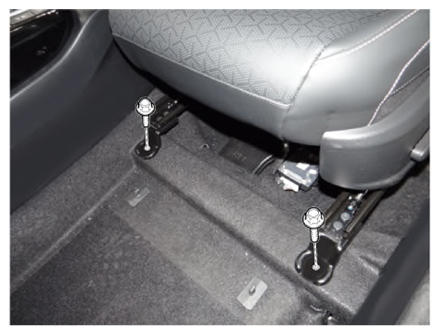

[Front]

Tightening torque:

44.1 - 58.8 N.m (4.5 - 6.0 Kgf.m, 32.5 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

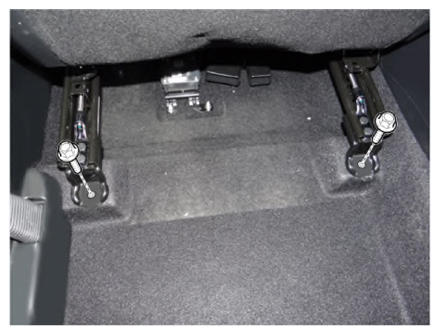

[Rear]

Tightening torque:

44.1 - 58.8 N.m (4.5 - 6.0 Kgf.m, 32.5 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

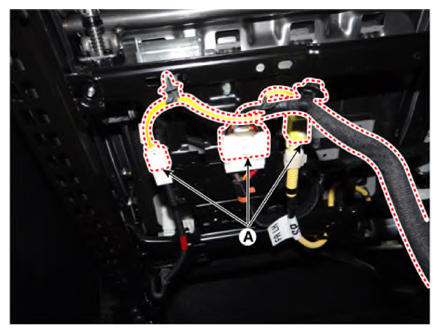

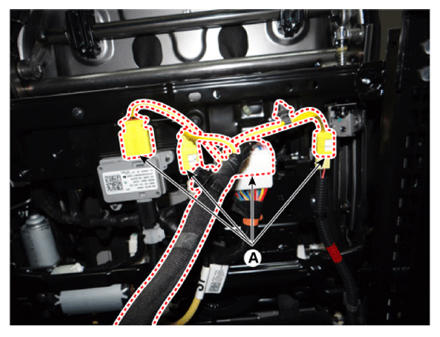

Disconnect the front seat connector (A).
[Driver's]

Courtesy of KIA MOTORS AMERICA, INC.

[Passenger's]

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information

The installation procedures of seat mounting bolts
- Push the seat to the rear end of slides and initially tighten the front mounting bolts.
- Push the seat to the front end of slides and completely tighten the rear mounting bolts.
- Send the seat to the rear end again to completely tighten the front mounting bolts.
- Check the seat for smooth movement.
- For the non-automatic slide seats, check the seats are fixed at each designated fixing position.
