Liftgate Lower Trim

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.

Using a screwdriver or remover, remove the pull handle (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Once the pull handle is removed, replace it with a new one.

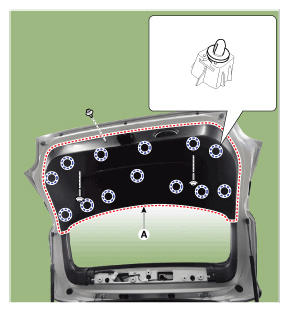

After loosening the mounting screws and fastener remove the liftgate lower trim (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Replace any damaged clips.
