Liftgate Side Trim
WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Take care not to scratch the body surface.
- Remove the liftgate upper & lower trim.
(Refer to Liftgate - "LIFTGATE TRIM ")

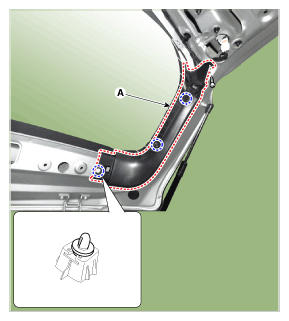

- After loosening the mounting screw, remove the liftgate side trim (A).
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
