Repair Procedures: Reassembly

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the insulator, spring pad, coil spring and dust cover from the strut assembly.

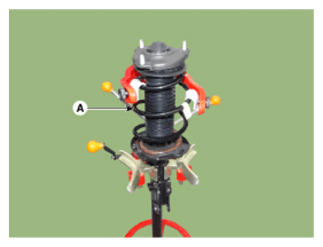

  2. Compress and extend the piston rod (A) and check that there is no abnormal resistance or unusual sound during operation.
    G12605963Courtesy of HYUNDAI MOTOR AMERICA

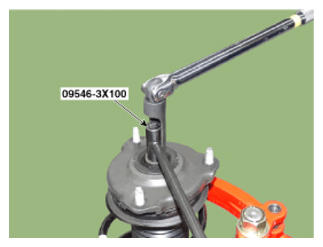

  3. Using the special tool (09546-3X100), install the self locking nut.
    NOTE:
    • Do not reuse the self locking nut.

    Tightening Torque:

    98.0 - 107.8 N.m (10.0 - 11.0 kgf.m, 72.3 - 79.6 lb-ft)

    G12605964Courtesy of HYUNDAI MOTOR AMERICA
