Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Switch "OFF" ignition and disconnect the negative (-) battery terminal.
Remove the crash pad lower panel.
(Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")

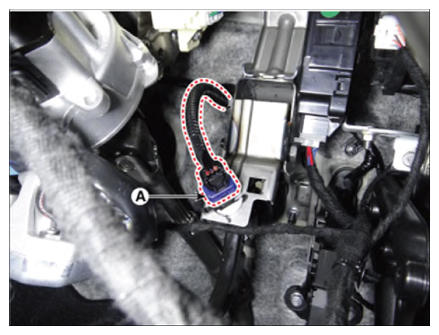

Disconnect the stop lamp switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

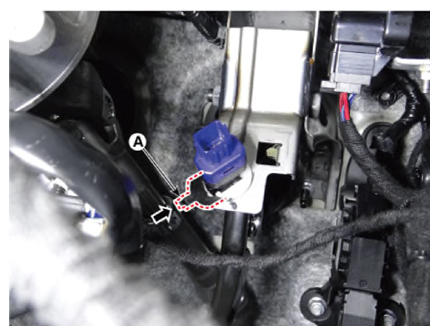

Pull the locking plate (A) as indicated by the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

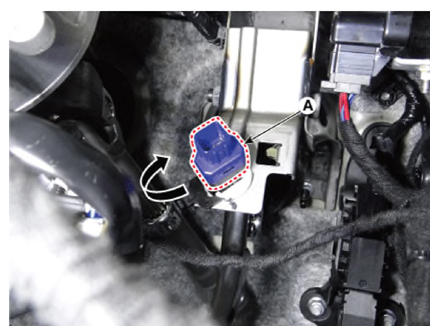

Turn brake switch 45° counterclockwise and remove it.

Courtesy of KIA MOTORS AMERICA, INC.

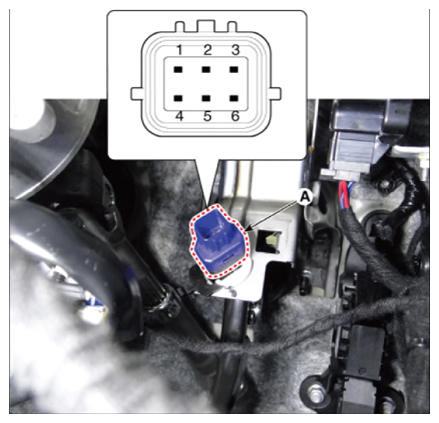

Inspect the removed stop lamp switch using procedures below.
1. Confirm proper connection with brake switch.
  - A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.
Courtesy of KIA MOTORS AMERICA, INC.

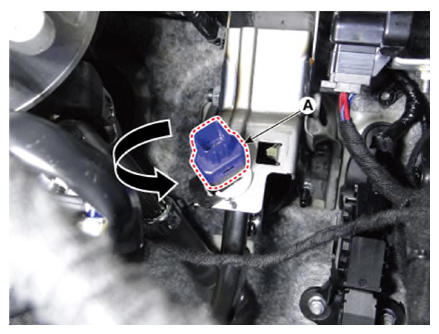

Fully insert the stop lamp switch on the mounting bracket and then turn the stop lamp switch 45° clockwise.

Courtesy of KIA MOTORS AMERICA, INC.
Assemble locking plate (A) by pushing.

Courtesy of KIA MOTORS AMERICA, INC.

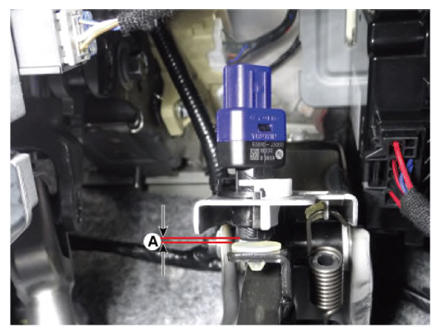

Confirm the gap (A) between stop lamp switch and bracket.
Stop lamp clearance (A):

1.0 - 2.0 mm (0.04 - 0.08 in.)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- If the gap between stop lamp switch and bracket is not between 1.0 - 2.0 mm (0.04 - 0.08 in), check the mounting clip and other parts around the stop lamp.
- If everything is normal, reinstall the stop lamp switch and check the clearance again.

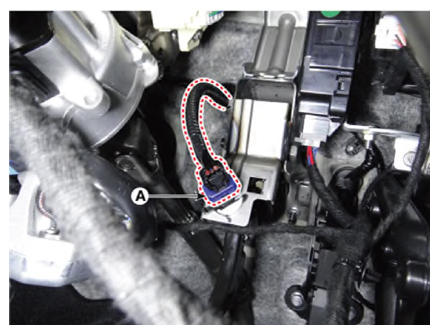

Connect the stop lamp switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install the other parts in the reverse order of removal.
