Repair Procedures: Installation

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install in the reverse order of removal.

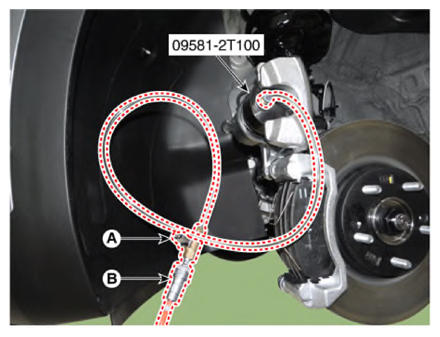

  2. Use a SST (09581-2T100) when installing the brake caliper assembly.
    1. Connect an air hose (A) to the SST after confirming that the valve of the SST is surely closed.
    2. Input the SST in the caliper and press the caliper piston while opening the valve of the SST slowly counter clock wise.
    3. Close the valve (A) of the SST and disconnect the air hose (B); then, open the valve again to get the rest of air out and remove the SST from the caliper.
    G13481717Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When installing the brake pads, Handle with care to avoid deformation on the retraction part of the pad spring.
    For the brake pad to locate on the normal operation position, depress the brake pedal halfway several times until the brake pedal gains resistance.
