Circuit Diagram

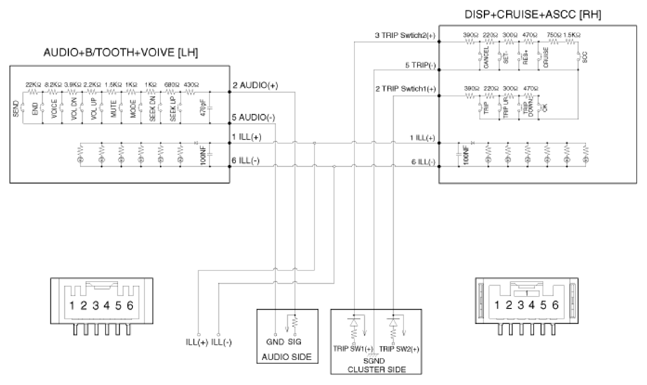

G13361430Courtesy of KIA MOTORS AMERICA, INC.

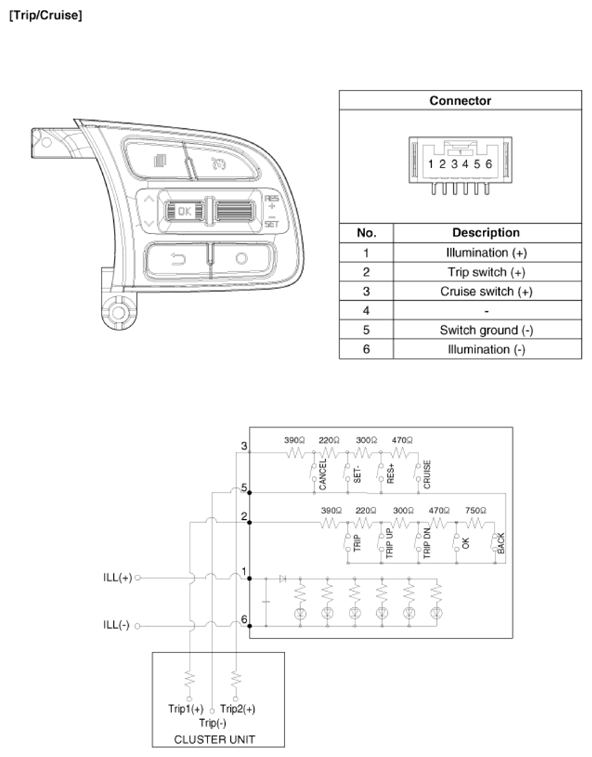

G13361431Courtesy of KIA MOTORS AMERICA, INC.

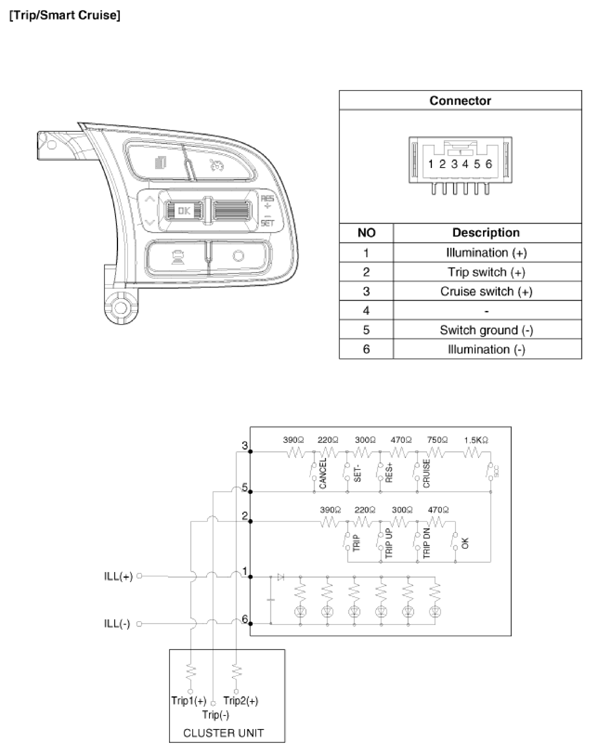

G13361432Courtesy of KIA MOTORS AMERICA, INC.

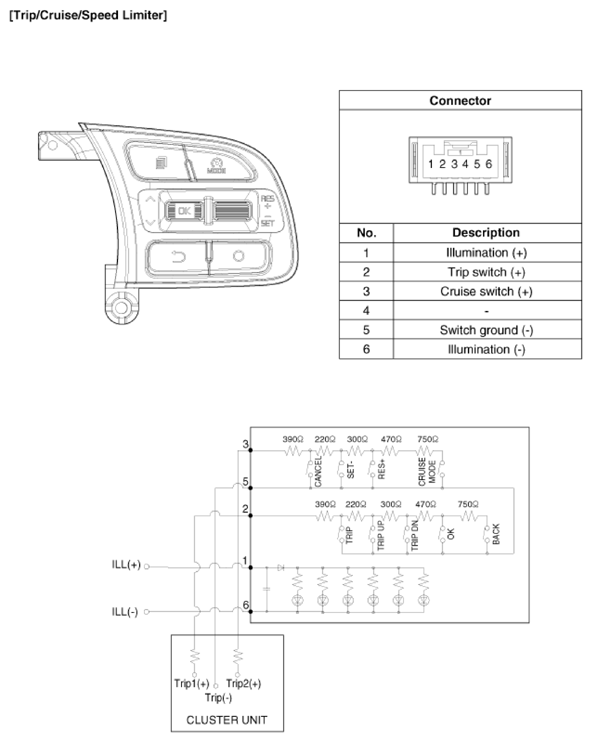

G13361433Courtesy of KIA MOTORS AMERICA, INC.

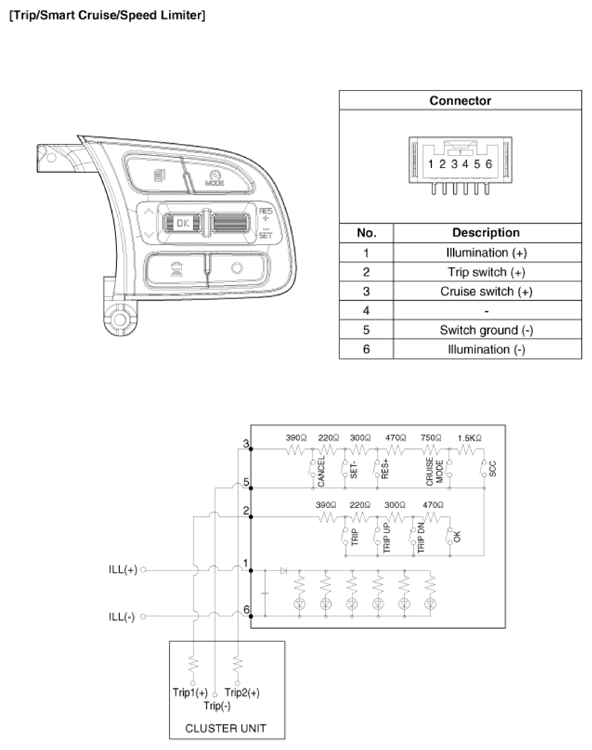

G13361434Courtesy of KIA MOTORS AMERICA, INC.
