[Rear Power Window Module (RDM, IMS)]

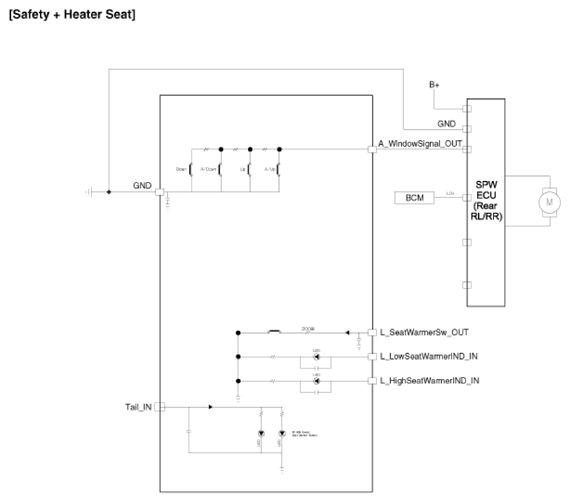

G13364347Courtesy of KIA MOTORS AMERICA, INC.

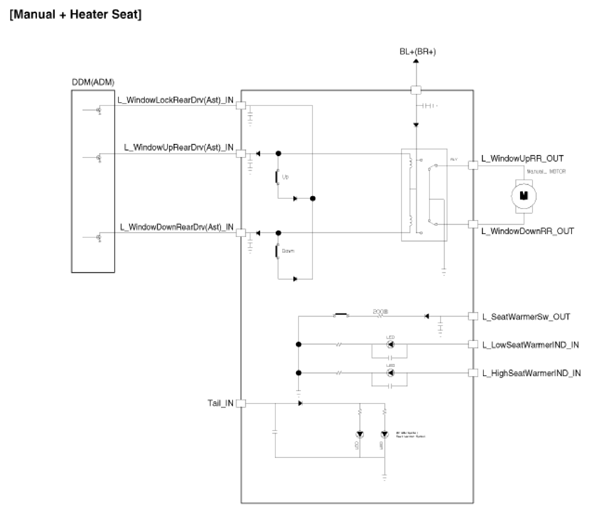

G13364348Courtesy of KIA MOTORS AMERICA, INC.

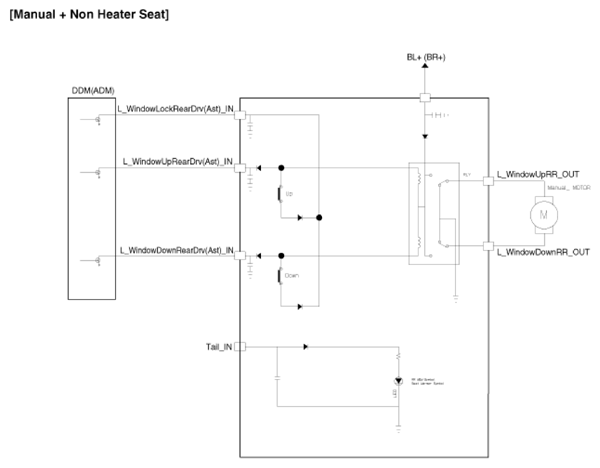

G13364349Courtesy of KIA MOTORS AMERICA, INC.
G13364350Courtesy of KIA MOTORS AMERICA, INC.
