Removal And Installation

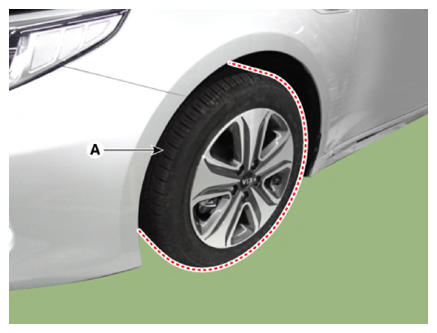

Remove the wheel & tire (A).
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage to the hub bolts when removing the front wheel and tire (A).

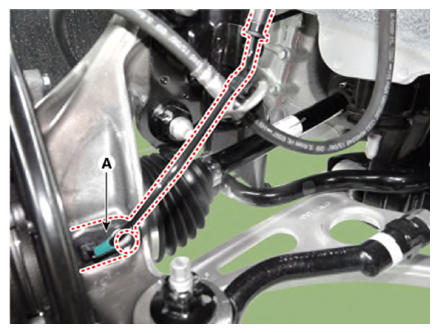

Remove the front wheel speed sensor mounting bolt (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front wheel house cover.
Remove the mounting bolts (A).

Courtesy of KIA MOTORS AMERICA, INC.

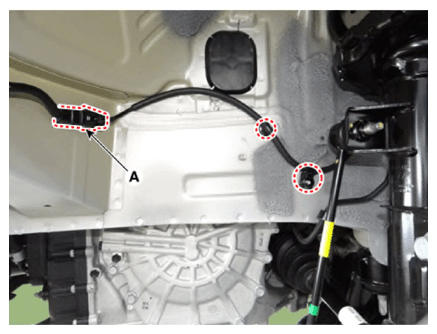

Disconnect the front wheel speed sensor connector (A), then remove the front wheel speed sensor.

Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
