Vehicle S/W Management

  1. Ignition "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition "ON"& Engine "OFF"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.

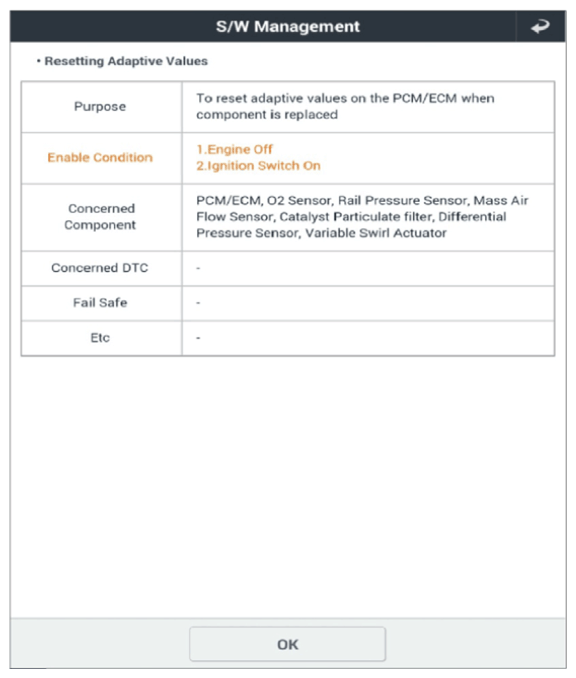

G13368761Courtesy of KIA MOTORS AMERICA, INC.

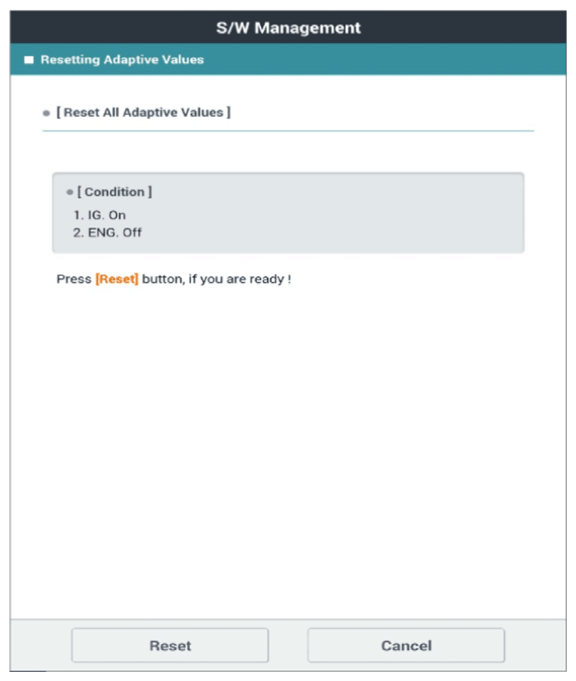

G13368762Courtesy of KIA MOTORS AMERICA, INC.

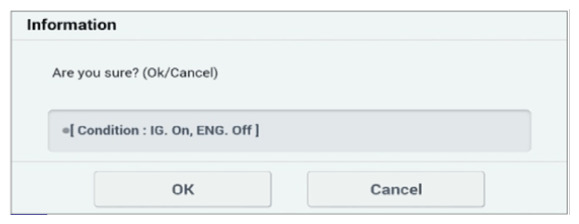

G13368763Courtesy of KIA MOTORS AMERICA, INC.

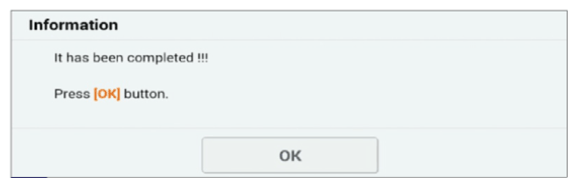

G13368764Courtesy of KIA MOTORS AMERICA, INC.
