System Inspection: Notes

PCSV Actuation Test

1. Connect KDS to Data Link Connector(DLC).
2. Ignition "ON" & Engine "OFF"

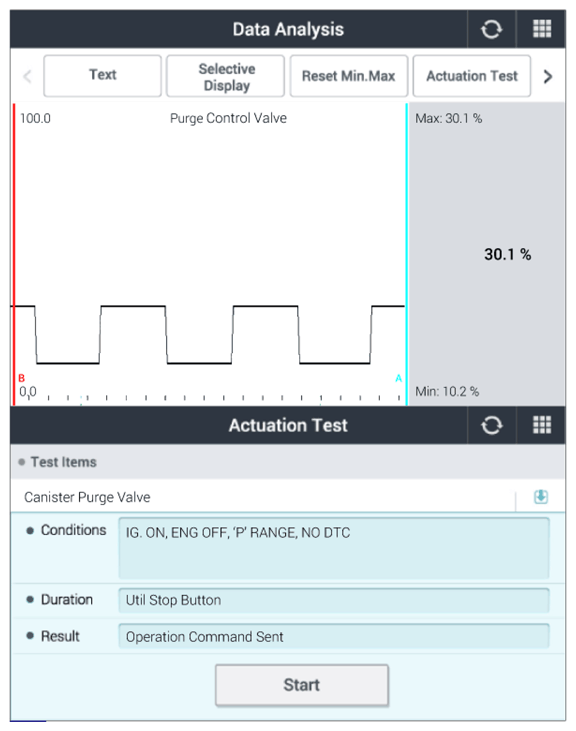

3. Perform "Canister Purge Valve" in "Actuation Test" with KDS.
4. Monitor "Canister Control Valve" parameter in "Current Data" with KDS.

   Specification:  Refer to Figure below

   Courtesy of KIA MOTORS AMERICA, INC.

5. Is the parameter displayed within specification?

   YES

   • Go to "Canister Close Valve Actuation Test" procedure below.

   NO

   • Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

Canister Close Valve Actuation Test

1. Connect KDS to Data Link Connector(DLC).
2. Ignition "ON" & Engine "OFF".

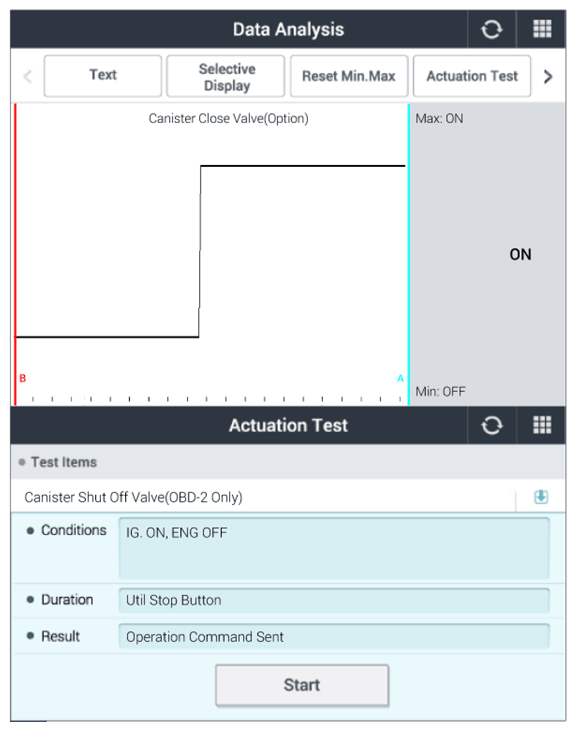

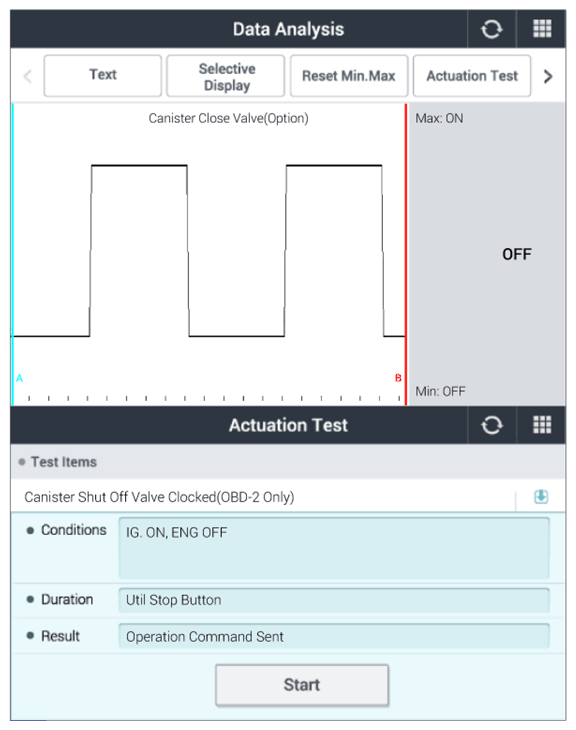

3. Perform "Canister Shut Off Valve(OBD-2 Only)" and "Canister Shut Off Valve Clocked(OBD-2 Only)" in "Actuation Test" with KDS.
4. Monitor "Canister Close Valve(Option)" parameter in "Current Data" with KDS.

   Specification:  Refer to Figure below

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

5. Is the parameter displayed within specification?

   YES

   • Go to "CANISTER INSPECTION " procedure.

   NO

   • Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
