Component Inspection

Accelerator Position Sensor Inspection

1. Ignition "OFF".
2. Connect VMI to KDS and set up an oscilloscope as follow (2-channel);

   Channel A (+): Pin No. 3 (APS1 Signal) terminal of Accelerator Pedal Position Sensor.

   Channel A (-): Ground

   Channel B (+): Pin No. 6 (APS2 Signal) terminal of Accelerator Pedal Position Sensor.

   Channel B (-): Ground

3. Ignition "ON"
4. Testing Condition: Accelerator Pedal Operation.

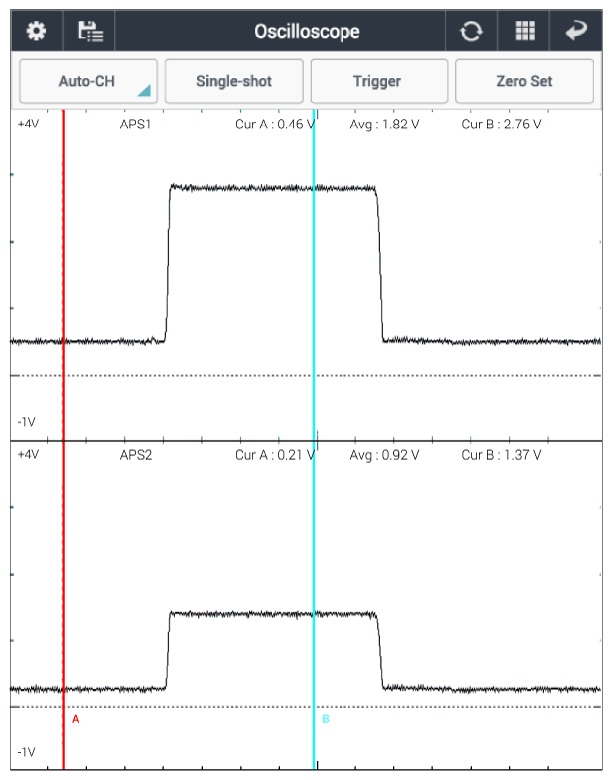

   Specification:  Refer to Figure below

   Courtesy of KIA MOTORS AMERICA, INC.

5. Is the measured value within specification?

   YES

   • Carefully re-do this troubleshooting guide steps.
   • If the diagnostics have been performed correctly with no failure found, replace the PCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
   CAUTION: When replacing the ECM/PCM, the vehicle equipped with the immobilizer must be performed procedure as below.
   [In the case of installing used ECM/PCM]


   1. Perform "ECM Neutral mode" procedure with KDS. (Refer to "IMMOBILIZER " in BE group)
   2. After finishing "ECM Neutral mode", perform "Key teaching" procedure with KDS. (Refer to "IMMOBILIZER " in BE group)


   [In the case of installing new ECM/PCM]
   Perform "Key teaching" procedure with KDS. (Refer to "IMMOBILIZER " in BE group)
   CAUTION: When replacing the ECM/PCM, the vehicle equipped with the smart key system (Button start) must be performed procedure as below.
   [In the case of installing used ECM/PCM]


   1. Perform "ECM Neutral mode" procedure with KDS. (Refer to "SMART KEY " in BE group)
   2. After finishing "ECM Neutral mode", insert the key (or press the start button) and turn it to the IGN ON and OFF position. Then the ECM/PCM learns the smart key information automatically.


   [In the case of installing new ECM/PCM]
   Insert the key (or press the start button) and turn it to the IGN ON and OFF position. Then the ECM/PCM learns the smart key information automatically.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If no problems were found with the circuits or connectors, Acceleration Pedal Position Sensor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
