Section 10 (Engine Control System (HEV))
>>
ETC (Electronic Throttle Control) System
>>
Schematic Diagrams
>>

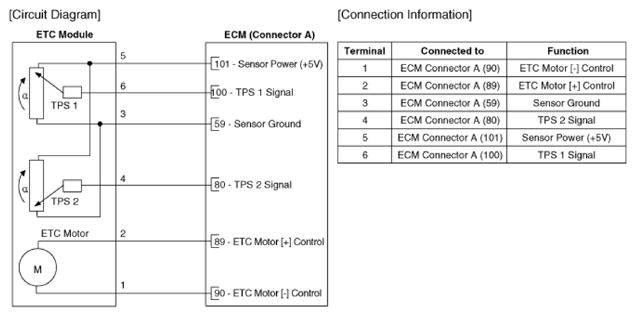

Circuit Diagram
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram: Notes
WARNING:
This page is about a different variant/trim than selected.
Courtesy of KIA MOTORS AMERICA, INC.
