Repair Procedures: Inspection
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch ON.

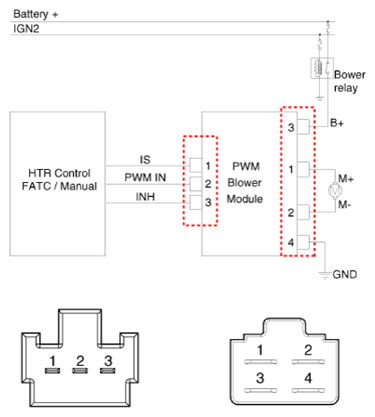

- Manually operate the control switch and measure the voltage of the blower motor.
- Select the control switch to raise voltage until the speed gets high.
Blower Speed Voltage (V) Manual Voltage (V) Auto Voltage (V) A/C ON A/C OFF 1 3.8 3.4 Auto Low (4.6V) 2 4.6 4.6 4.6 - 5.6 3 5.9 5.9 5.6 - 6.7 4 7.2 7.2 6.7 - 7.7 5 8.3 8.3 7.7 - 8.9 6 9.5 9.5 8.9 - 10.1 7 11.3 11.3 10.1 - AUTO HI (10.8V) 8 B (+) B (+)
