Front Wheel Alignment: Notes

CAUTION: When using a commercially available computerized wheel alignment equipment to inspect the front wheel alignment, always position the vehicle on a level surface with the front wheels facing straight ahead.

CAUTION: Prior to inspection, make sure that the front suspension and steering system are in normal operating condition and that the tires are inflated to the specified pressure.

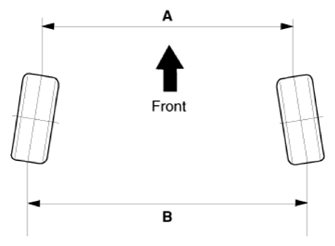

Toe

Courtesy of KIA MOTORS AMERICA, INC.

B - A > 0: Toe in (+)

B - A < 0: Toe out (-)
