Front View Camera Variant Coding
WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
Front view camera variant coding makes it possible to operate functions for each vehicle type. If the variant coding differs from the vehicle specification, the "variant coding error" DTC is displayed.
- Procedure for coding variants
- You should read the specification information for the front view camera that is installed in the vehicle before replacing it with a new front view camera.

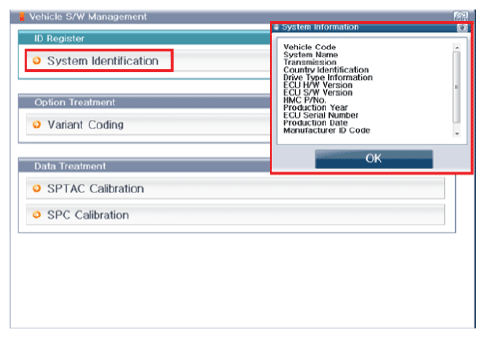

- Select specification information from G-SCAN's additional function.

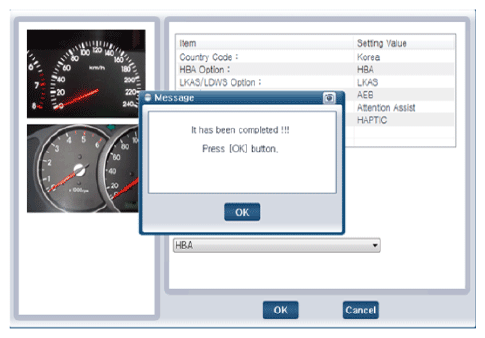

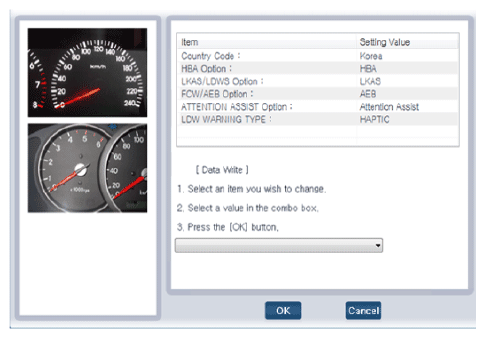

- Enter the value of the specification read in procedure (2) in the new front view camera.
