Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

Remove the coupling from the vehicle.

(Refer to 4WD System - "DIRECT ELECTRO HYDRAULIC ACTUATOR COUPLING ")

NOTE:

Keep it level with the sticker (A) on the top of the coupling.

Courtesy of HYUNDAI MOTOR AMERICA

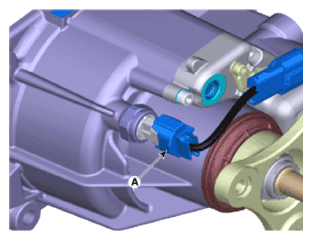

Disconnect the extension cable (A).

Courtesy of HYUNDAI MOTOR AMERICA

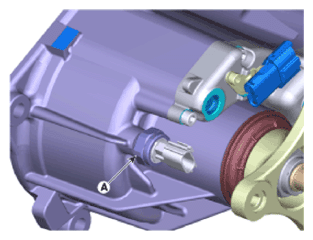

Remove the pressure sensor (A) with 24mm socket.
NOTE:
- Keep going horizontal state to prevent leaks during remove the pressure sensor.
Tightening Torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
