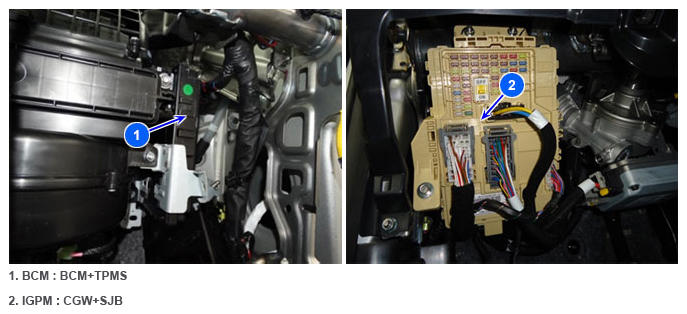

Component Location: BCM
WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
BCM
BCM* is responsible for monitoring and controlling body electrical systems. It controls output of time or alarm related function with switch signals from switch and switch signals from SJB* via B-CAN communication.
BCM* uses B-CAN (Body CAN) for optimizing wires and communicates with other units to receive required data and transmit data to other units.
NOTE:
BCM* (Body Control Module): "BCM"
TPMS (Tire Pressure Monitoring System): "BCM"
IGPM (Integrated Gateway & Power control Module): "IGPM"
TPMS (Tire Pressure Monitoring System): "BCM"
IGPM (Integrated Gateway & Power control Module): "IGPM"
CGW (Central Gateway): "IGPM_GATE WAY"
SJB* (Smart Junction Block): "IGPM_IPS CONTROL MODULE"
