Components Location

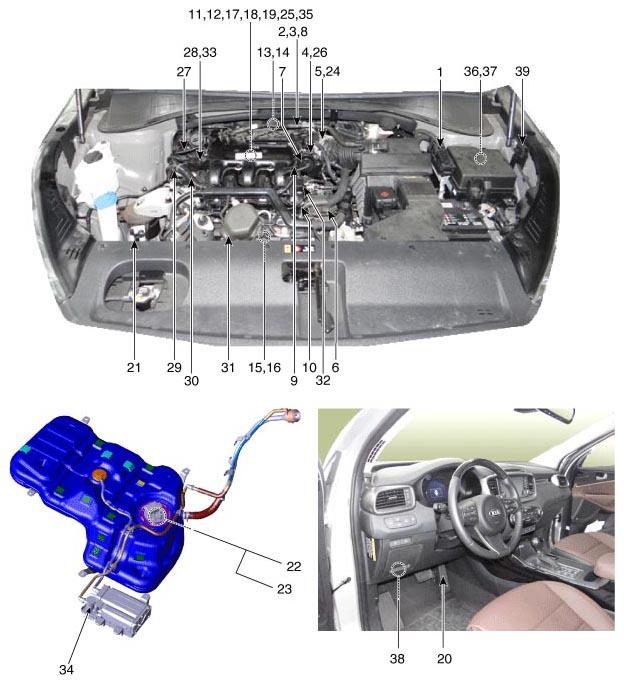

G12885546Courtesy of KIA MOTORS AMERICA, INC.

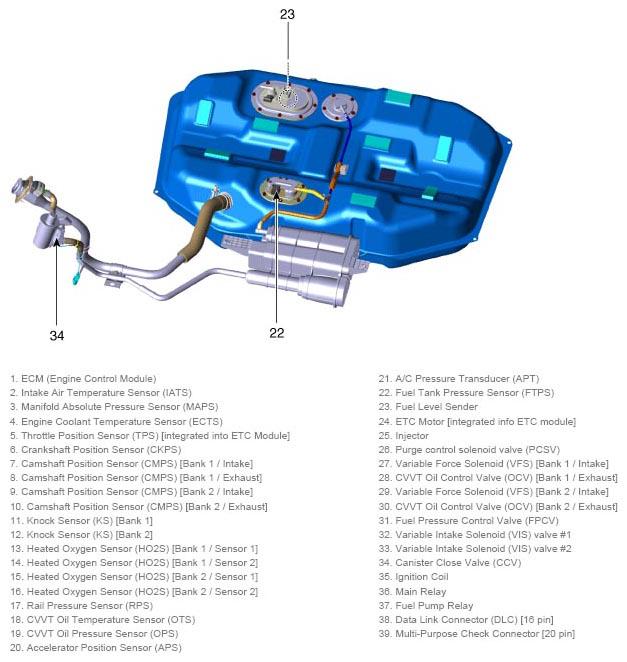

G12885547Courtesy of KIA MOTORS AMERICA, INC.

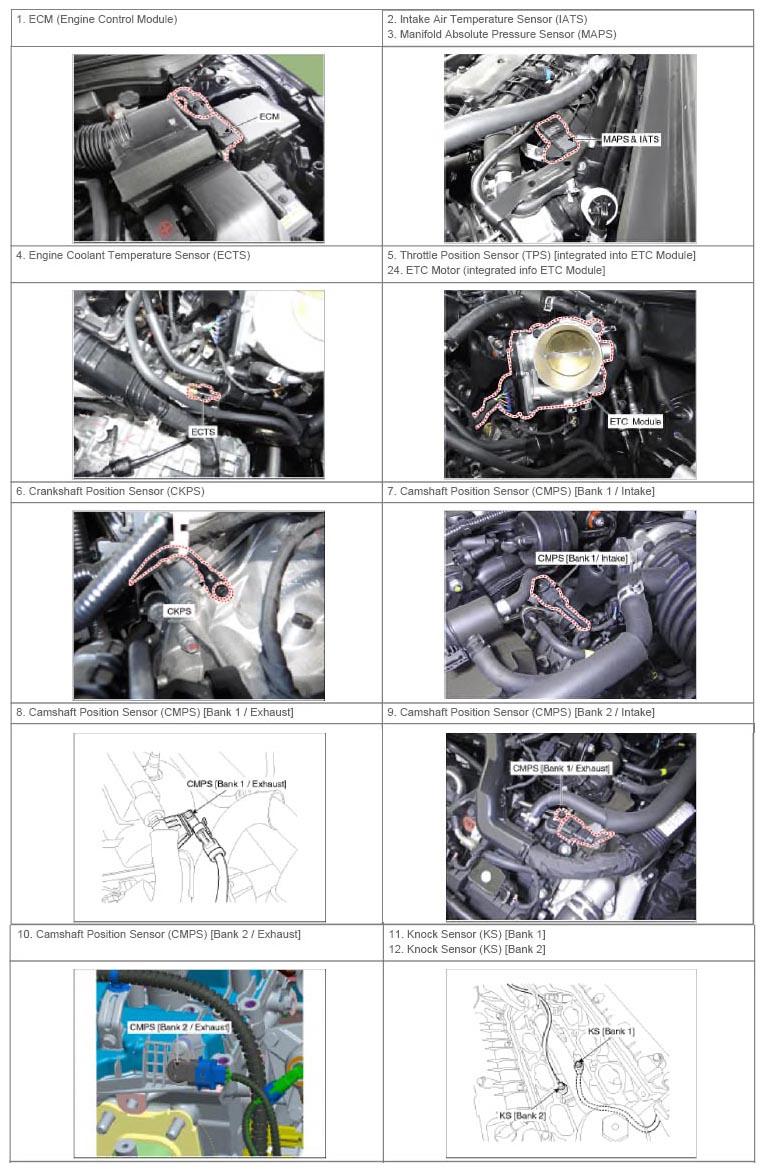

G12885548Courtesy of KIA MOTORS AMERICA, INC.

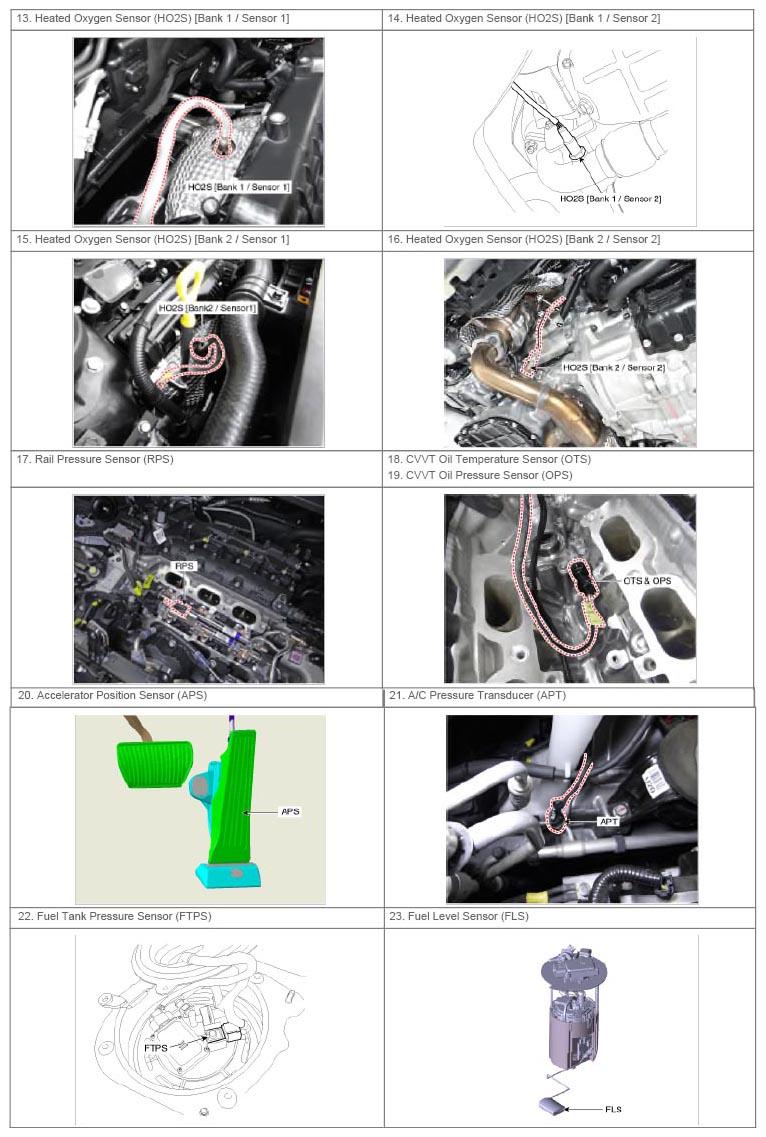

G12885549Courtesy of KIA MOTORS AMERICA, INC.

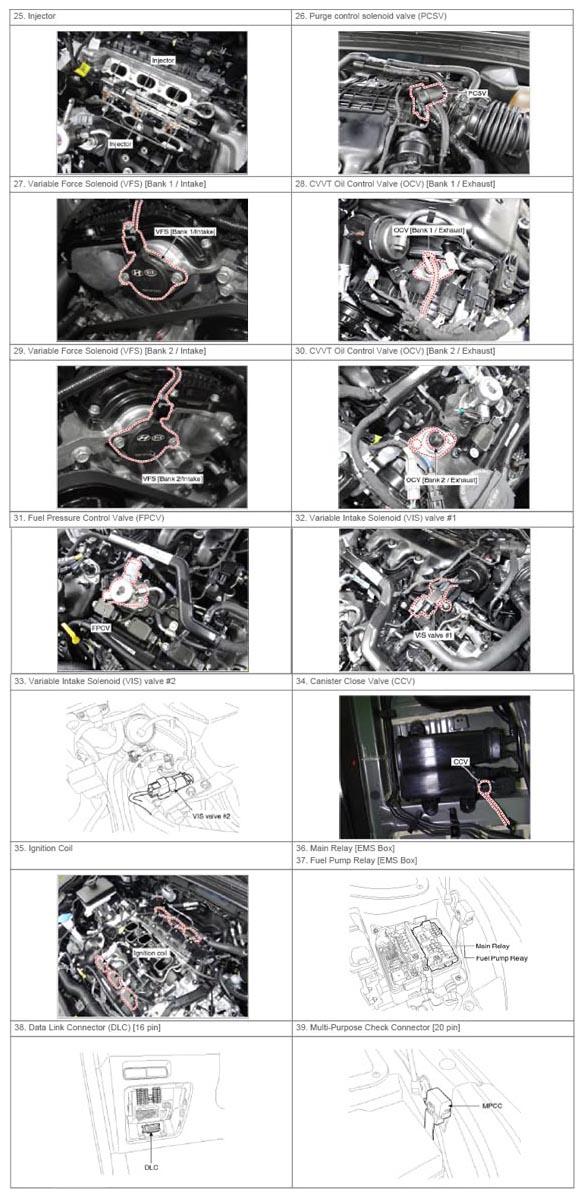

G12885550Courtesy of KIA MOTORS AMERICA, INC.
