Repair Procedures: Removal

Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new TCM.

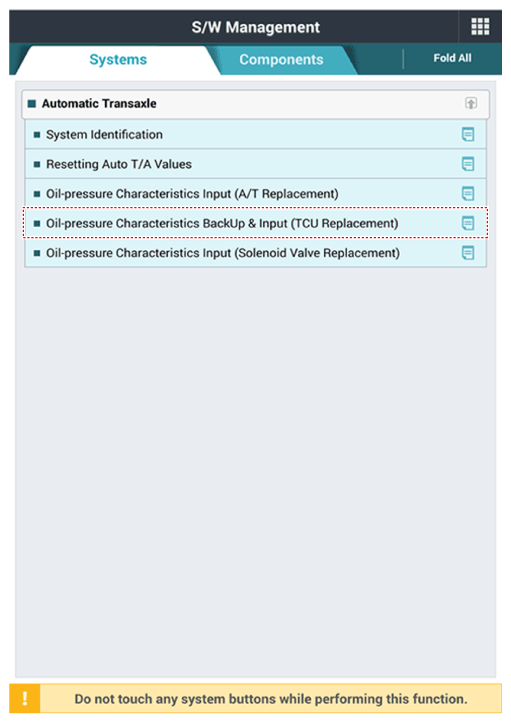

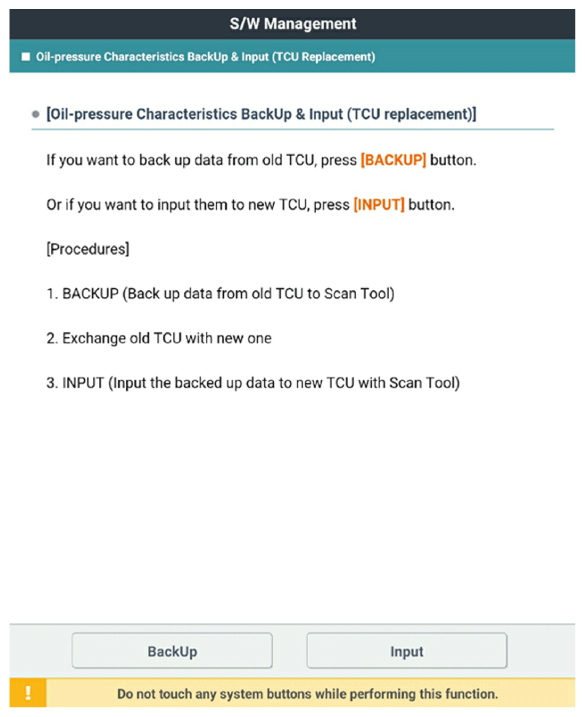

Click the "Oil-pressure Characteristics Backup & Input (TCU Replacement)".

Courtesy of KIA MOTORS AMERICA, INC.

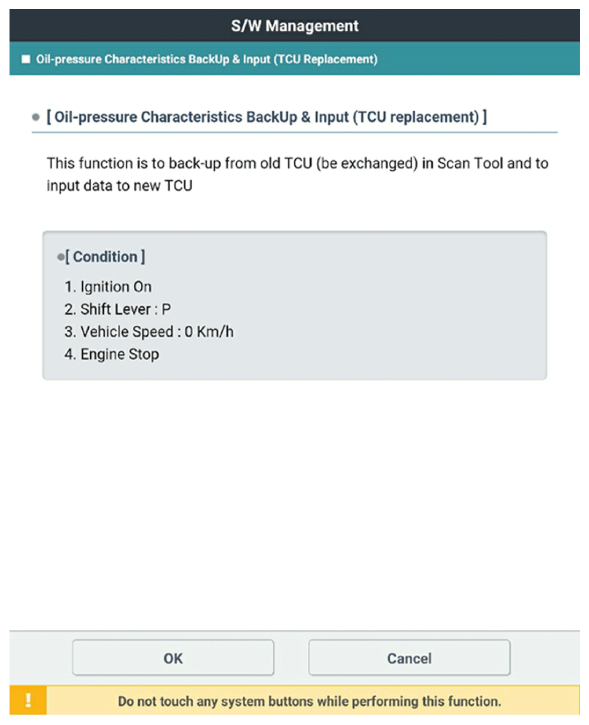

Check the condition and then click the "OK".

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Disconnect the battery negative terminal.
Remove the glove box housing.
(Refer to Body - "GLOVE BOX HOUSING ")
Remove the surround view monitoring unit.
(Refer to Body Electrical System - "SURROUND VIEW MONITORING UNIT ")
Remove the TCM (B) after disconnecting the TCM connector (A).
Tightening torque:

9.8 - 11.8 N.m (0.8 - 1.0 kgf.m, 7.2 - 8.7 lb.ft)
