Section 20 (Transfer Assembly)
>>
Front Wheel Transfer Assembly
>>
Components And Components Location
>>
Components Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components Location
WARNING:
This page is about a different variant/trim than selected.

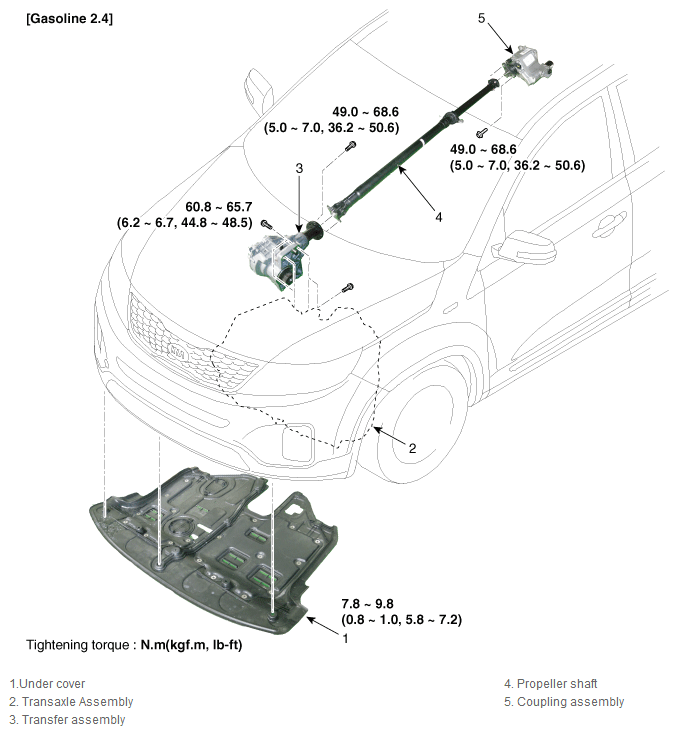

Fig 1: Front Wheel Transfer Assembly Components With Torque Specification (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

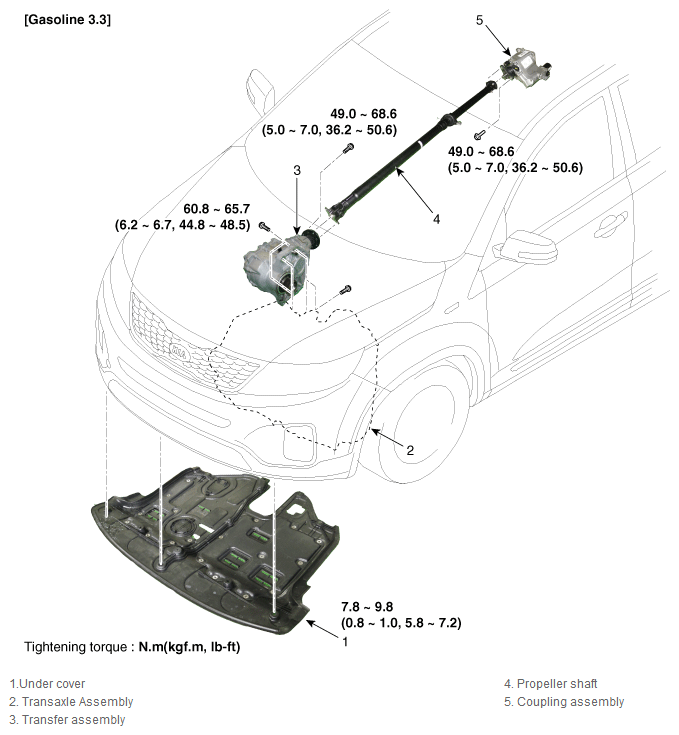

Fig 2: Front Wheel Transfer Assembly Components With Torque Specification (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
