Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.

Remove the liftgate lower trim.
(Refer to Liftgate - "LIFTGATE TRIM ")

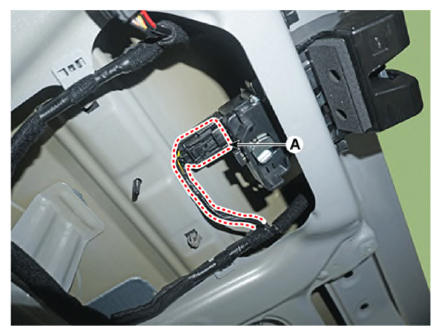

Disconnect the liftgate latch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

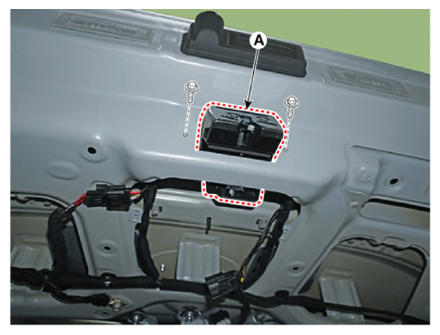

After loosening the mounting bolts, remove the liftgate latch (A).
Tightening torque:

21.6 - 26.5 N.m (2.2 - 2.7 Kgf.m, 15.9 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
NOTE:
- Make sure the liftgate locks/unlocks and opens/closes properly.
- Adjust the liftgate alignment.
- Make sure the connectors are connected in properly.
