Repair Procedures: Adjustment

Move the shift lever to 4th gear.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Body Electrical System - "BATTERY ")
Remove the control cable from the control shaft after removing the snap pins (A).
Remove the select cable (B) and shift cable (C).

Courtesy of KIA MOTORS AMERICA, INC.

Install the control cable.

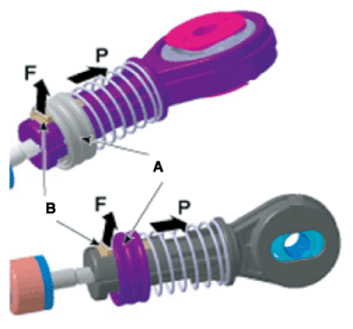

After pulling the holder (A) in the direction of the "P", pull the lock (B) in the direction of the "F".

Courtesy of KIA MOTORS AMERICA, INC.

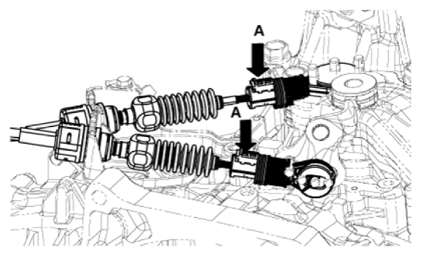

Push the lock (A) after installing the control cable to the control shaft and cable bracket.

Courtesy of KIA MOTORS AMERICA, INC.

Insert the snap pins (A).

Courtesy of KIA MOTORS AMERICA, INC.

Install the battery and battery tray.
(Refer to Body Electrical System - "BATTERY ")
Install the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
