Components Location

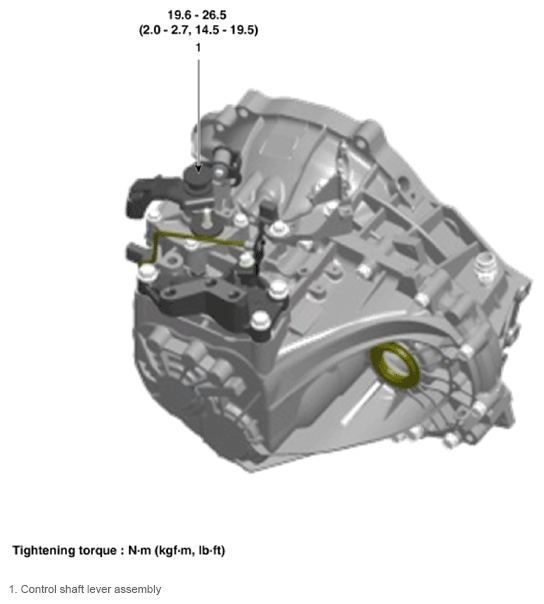

Fig 1: Control Shaft Complete Components Location With Torque Specification
G13283947Courtesy of KIA MOTORS AMERICA, INC.
