Repair Procedures: Removal

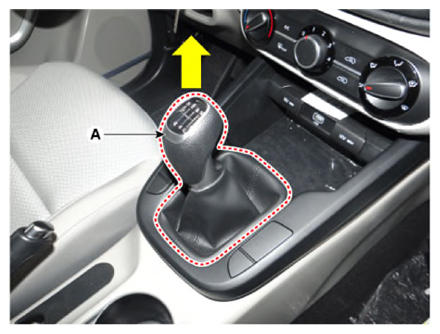

  1. Remove the knob (A) by pulling it in the direction of upward after removing the boots from the console upper cover.
    G13283954Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

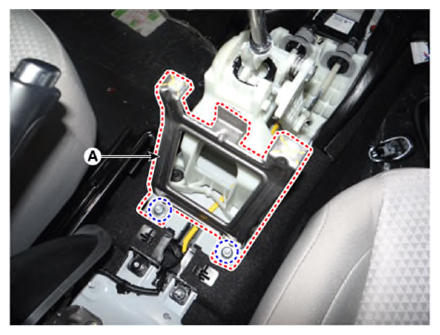

  3. Remove the floor console bracket (A) after loosening the nuts.
    G13283955Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the select cable.

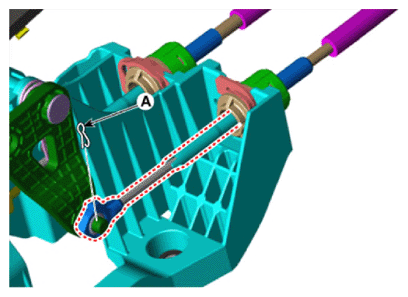

    1. Remove the snap pin (A).
      G13283956Courtesy of KIA MOTORS AMERICA, INC.

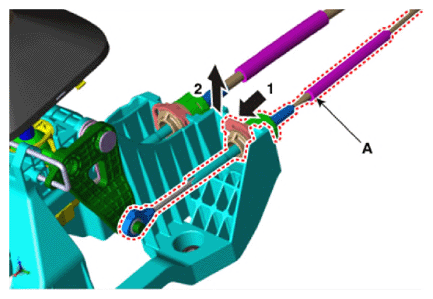

    2. Remove the select cable (A) from the shift lever.
      G13283957Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the shift cable.

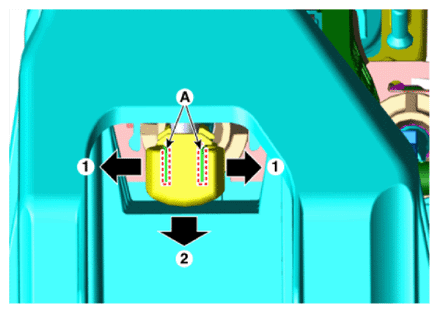

    1. Remove the snap pin (A) in the direction of the arrow.
      G13283958Courtesy of KIA MOTORS AMERICA, INC.

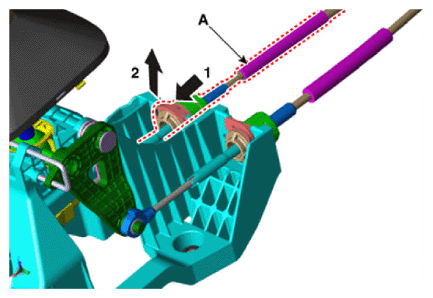

    2. Remove the shift cable (A) from the shift lever.
      G13283959Courtesy of KIA MOTORS AMERICA, INC.

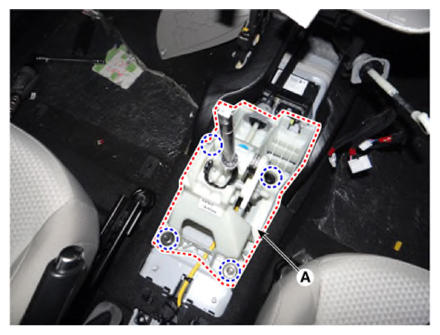

  6. Remove the shift lever assembly (A) after loosening the mounting bolts.

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

    G13283960Courtesy of KIA MOTORS AMERICA, INC.
