Components And Components Location: Components

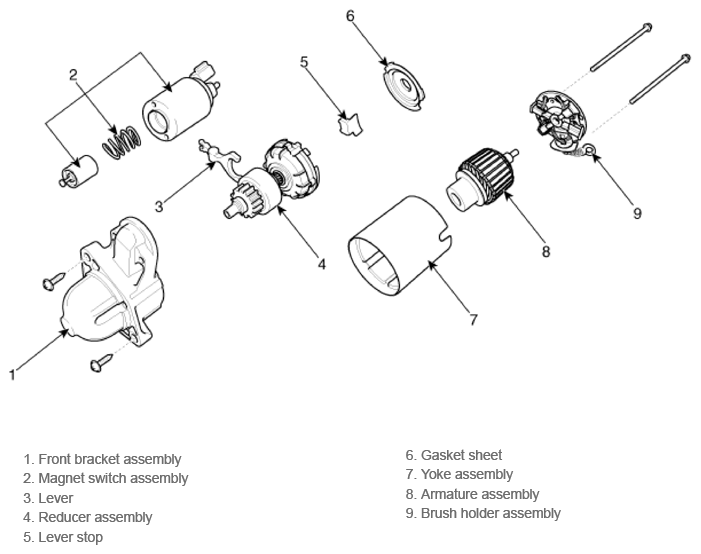

Fig 1: Engine Starter Exploded View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
