Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

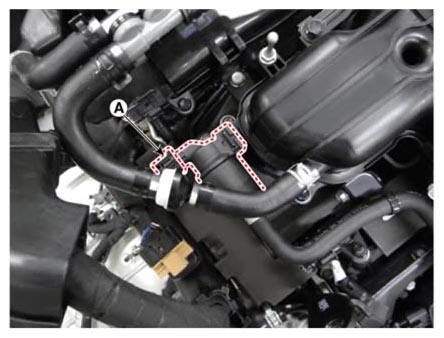

  2. Disconnect the purge control solenoid valve connector (A).
    G12803558Courtesy of KIA MOTORS AMERICA, INC.

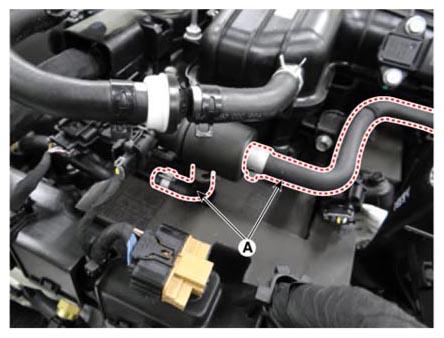

  3. Disconnect the vapor hoses (A) from the purge control solenoid valve.
  4. Remove the valve from the bracket.
    G12803559Courtesy of KIA MOTORS AMERICA, INC.
