Liftgate Lock Module

Remove the liftgate trim.
(Refer to Body - "LIFTGATE TRIM ")

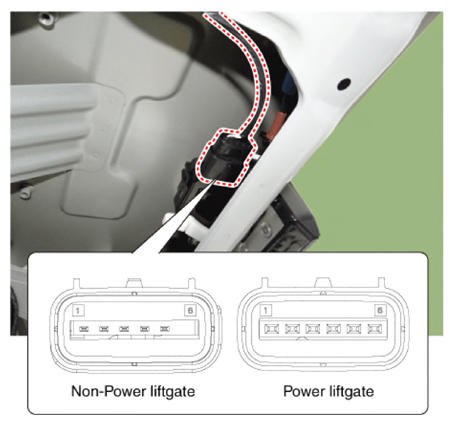

Disconnect the connector from the liftgate latch.

G13312320

Courtesy of KIA MOTORS AMERICA, INC.

[Non-Power Liftgate Lock]

Pin	Function
1	Release motor (+)
2	Full open switch
3	Release motor (-)
4	Ground
5	Full lock switch

[Power Liftgate Lock]

Pin	Function
1	Full lock switch
2	Half lock switch
3	Release motor (+)
4	Release motor (-)
5	Ground
6	Full open switch

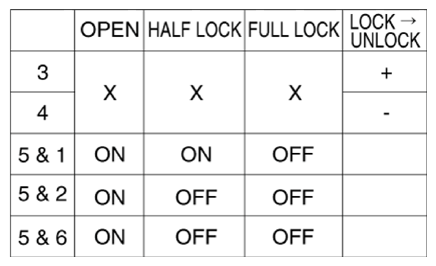

Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.

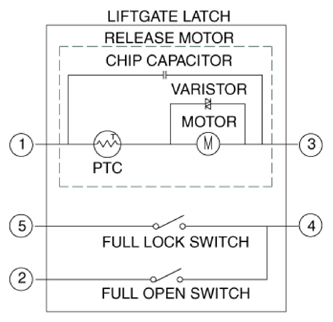

[Non-Power Liftgate Lock]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

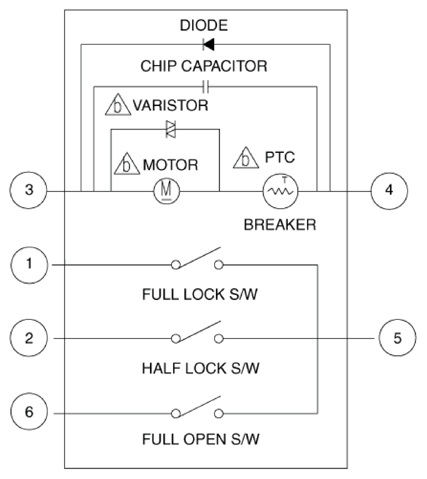

[Power Liftgate Lock]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
