Flow Diagram
>>
Engine Oil Schematics
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

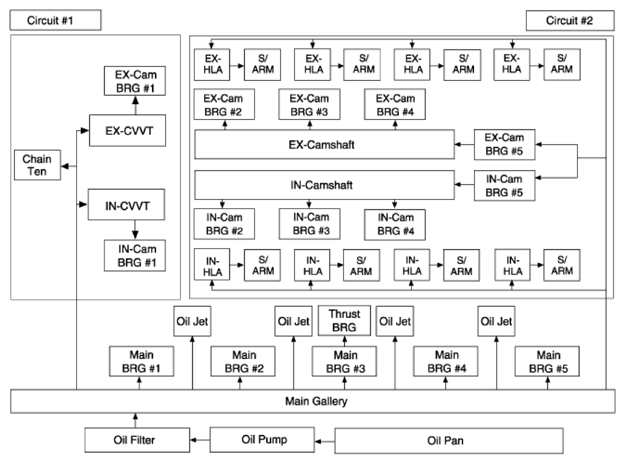

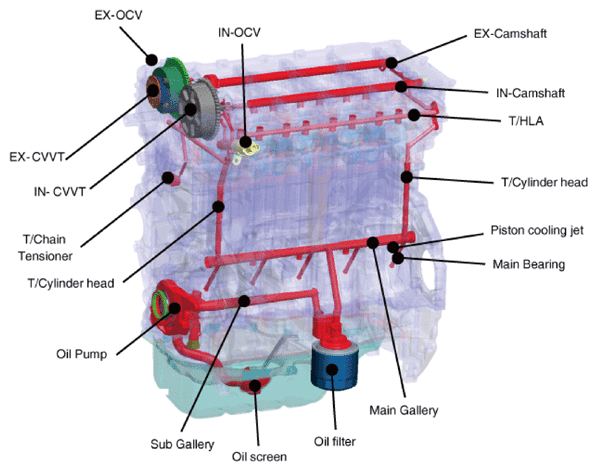

Engine Oil Schematics
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
