Components And Components Location: Components

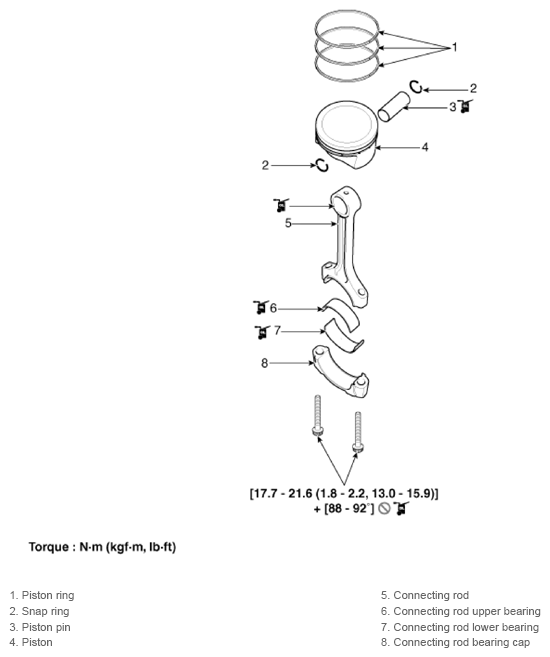

Fig 1: Piston And Connecting Rod Components With Torque Specifications
G13306580Courtesy of KIA MOTORS AMERICA, INC.
