Repair Procedures: Removal
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

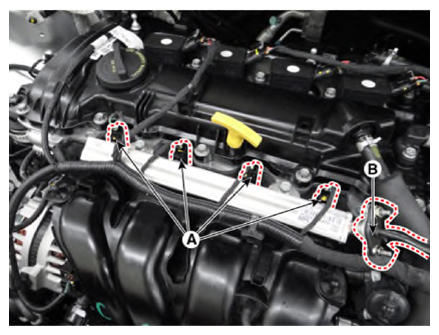

- Disconnect the injector connector (A).
- Remove the installation nut, and then disconnect the fuel feed tube (B).
Delivery pipe installation nut (↔ Fuel feed tube):
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

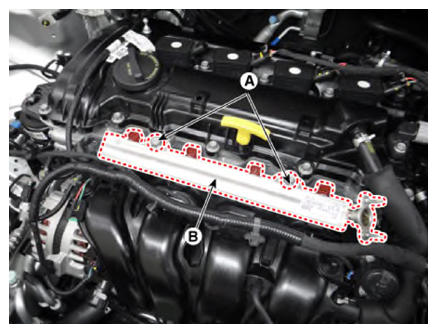

- Remove the installation bolt (A), and then remove the delivery pipe & injector assembly (B) from the engine.
Delivery pipe installation bolt:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

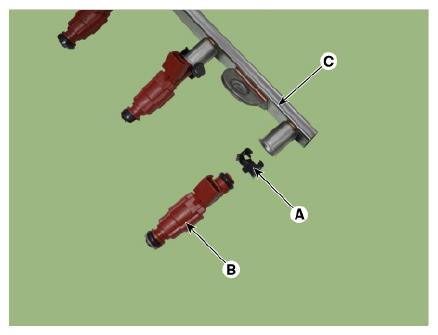

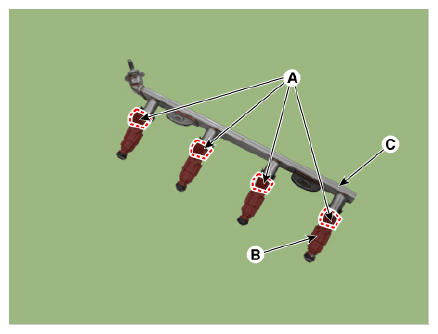

- Remove the fixing clip (A), and then separate the injector (B) from the delivery pipe. (C)
