Component Inspection: Notes

Inspection Condition	Inspection Procedure	Reference

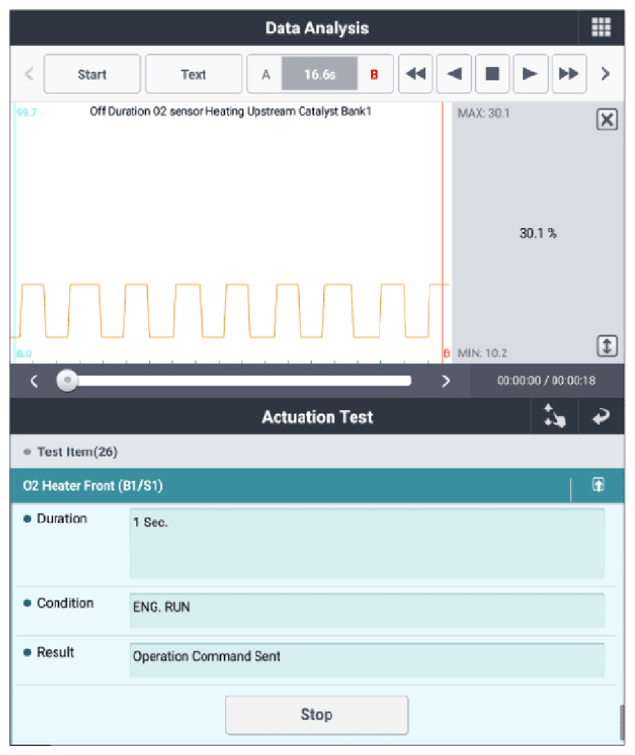

Ignition "ON", engine "OFF". Engine "ON".	Connect KDS to Data Link Connector (DLC). Perform "Actuation Test" of concerned component with KDS.	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
