Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition switch "OFF".
  2. Connect KDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUP & Input (TCU Replacement)" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 9

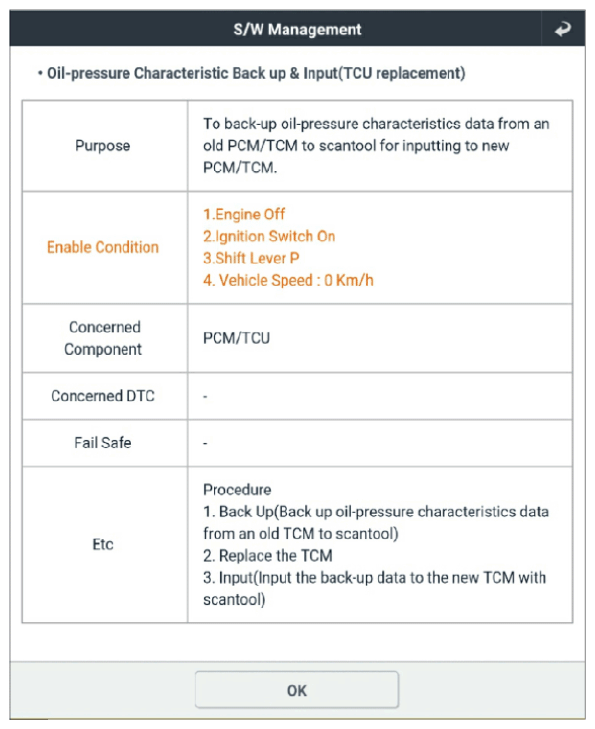

G13302720Courtesy of KIA MOTORS AMERICA, INC.

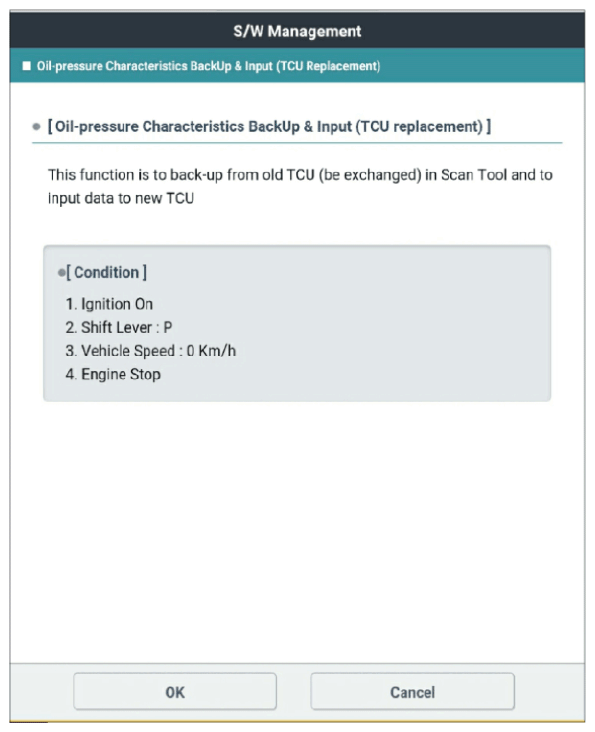

G13302721Courtesy of KIA MOTORS AMERICA, INC.

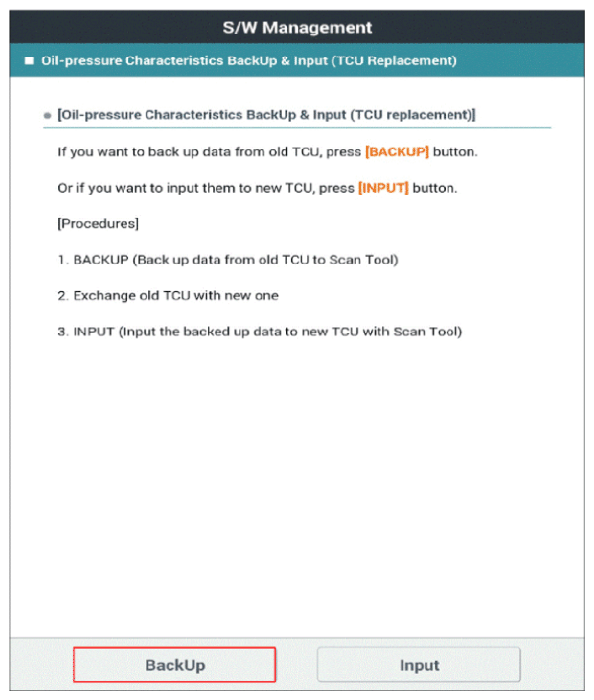

G13302722Courtesy of KIA MOTORS AMERICA, INC.

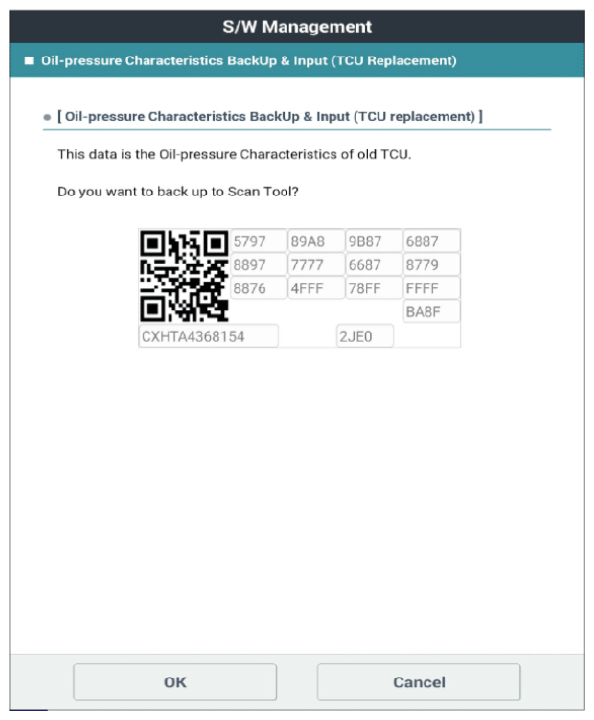

G13302723Courtesy of KIA MOTORS AMERICA, INC.

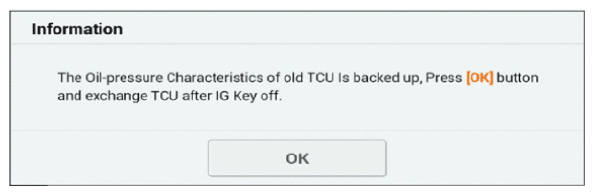

G13302724Courtesy of KIA MOTORS AMERICA, INC.

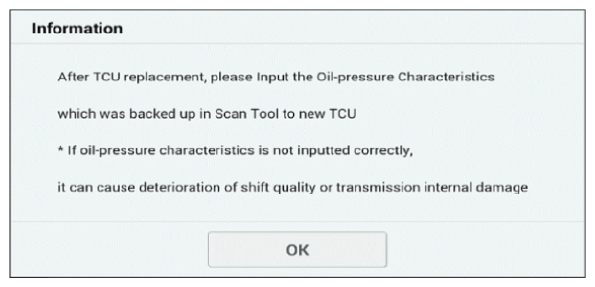

G13302725Courtesy of KIA MOTORS AMERICA, INC.

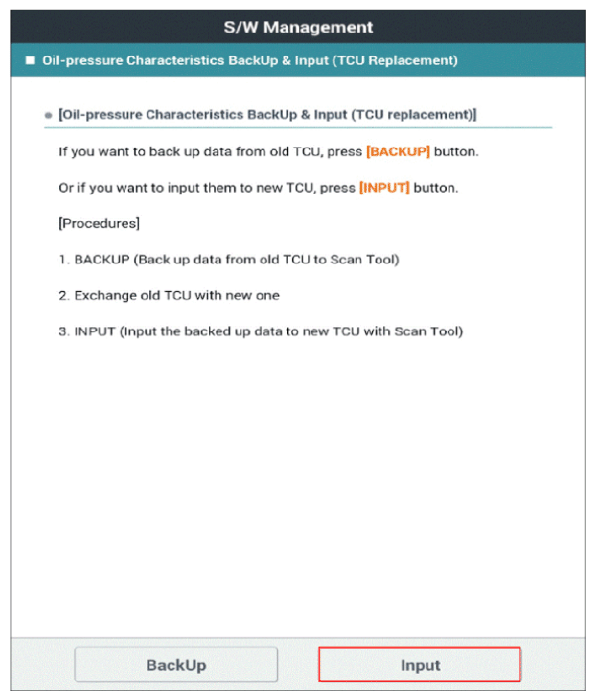

G13302726Courtesy of KIA MOTORS AMERICA, INC.

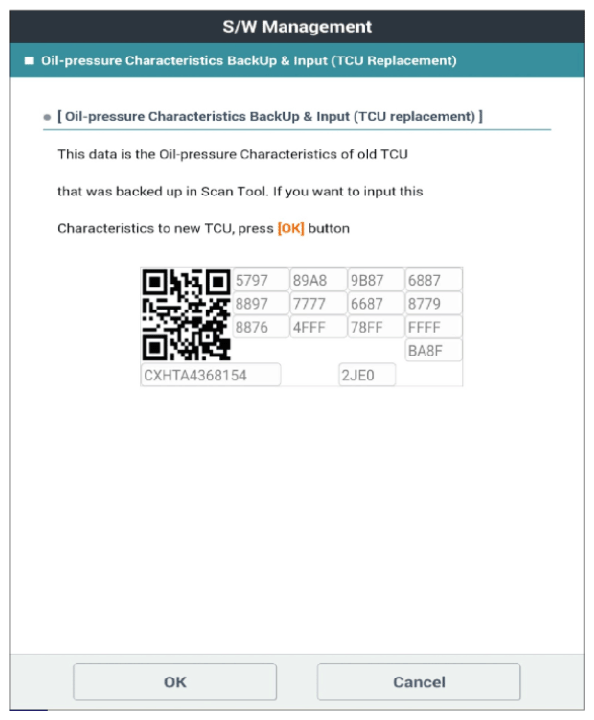

G13302727Courtesy of KIA MOTORS AMERICA, INC.

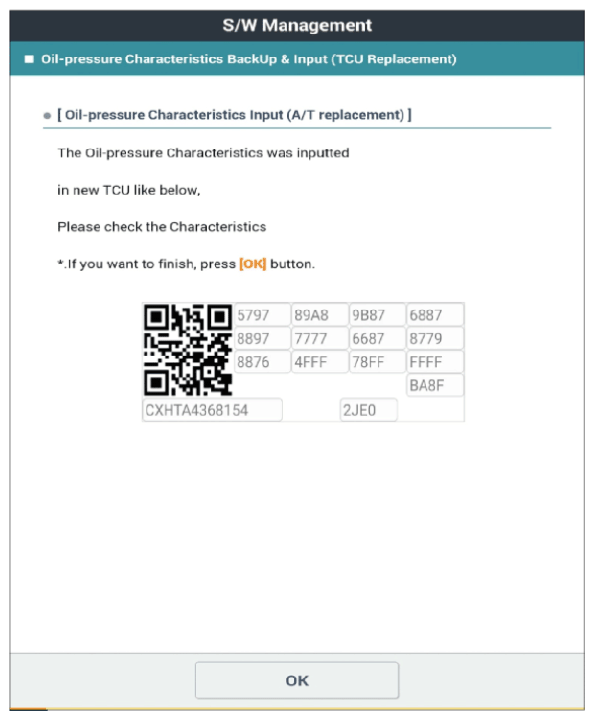

G13302728Courtesy of KIA MOTORS AMERICA, INC.
