Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 8

Vehicle S/W Management

G14565360Courtesy of KIA MOTORS AMERICA, INC.
G14565361Courtesy of KIA MOTORS AMERICA, INC.

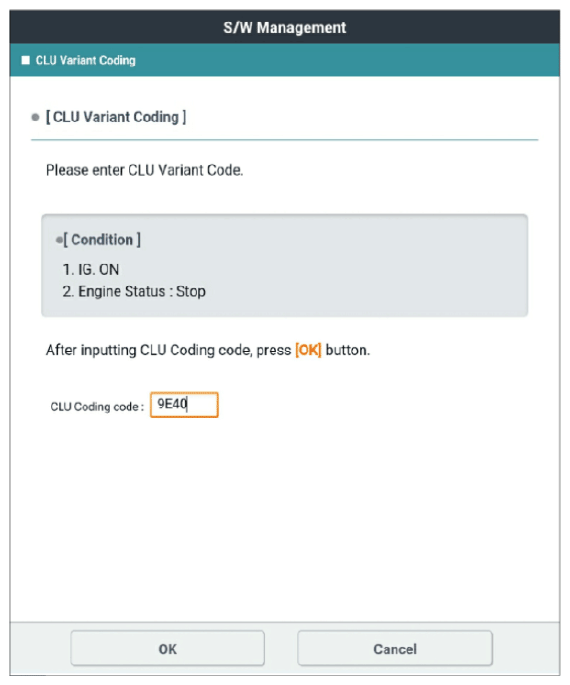

G14565362Courtesy of KIA MOTORS AMERICA, INC.

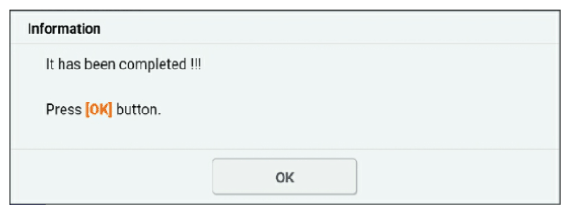

G14565363Courtesy of KIA MOTORS AMERICA, INC.

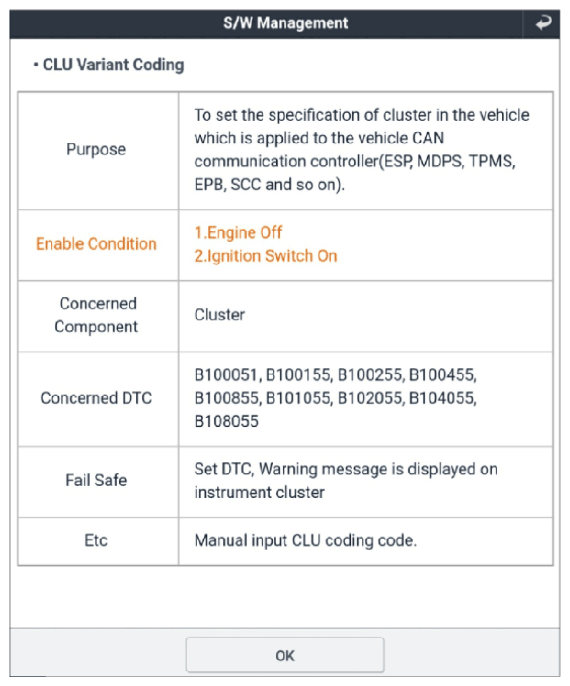

G14565364Courtesy of KIA MOTORS AMERICA, INC.

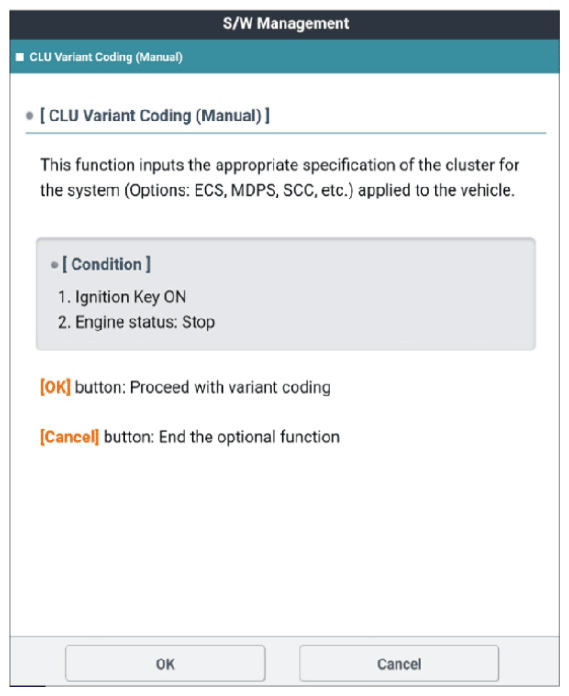

G14565365Courtesy of KIA MOTORS AMERICA, INC.

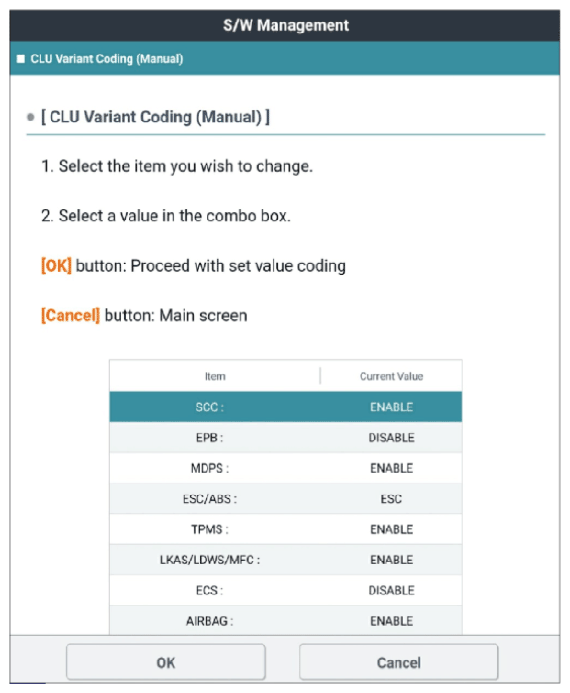

G14565366Courtesy of KIA MOTORS AMERICA, INC.

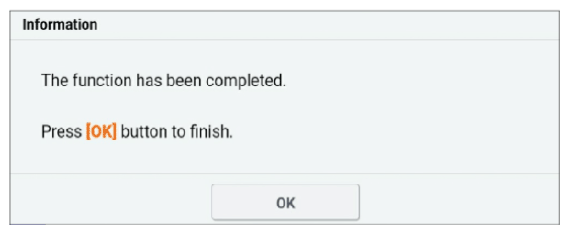

G14565367Courtesy of KIA MOTORS AMERICA, INC.
