Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 8

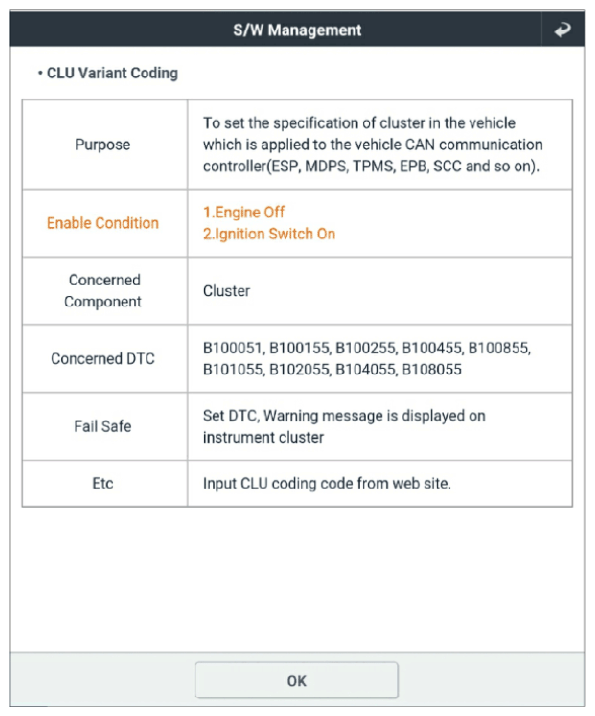

G13301829Courtesy of KIA MOTORS AMERICA, INC.

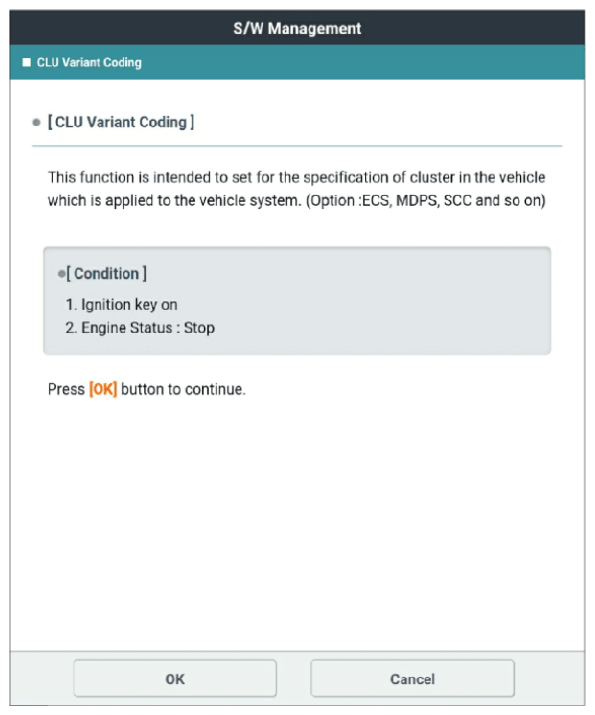

G13301830Courtesy of KIA MOTORS AMERICA, INC.

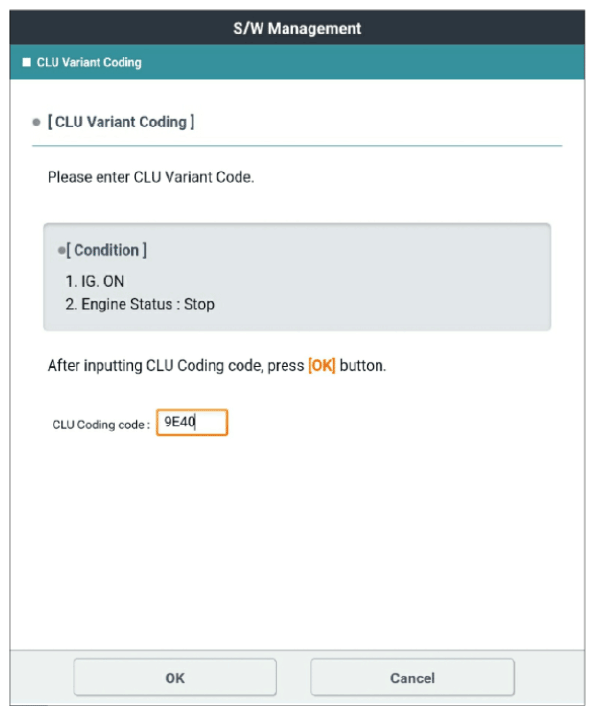

G13301831Courtesy of KIA MOTORS AMERICA, INC.

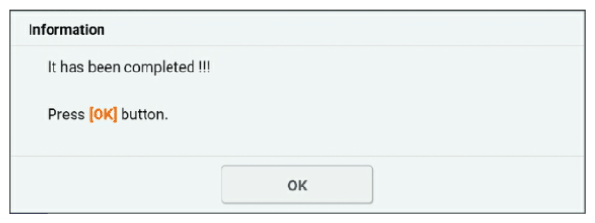

G13301832Courtesy of KIA MOTORS AMERICA, INC.

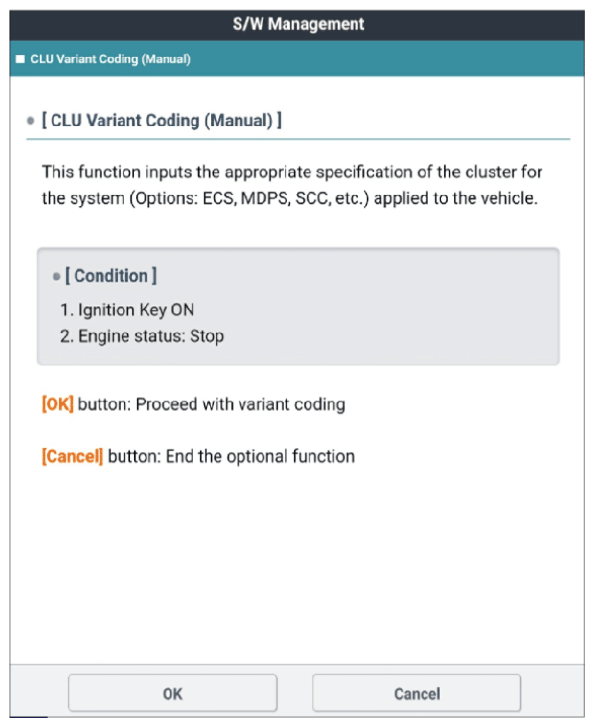

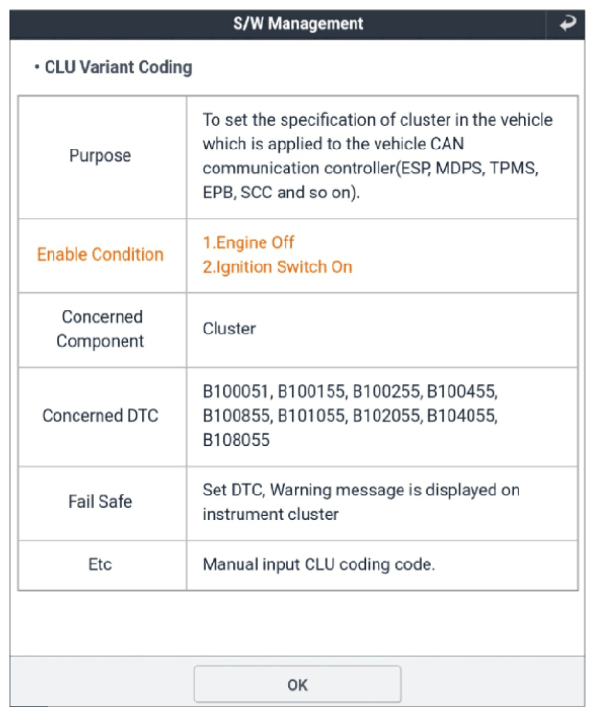

G13301833Courtesy of KIA MOTORS AMERICA, INC.
G13301834Courtesy of KIA MOTORS AMERICA, INC.

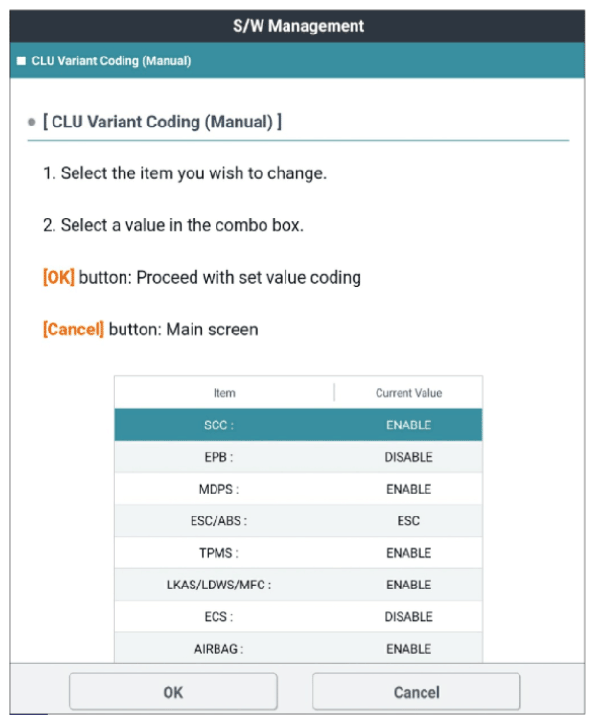

G13301835Courtesy of KIA MOTORS AMERICA, INC.

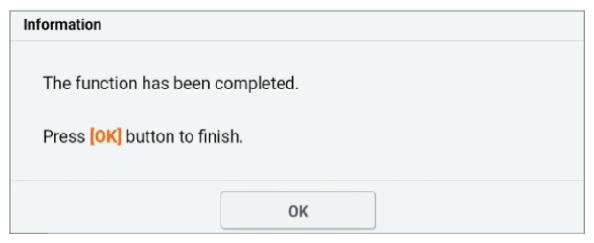

G13301836Courtesy of KIA MOTORS AMERICA, INC.
