Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 8

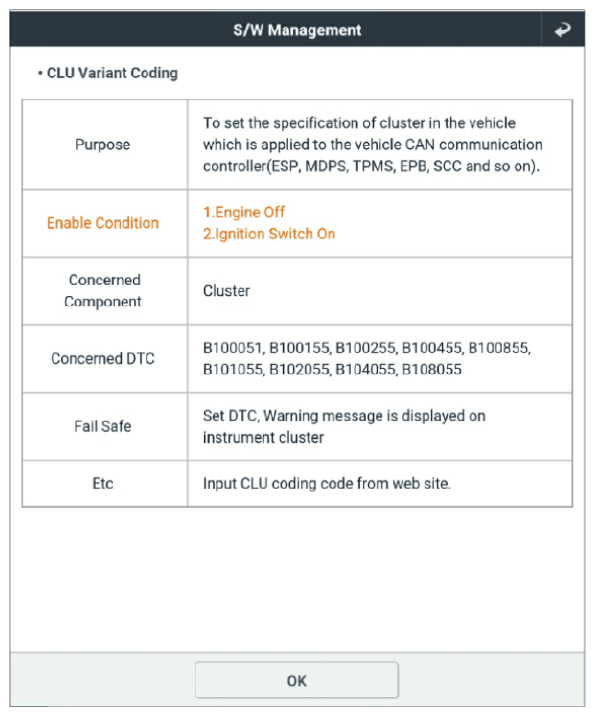

G13301989Courtesy of KIA MOTORS AMERICA, INC.

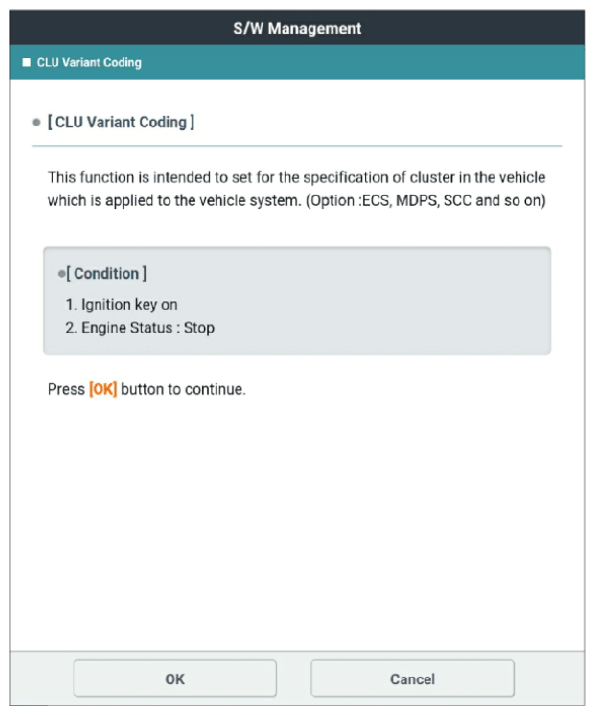

G13301990Courtesy of KIA MOTORS AMERICA, INC.

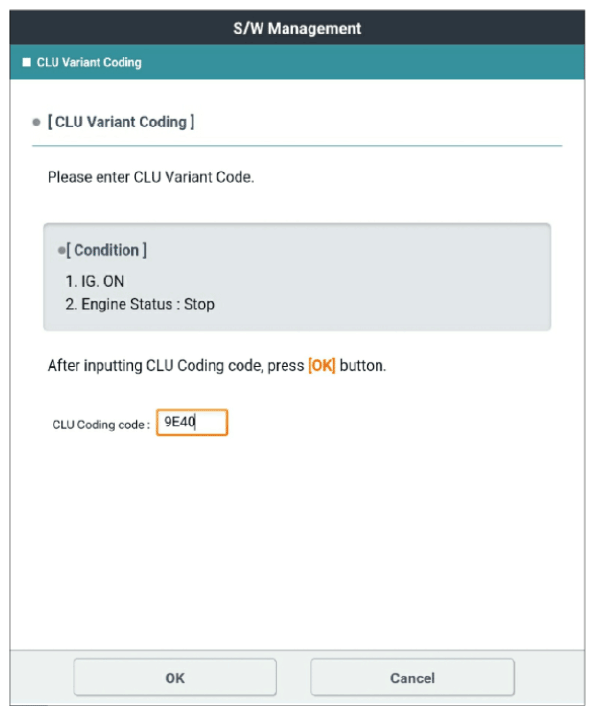

G13301991Courtesy of KIA MOTORS AMERICA, INC.

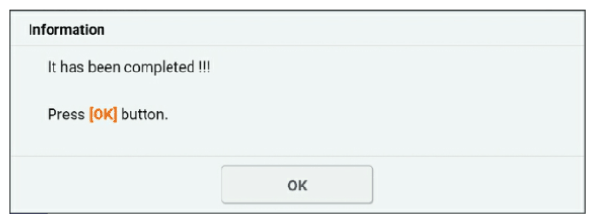

G13301992Courtesy of KIA MOTORS AMERICA, INC.

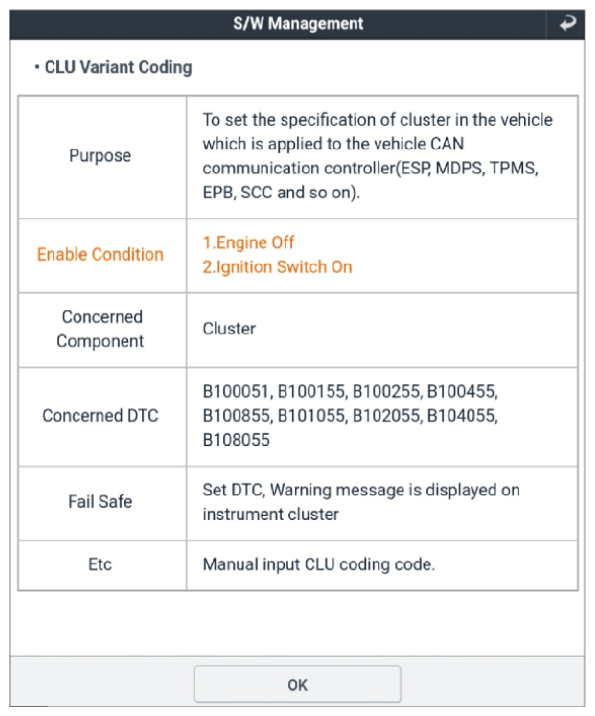

G13301993Courtesy of KIA MOTORS AMERICA, INC.

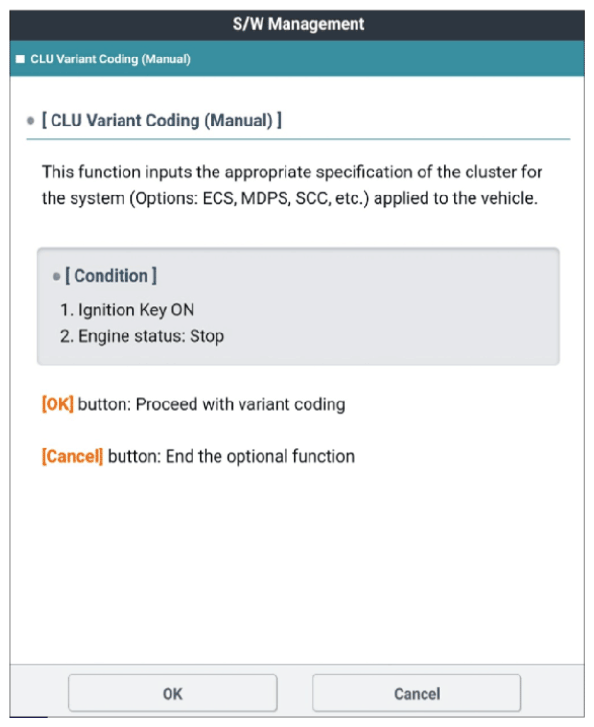

G13301994Courtesy of KIA MOTORS AMERICA, INC.

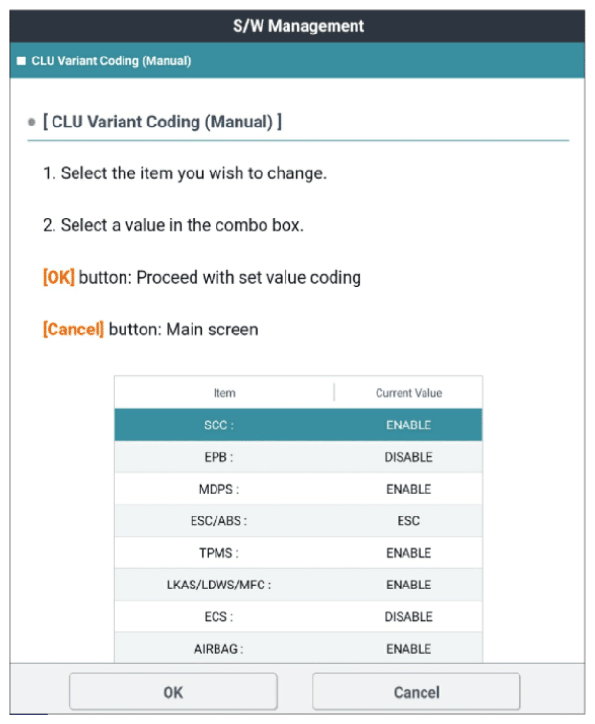

G13301995Courtesy of KIA MOTORS AMERICA, INC.

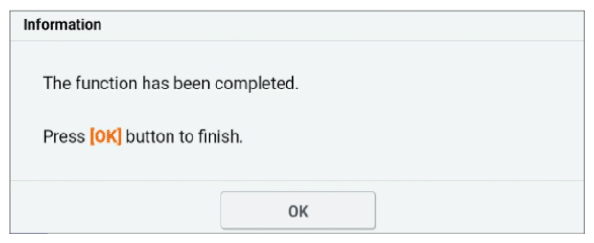

G13301996Courtesy of KIA MOTORS AMERICA, INC.
