Calibration procedure

  1. Check for vehicle alignment and tire pressure for accurate camera calibration.
  2. Windshield must be clean and free of any dirt or object.
  3. Calibration target installation procedure as follows:

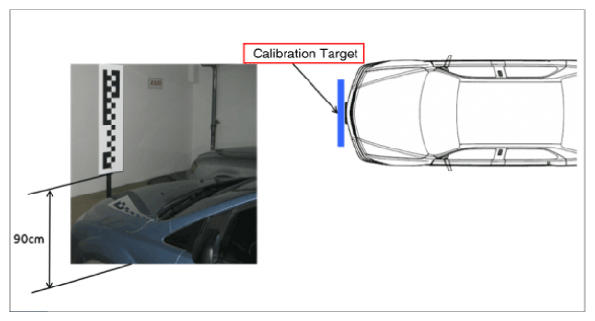

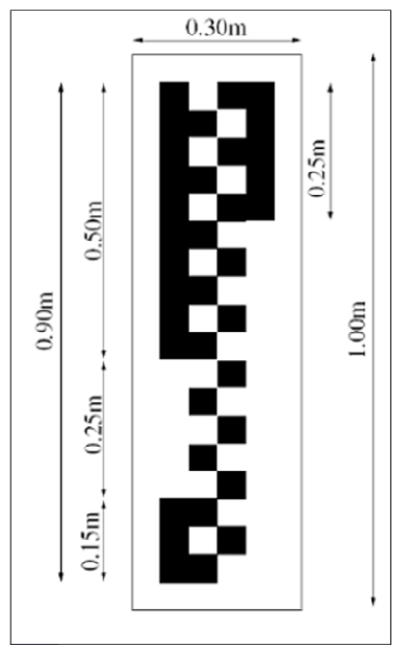

    1. Set the calibration target height approx. 90cm ± 2cm from the ground and align the center of target with center line of vehicle.
    2. Center of target and center of vehicle should be within ±5cm.

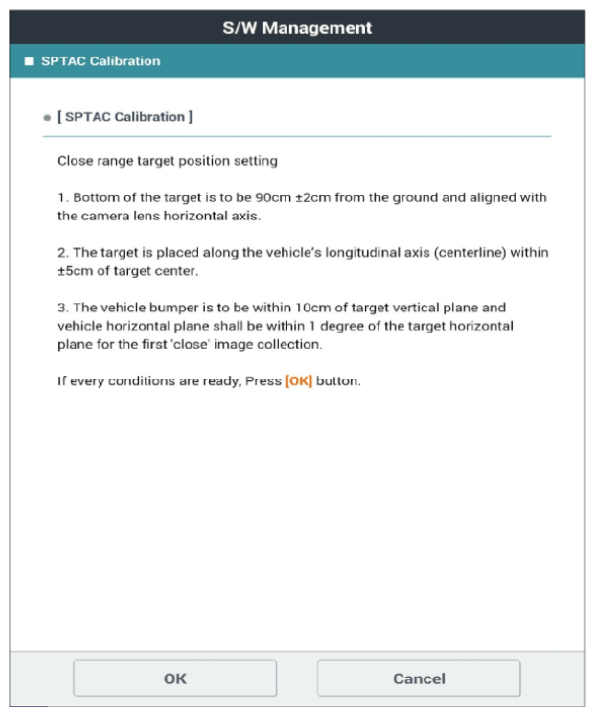

    3. Position the calibration target approx. 0cm from the center of vehicle front wheel. Horizontal line of vehicle and horizontal line of calibration target angle should be within 1°. (Close range target setting)
    4. Perform Distance target setting after performing close target setting.

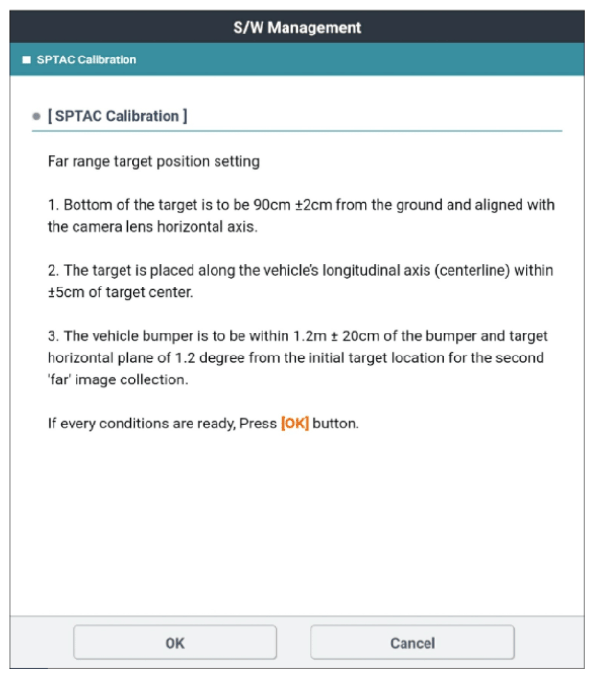

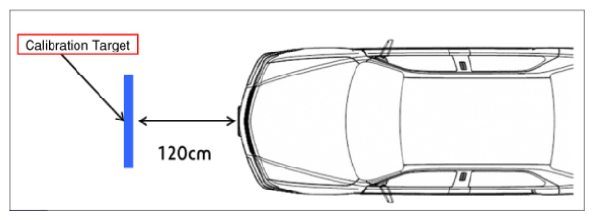

    5. Position the calibration target 1.2 m from the front bumper. Horizontal line of vehicle and horizontal line of calibration target angle should be within 1°. (Far range target setting)
G13294443Courtesy of KIA MOTORS AMERICA, INC.
G13294444Courtesy of KIA MOTORS AMERICA, INC.
G13294445Courtesy of KIA MOTORS AMERICA, INC.
G13294446Courtesy of KIA MOTORS AMERICA, INC.
G13294447Courtesy of KIA MOTORS AMERICA, INC.
G13294448Courtesy of KIA MOTORS AMERICA, INC.
G13294449Courtesy of KIA MOTORS AMERICA, INC.
G13294450Courtesy of KIA MOTORS AMERICA, INC.

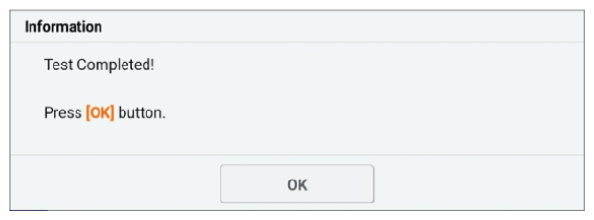

G13294451Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON" and engine "OFF".
  1. Connect KDS to Data Link Connector (DLC).

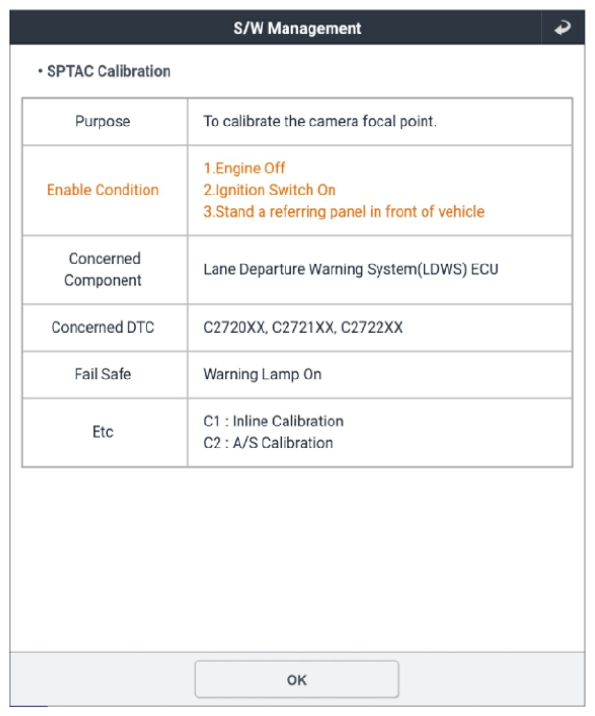

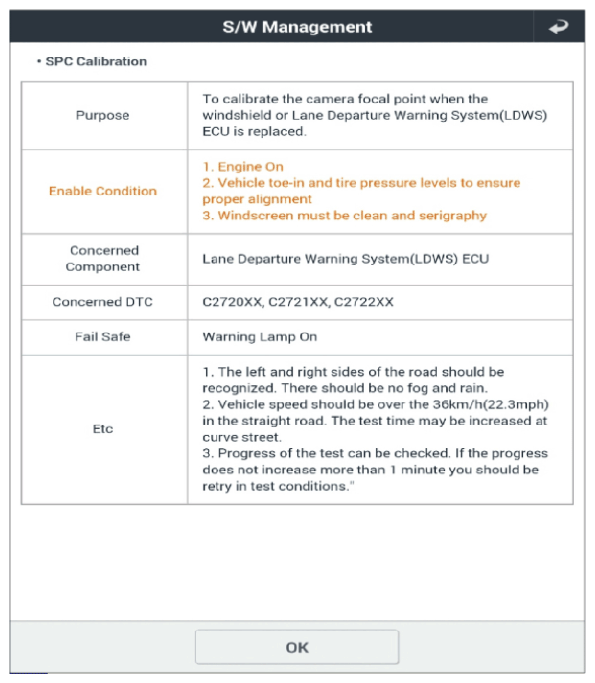

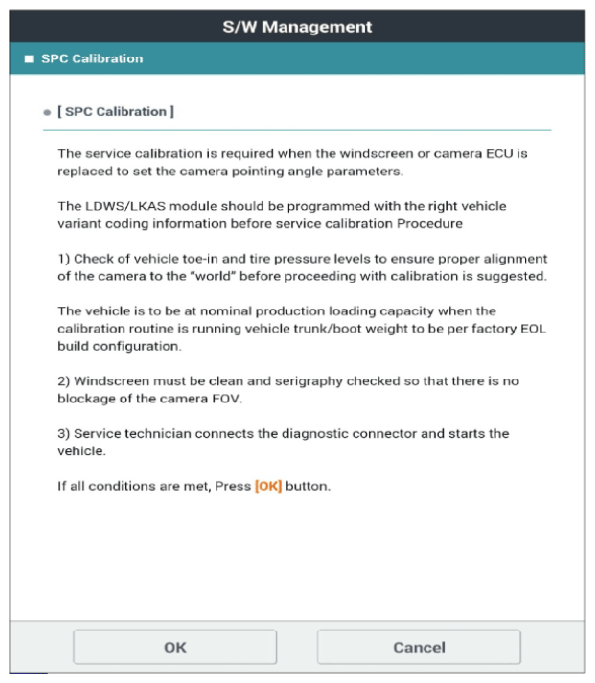

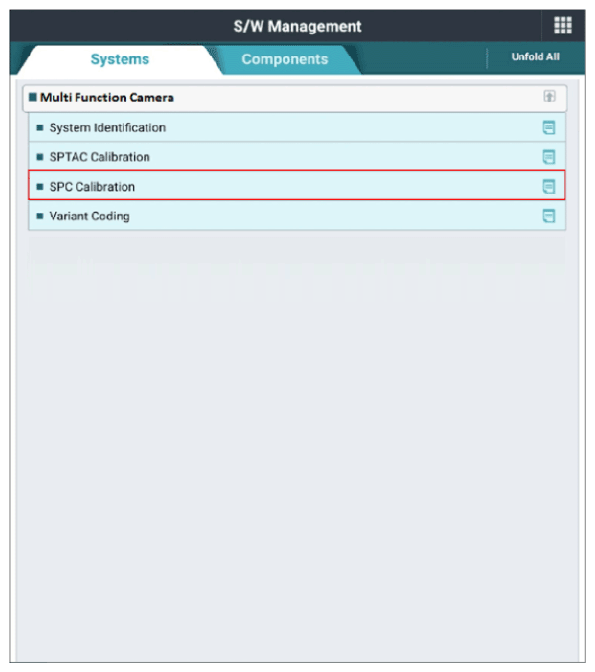

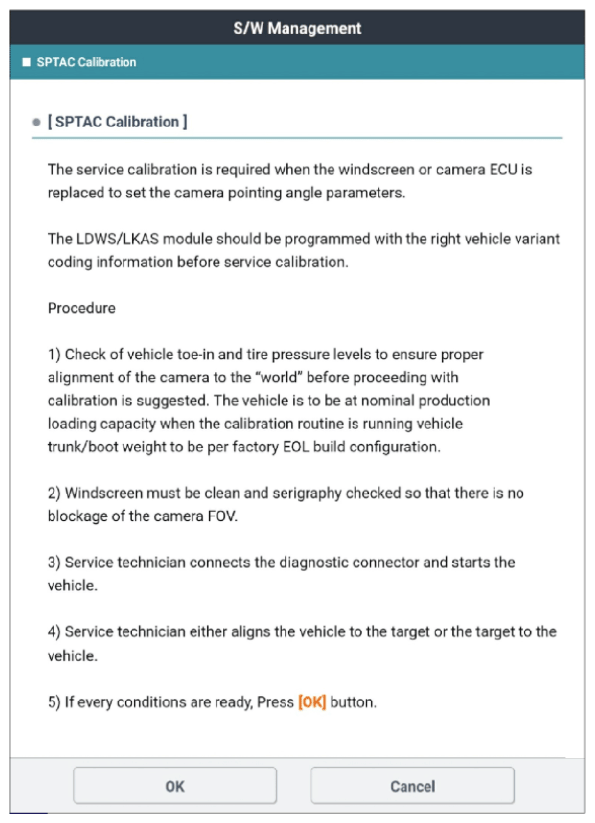

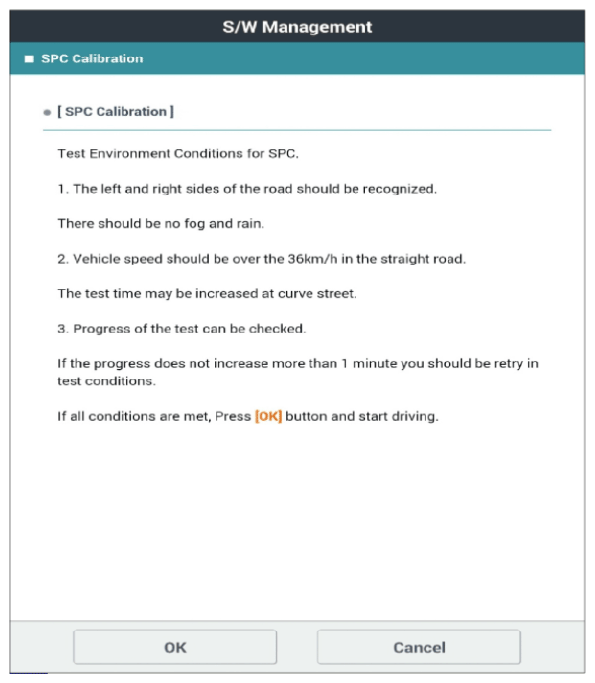

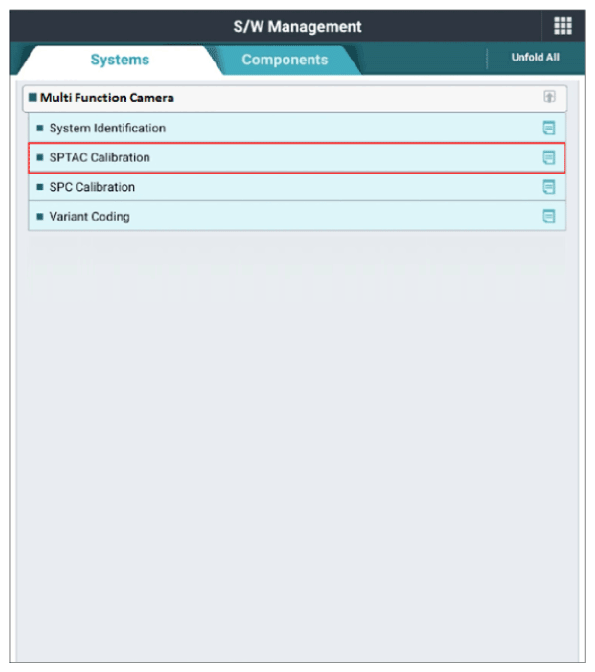

  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5
G13294452Courtesy of KIA MOTORS AMERICA, INC.
G13294453Courtesy of KIA MOTORS AMERICA, INC.
G13294454Courtesy of KIA MOTORS AMERICA, INC.
G13294455Courtesy of KIA MOTORS AMERICA, INC.
G13294456Courtesy of KIA MOTORS AMERICA, INC.
