Calibration procedure

  1. Check for vehicle alignment and tire pressure for accurate camera calibration.
  2. Windshield must be clean and free of any dirt or object.

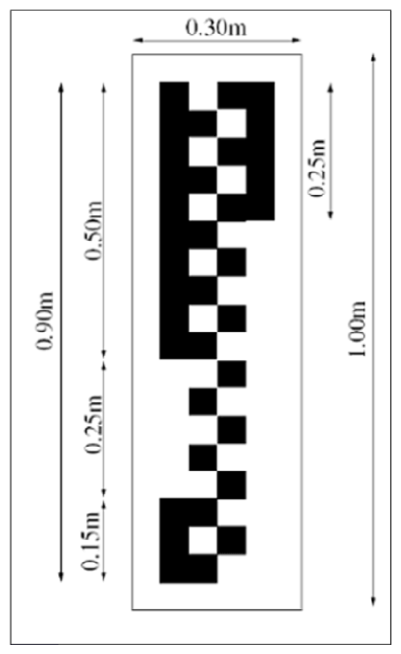

  3. Calibration target installation procedure as follows:

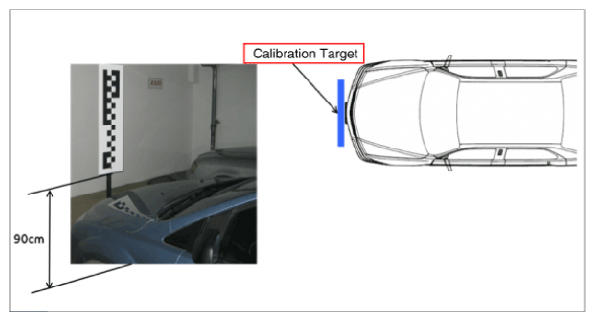

    1. Set the calibration target height approx. 90cm ± 2cm from the ground and align the center of target with center line of vehicle.
    2. Center of target and center of vehicle should be within ±5cm.

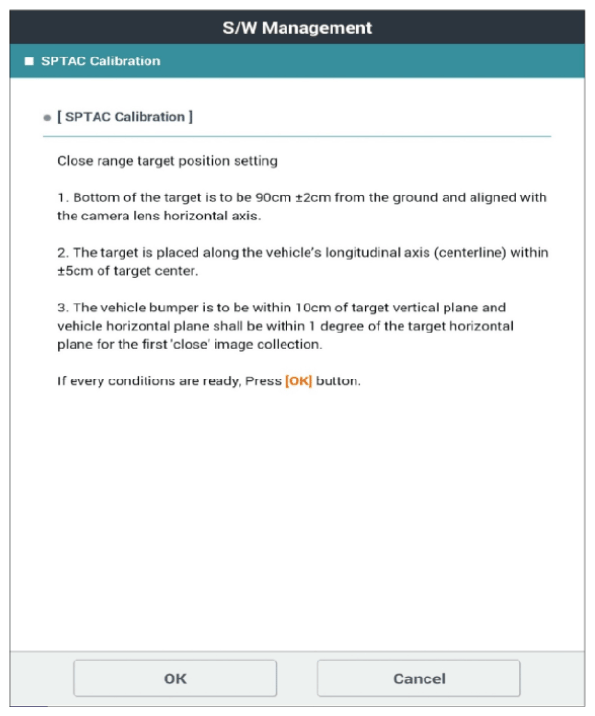

    3. Position the calibration target approx. 0cm from the center of vehicle front wheel. Horizontal line of vehicle and horizontal line of calibration target angle should be within 1°. (Close range target setting)
    4. Perform Distance target setting after performing close target setting.

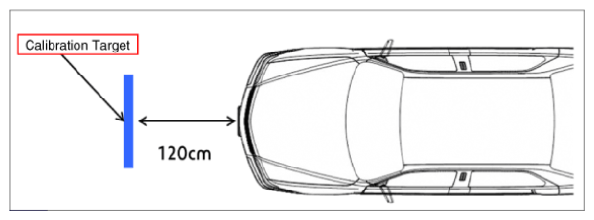

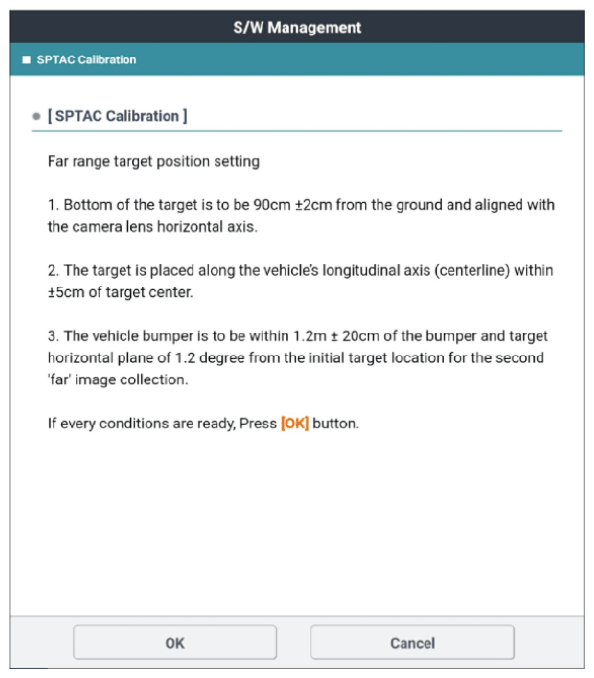

    5. Position the calibration target 1.2 m from the front bumper. Horizontal line of vehicle and horizontal line of calibration target angle should be within 1°. (Far range target setting)
G13294468Courtesy of KIA MOTORS AMERICA, INC.
G13294469Courtesy of KIA MOTORS AMERICA, INC.
G13294470Courtesy of KIA MOTORS AMERICA, INC.
G13294471Courtesy of KIA MOTORS AMERICA, INC.
G13294472Courtesy of KIA MOTORS AMERICA, INC.
G13294473Courtesy of KIA MOTORS AMERICA, INC.
G13294474Courtesy of KIA MOTORS AMERICA, INC.
G13294475Courtesy of KIA MOTORS AMERICA, INC.
G13294476Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON" and engine "OFF".
  1. Connect KDS to Data Link Connector (DLC).

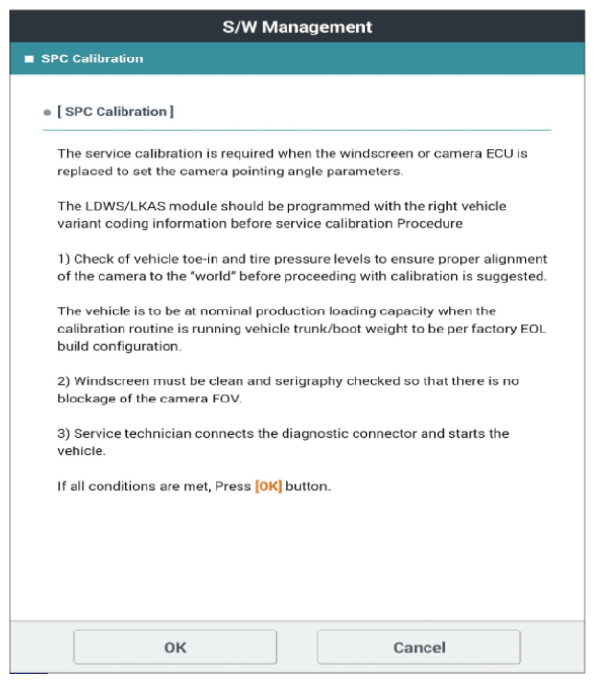

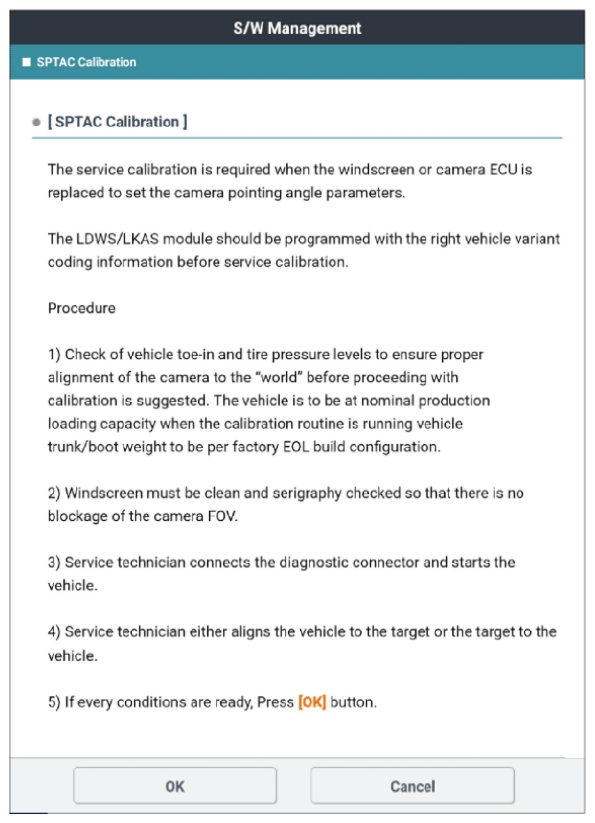

  2. Perform "Vehicle S/W Management" of concerned component with KDS.

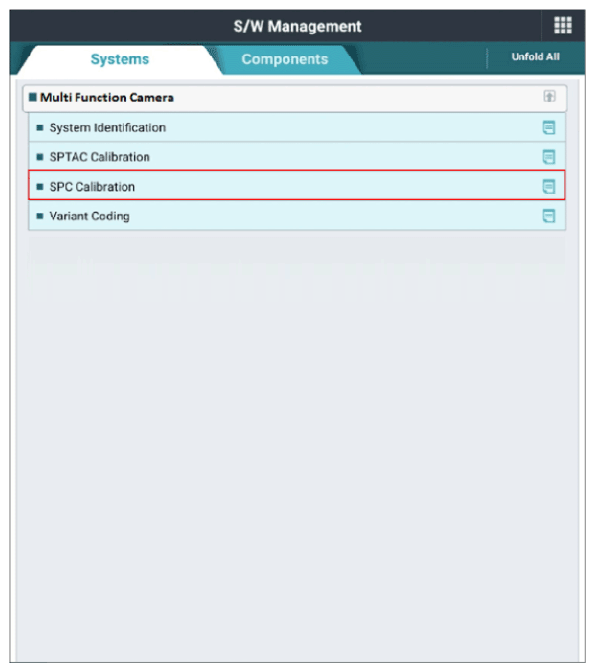

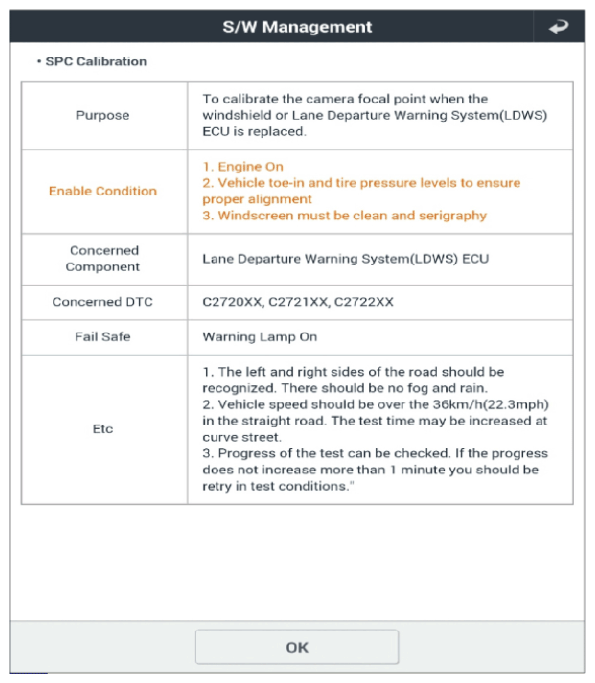

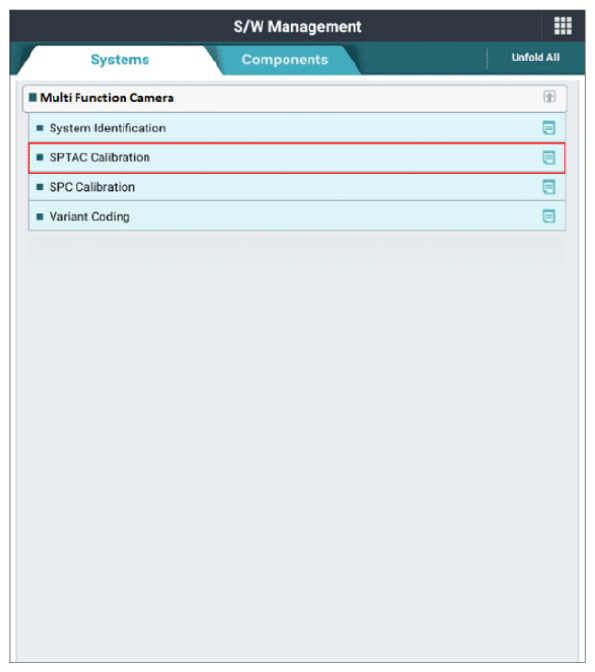

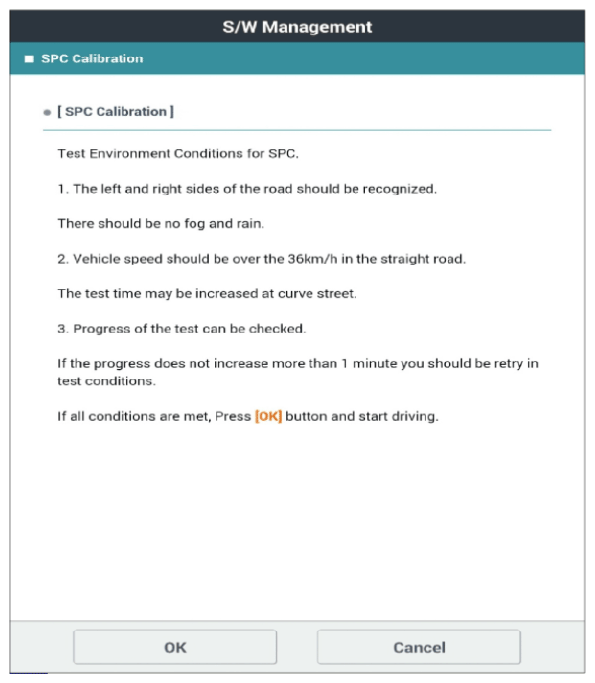

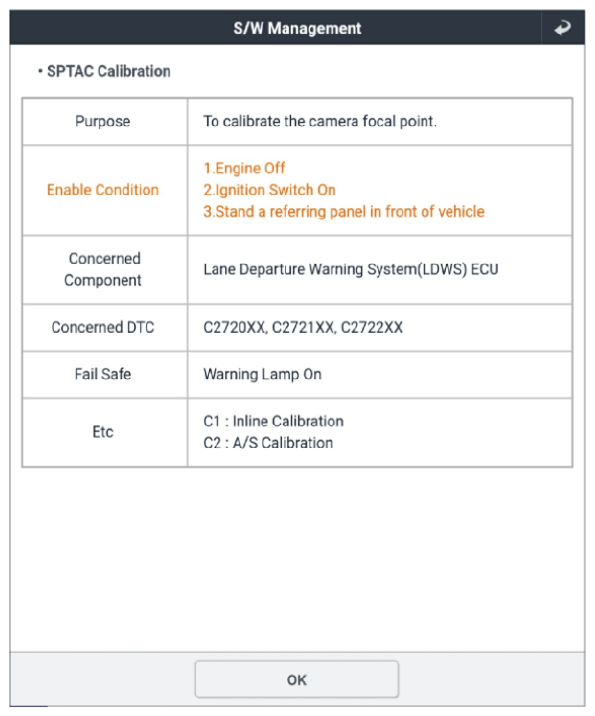

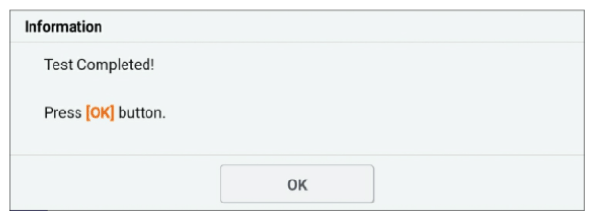

 Fig.1 to 5
