Smart Key Code Saving

  1. Connect the VCI n of KDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on KDS.

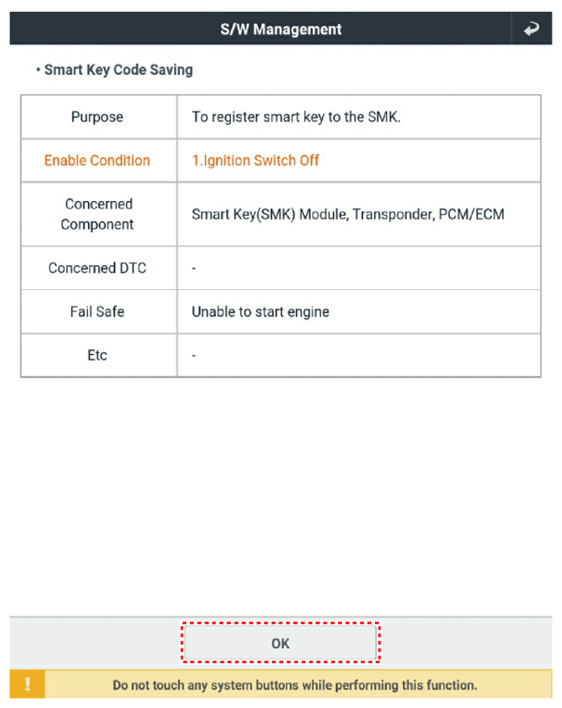

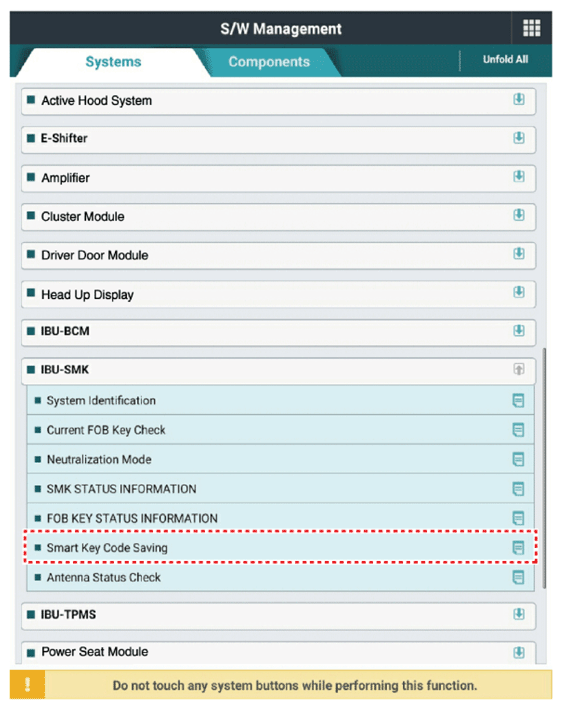

  2. Select the vehicle model and then do "Smart key code saving".
    G13306278Courtesy of KIA MOTORS AMERICA, INC.
    G13306279Courtesy of KIA MOTORS AMERICA, INC.

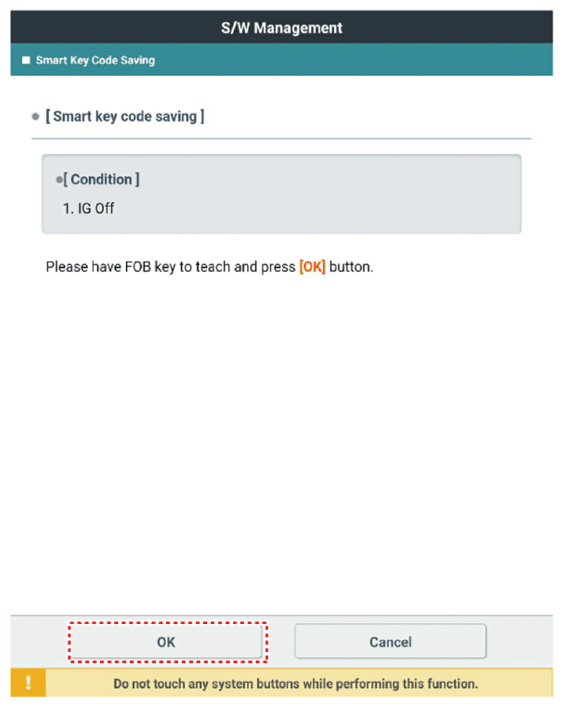

  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.
    G13306280Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.

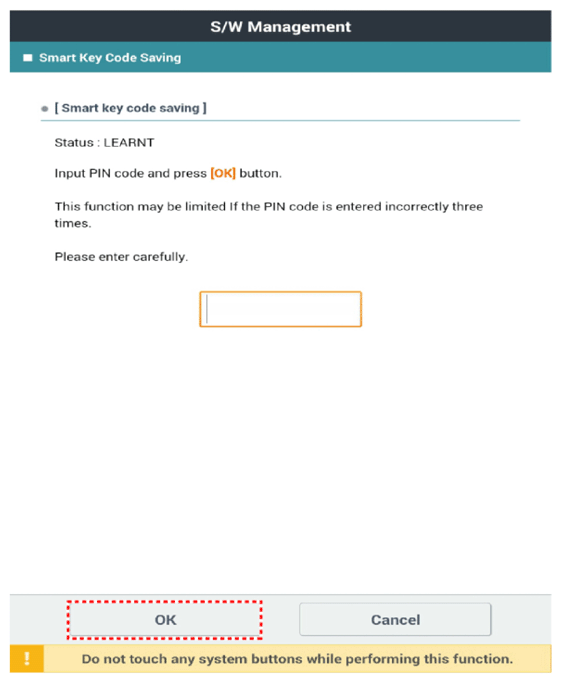

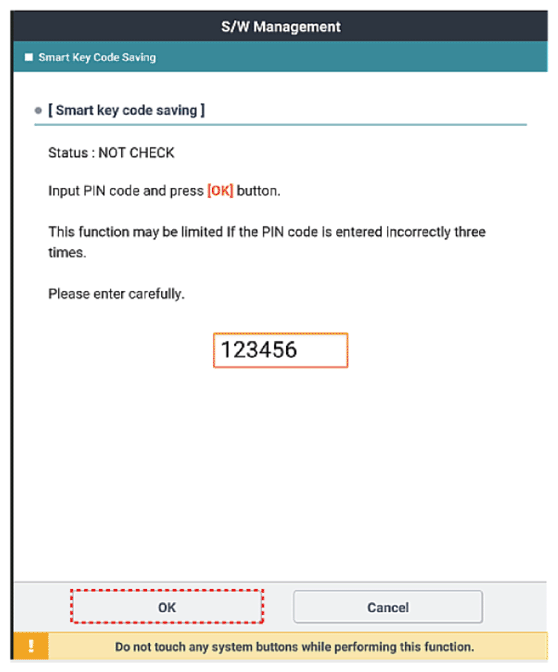

  5. Input the "Pin code" for first key teaching.
    G13306281Courtesy of KIA MOTORS AMERICA, INC.
    G13306282Courtesy of KIA MOTORS AMERICA, INC.
    G13306283Courtesy of KIA MOTORS AMERICA, INC.

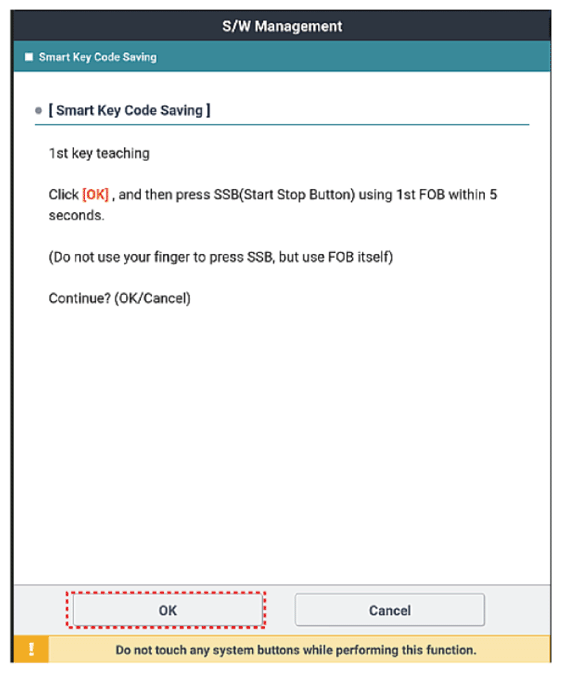

  6. Confirm the message "First key teaching completed".
    G13306284Courtesy of KIA MOTORS AMERICA, INC.

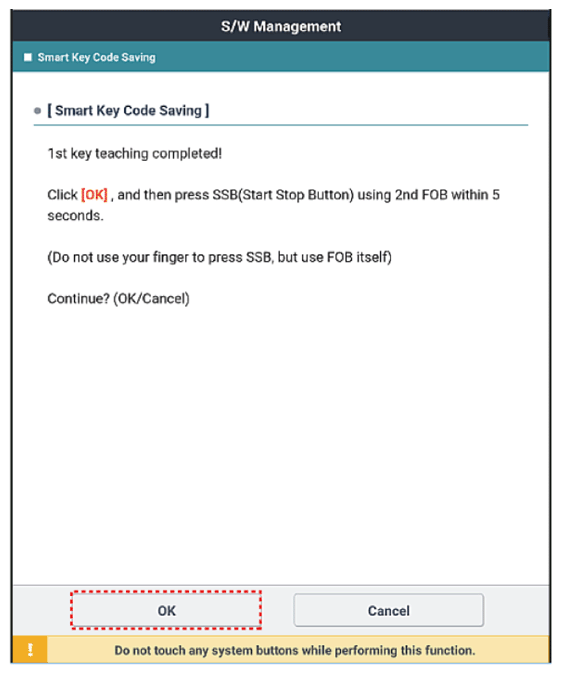

  7. Press the SSB with smart key within 5 sec after pressing "OK".
    G13306285Courtesy of KIA MOTORS AMERICA, INC.
  8. Confirm the message "Second key teaching completed".
    G13306286Courtesy of KIA MOTORS AMERICA, INC.

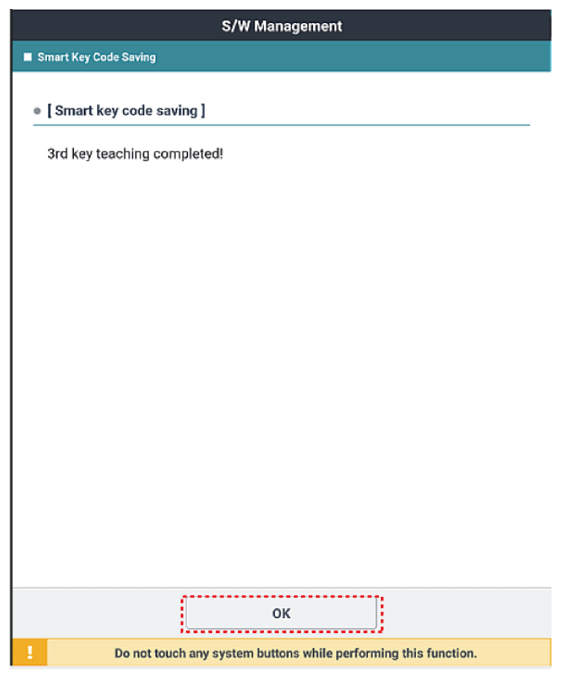

    G13306287Courtesy of KIA MOTORS AMERICA, INC.
  9. Then the screen will be shown as below when key teaching process is completed.
    G13306288Courtesy of KIA MOTORS AMERICA, INC.
