Repair Procedures: Removal: RH
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal.
NOTE:
After disconnecting the cables, wait at least 30 seconds.

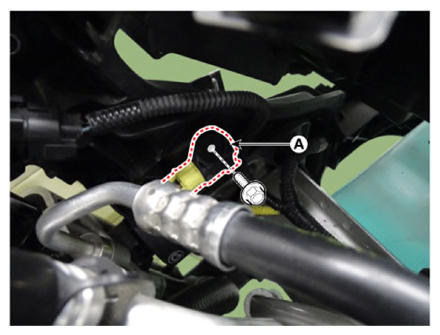

- Loosen the bolt and then remove the front impact sensor (A).
Tightening torque:
8.8 - 9.8 N°m (0.9 - 1.0 kgf°m, 6.5 - 7.2 lb°ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|

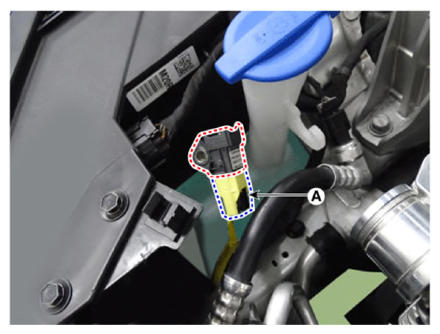

- Disconnect the front impact sensor connector (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
