Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 8

Vehicle S/W Management

G14565540Courtesy of KIA MOTORS AMERICA, INC.
G14565541Courtesy of KIA MOTORS AMERICA, INC.

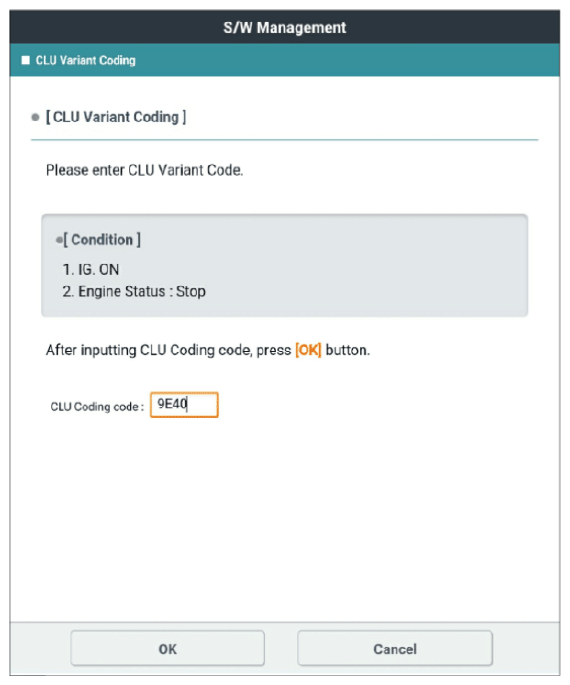

G14565542Courtesy of KIA MOTORS AMERICA, INC.

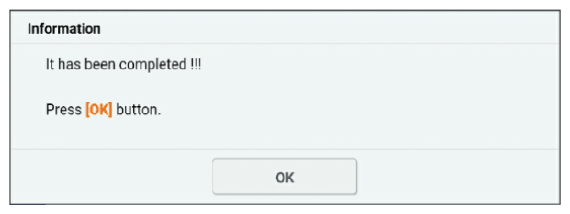

G14565543Courtesy of KIA MOTORS AMERICA, INC.

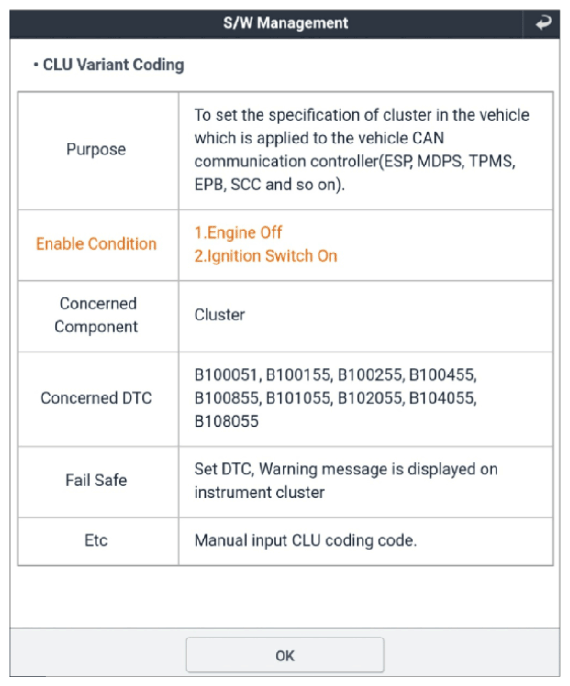

G14565544Courtesy of KIA MOTORS AMERICA, INC.

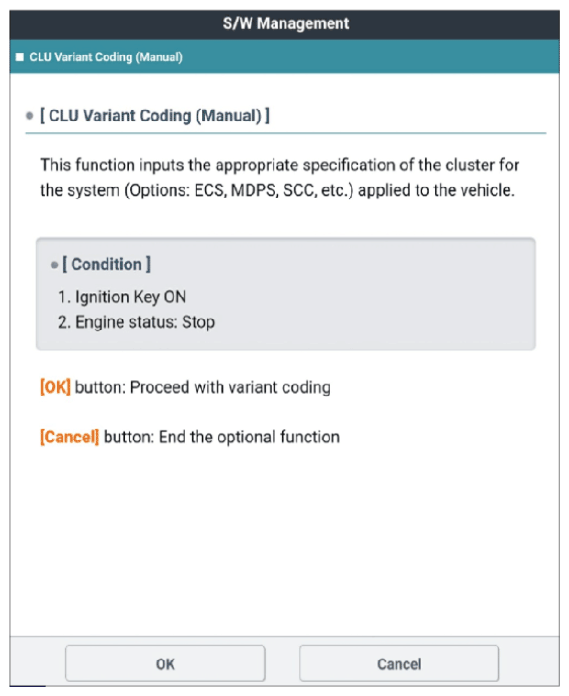

G14565545Courtesy of KIA MOTORS AMERICA, INC.

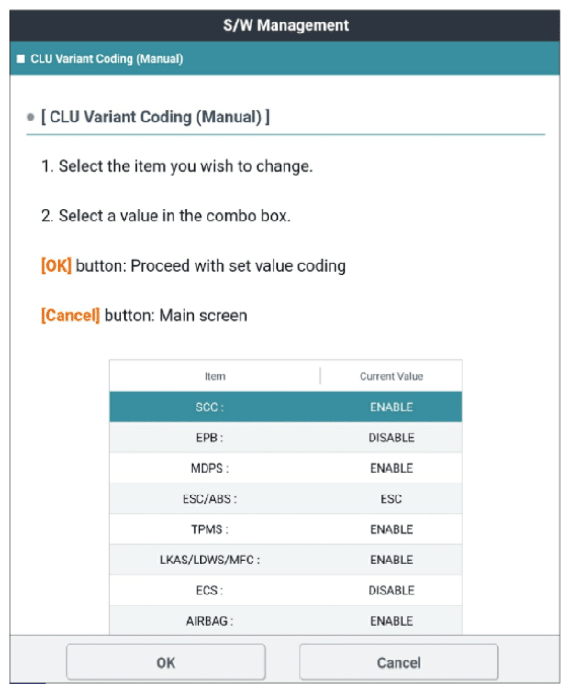

G14565546Courtesy of KIA MOTORS AMERICA, INC.

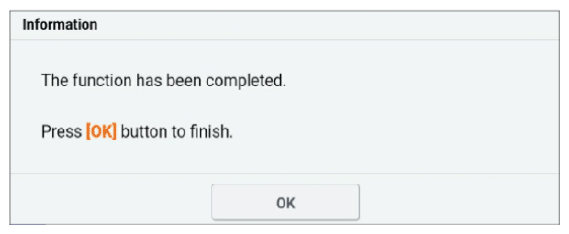

G14565547Courtesy of KIA MOTORS AMERICA, INC.
