Repair Procedures: Replacement

1. Remove the front door window glass.

   (Refer to Front Door - "FRONT DOOR WINDOW GLASS ")

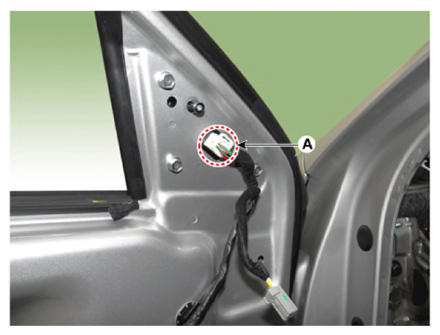

2. Disconnect the outside rear view mirror connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

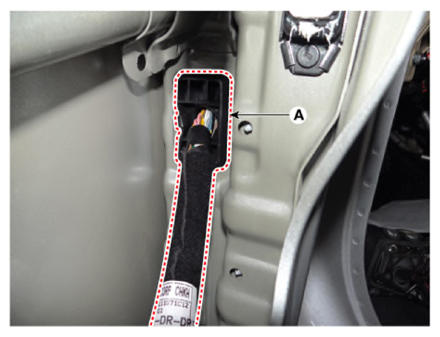

3. Disconnect the front door main connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

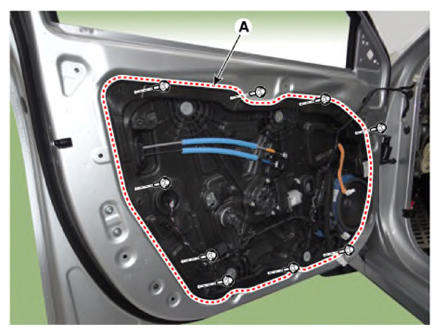

4. Loosen the mounting bolts and remove the front door module (A).

   Tightening torque:

   7.8 - 11.8 N.m (0.8 - 1.2 Kgf.m, 5.8 - 8.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

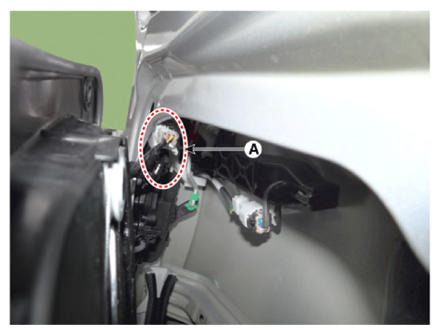

5. Disconnect the front door latch connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

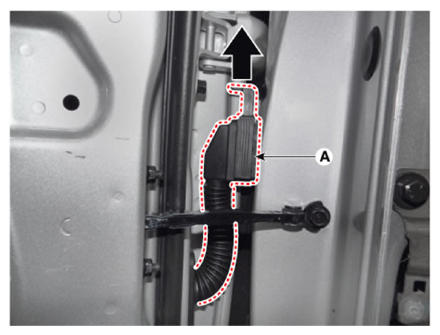

6. Disconnect the front door main wiring (A).

   Courtesy of KIA MOTORS AMERICA, INC.

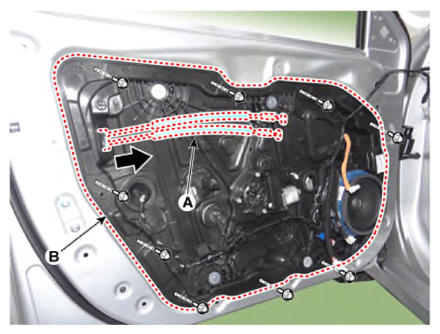

7. Remove the front door module (B) from the inside handle cable (A) by pulling it in the direction of the arrow

   Courtesy of KIA MOTORS AMERICA, INC.

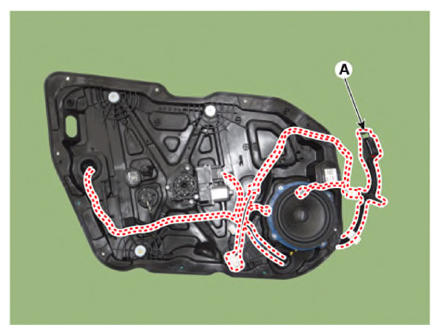

8. Disconnect the connectors and front door module wiring harness (A).

   Courtesy of KIA MOTORS AMERICA, INC.

9. Remove the front speaker.

   (Refer to Body Electrical System - "SPEAKERS ")

10. Remove the front power window motor.

    (Refer to Body Electrical System - "POWER WINDOW MOTOR ")

11. Remove the side impact sensor.

    (Refer to Restraint - "SIDE IMPACT SENSOR (SIS) ")

12. To install, reverse the removal procedure.

Information

• Make sure connectors are connected properly and each rod is connected securely.
• Make sure the door locks/unlocks and opens/closes properly.
