Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.

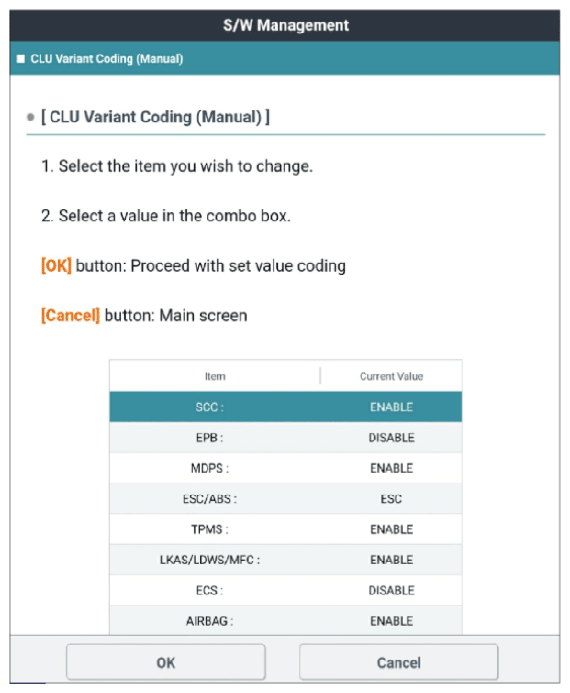

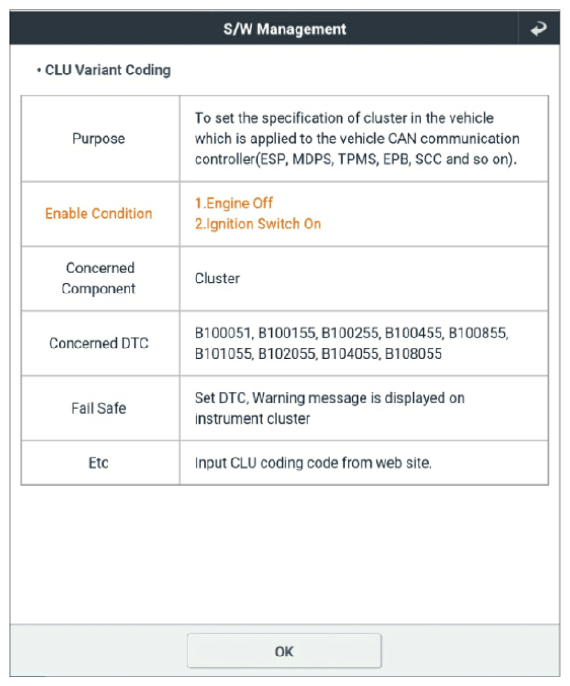

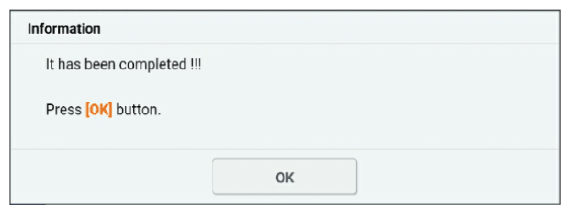

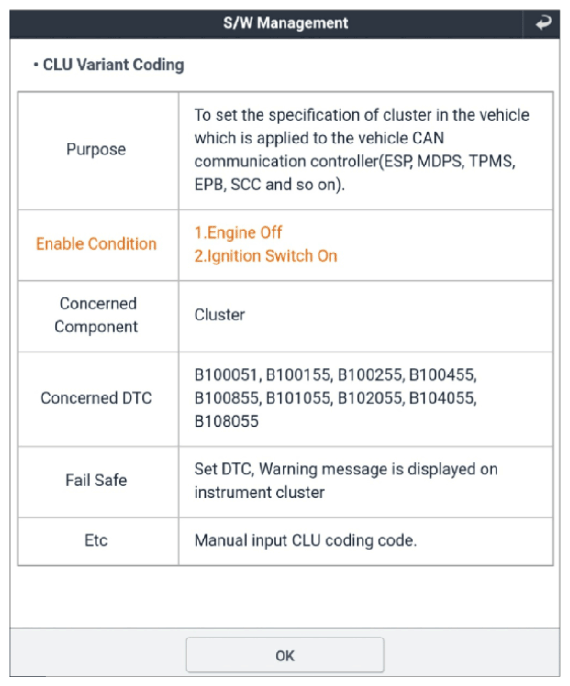

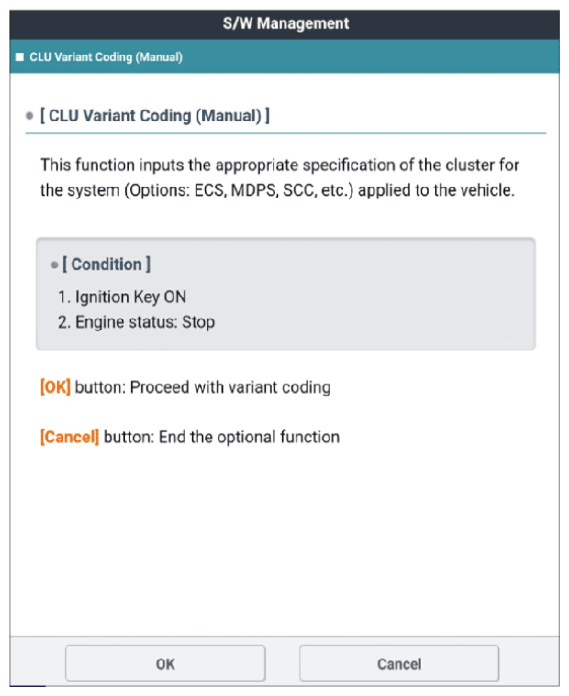

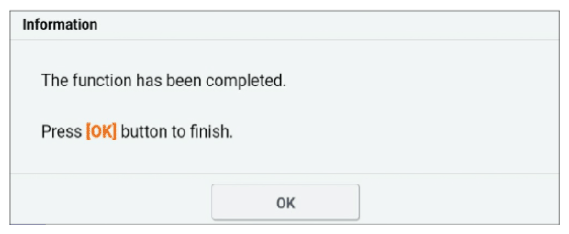

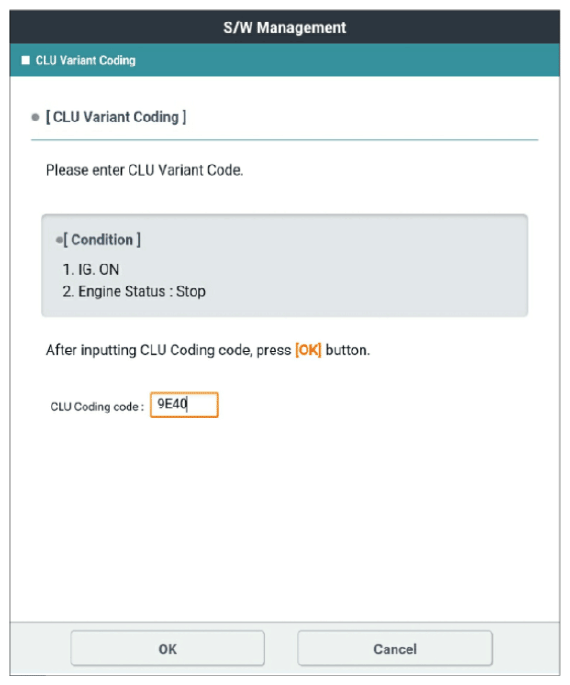

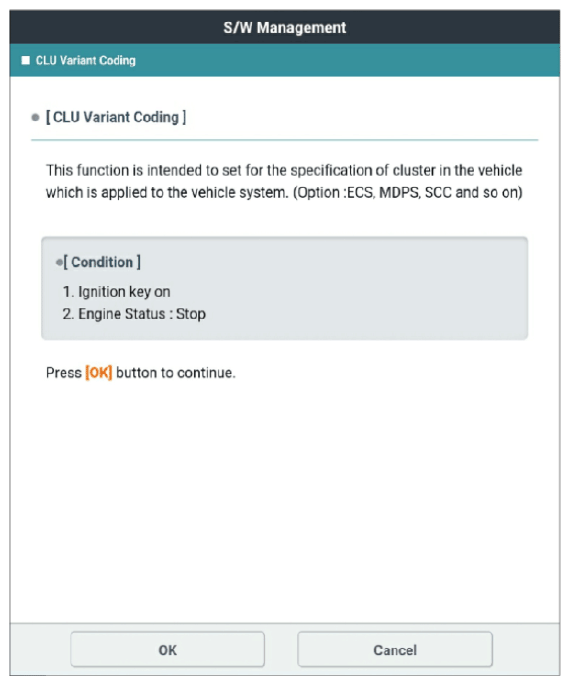

 Fig.1 to 8

Vehicle S/W Management

G14565350Courtesy of KIA MOTORS AMERICA, INC.
G14565351Courtesy of KIA MOTORS AMERICA, INC.
G14565352Courtesy of KIA MOTORS AMERICA, INC.
G14565353Courtesy of KIA MOTORS AMERICA, INC.
G14565354Courtesy of KIA MOTORS AMERICA, INC.
G14565355Courtesy of KIA MOTORS AMERICA, INC.
G14565356Courtesy of KIA MOTORS AMERICA, INC.
G14565357Courtesy of KIA MOTORS AMERICA, INC.
