Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 8

Vehicle S/W Management

G14565390Courtesy of KIA MOTORS AMERICA, INC.
G14565391Courtesy of KIA MOTORS AMERICA, INC.

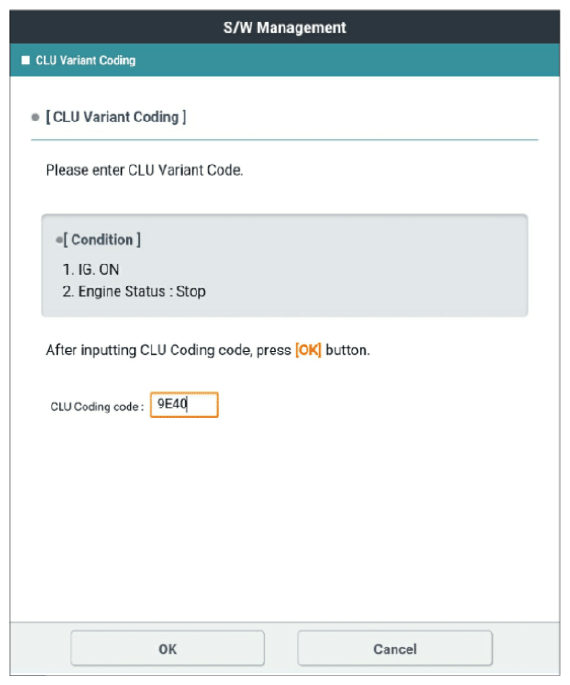

G14565392Courtesy of KIA MOTORS AMERICA, INC.

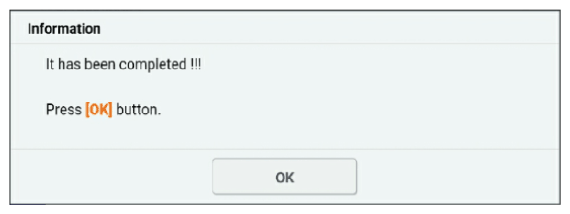

G14565393Courtesy of KIA MOTORS AMERICA, INC.

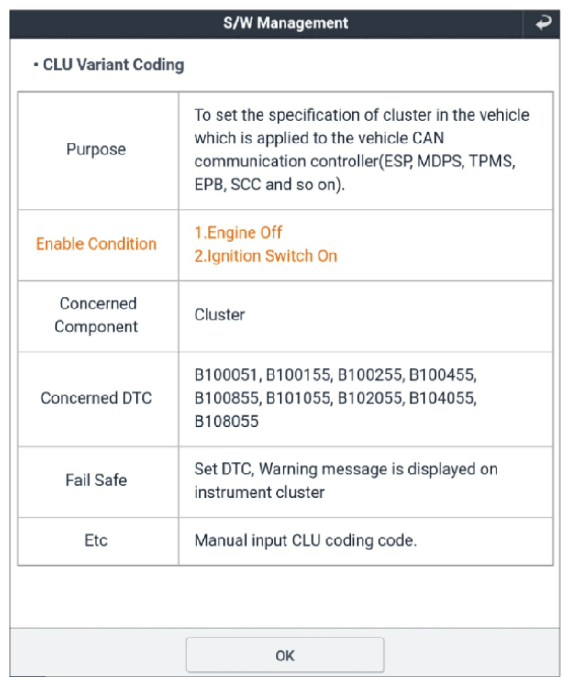

G14565394Courtesy of KIA MOTORS AMERICA, INC.

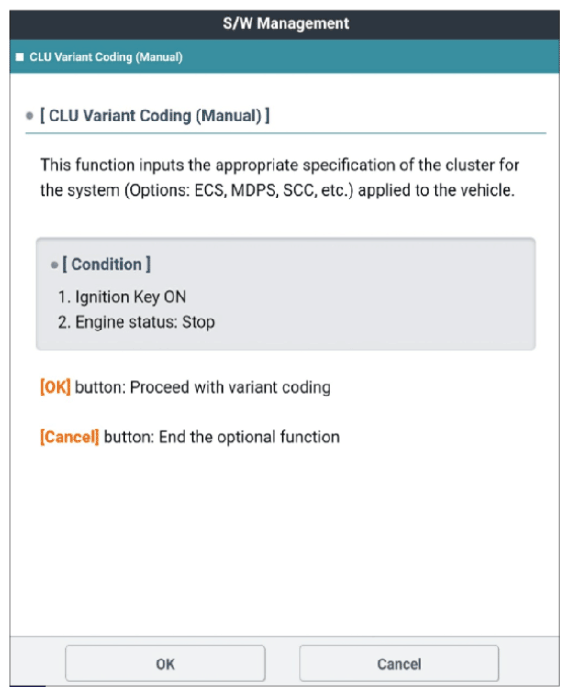

G14565395Courtesy of KIA MOTORS AMERICA, INC.

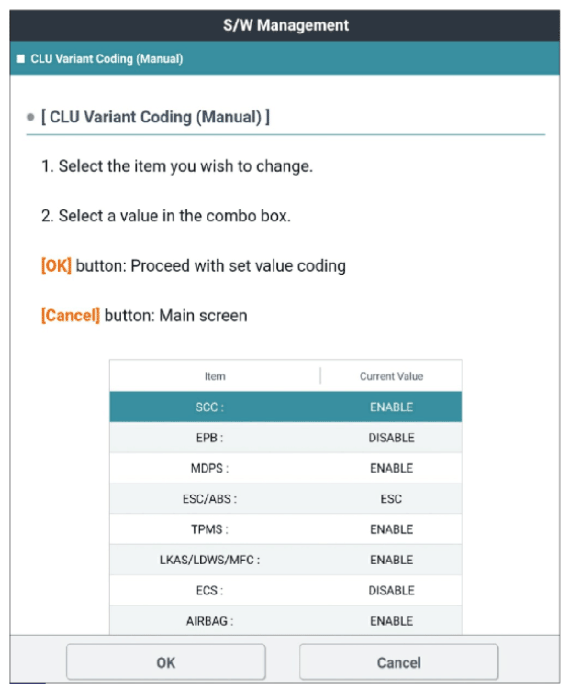

G14565396Courtesy of KIA MOTORS AMERICA, INC.

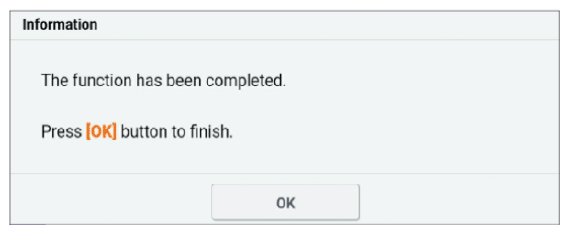

G14565397Courtesy of KIA MOTORS AMERICA, INC.
