Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 8

Vehicle S/W Management

G14565410Courtesy of KIA MOTORS AMERICA, INC.
G14565411Courtesy of KIA MOTORS AMERICA, INC.

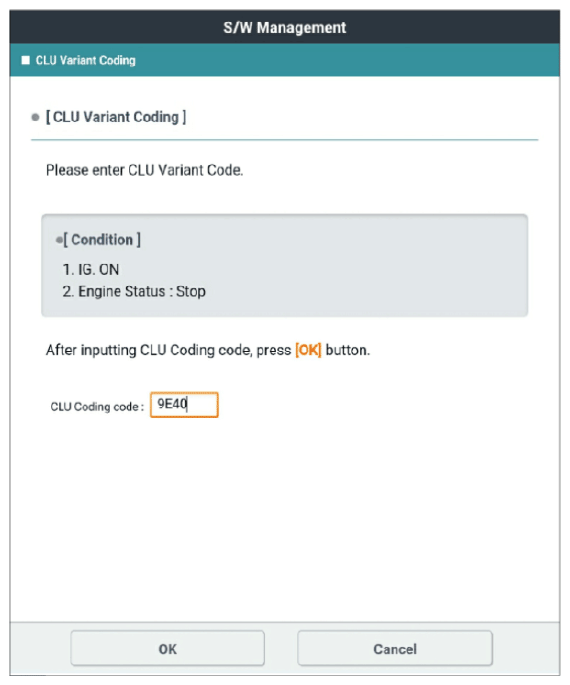

G14565412Courtesy of KIA MOTORS AMERICA, INC.

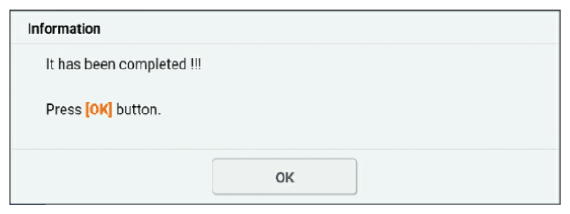

G14565413Courtesy of KIA MOTORS AMERICA, INC.

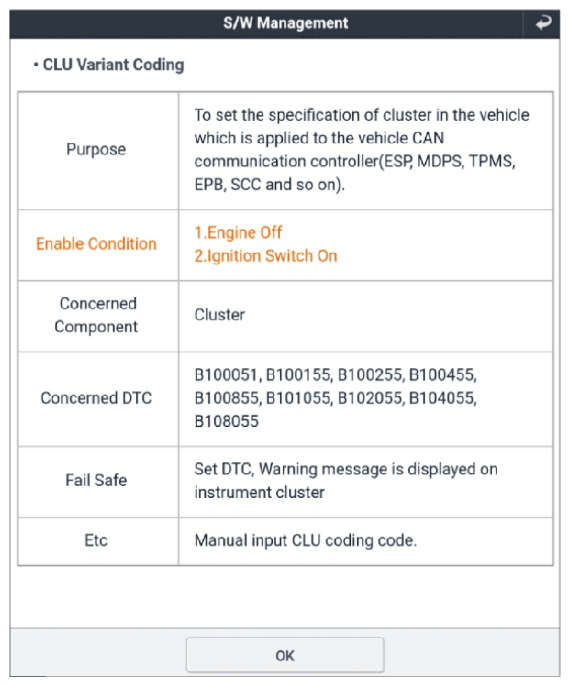

G14565414Courtesy of KIA MOTORS AMERICA, INC.

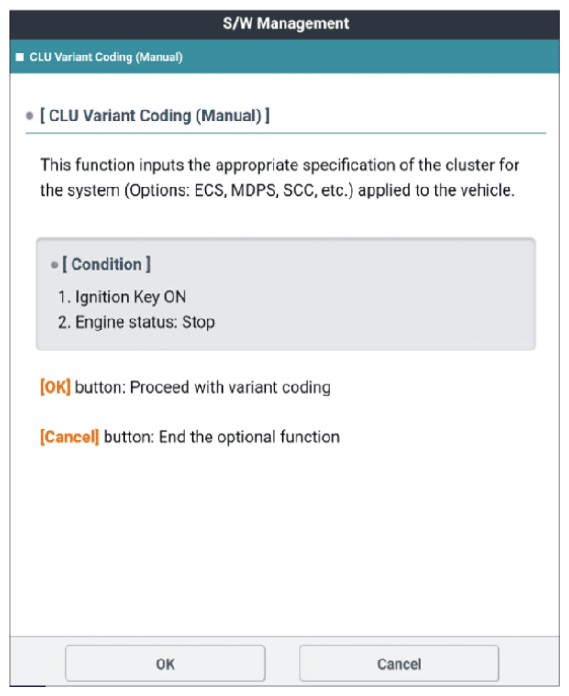

G14565415Courtesy of KIA MOTORS AMERICA, INC.

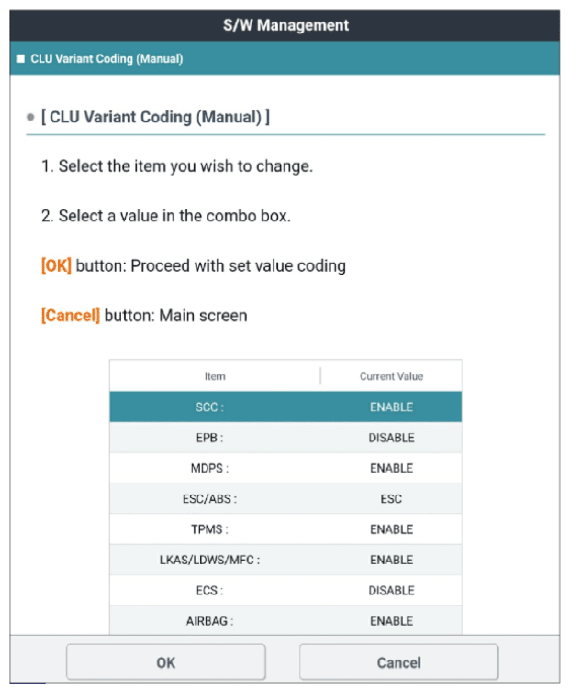

G14565416Courtesy of KIA MOTORS AMERICA, INC.

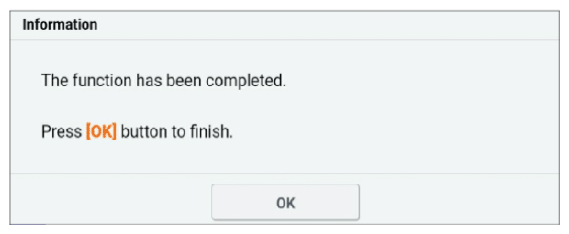

G14565417Courtesy of KIA MOTORS AMERICA, INC.
