Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 8

Vehicle S/W Management

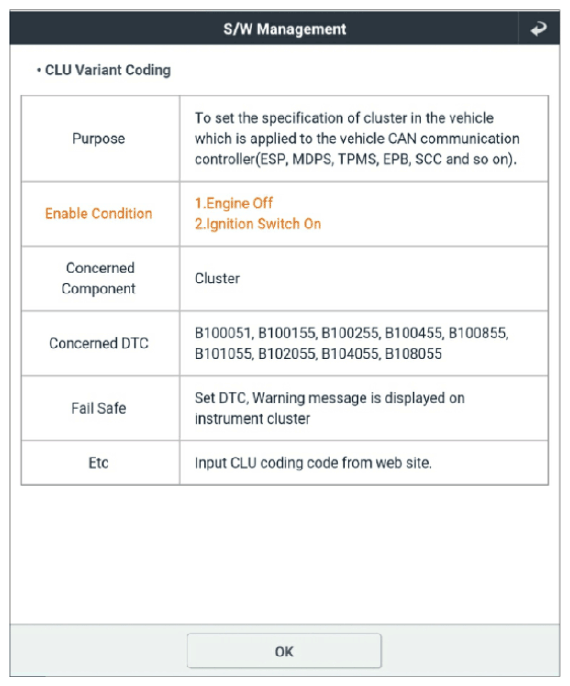

G14565450Courtesy of KIA MOTORS AMERICA, INC.

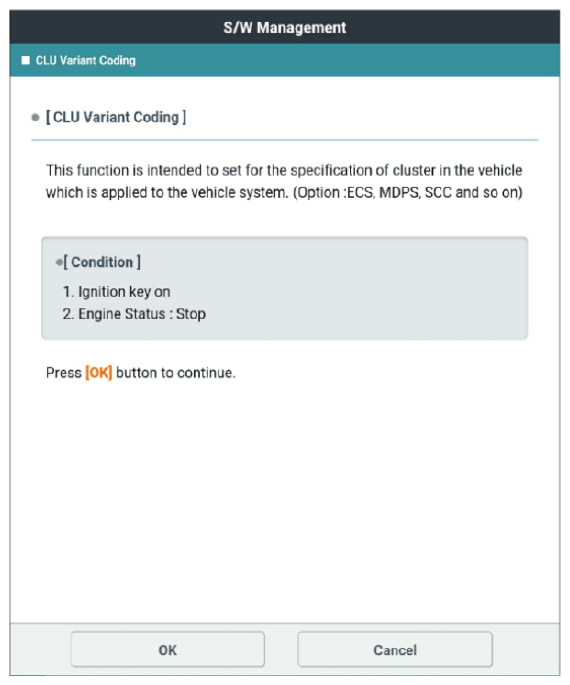

G14565451Courtesy of KIA MOTORS AMERICA, INC.

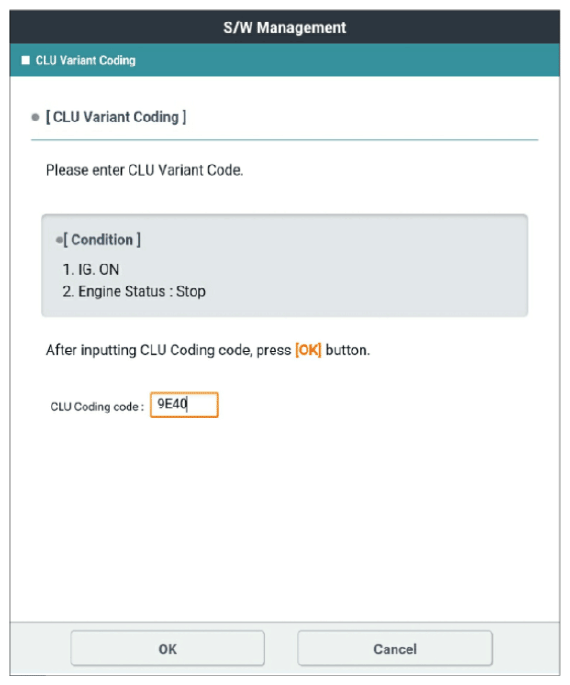

G14565452Courtesy of KIA MOTORS AMERICA, INC.

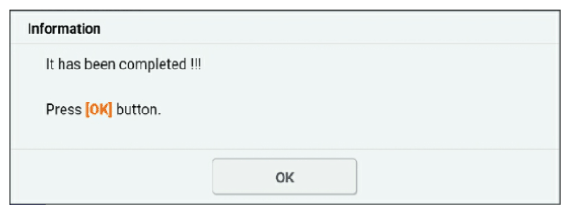

G14565453Courtesy of KIA MOTORS AMERICA, INC.

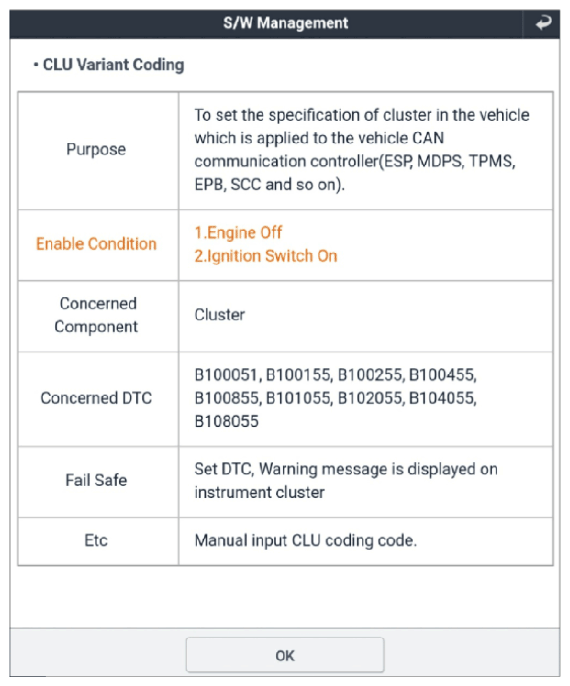

G14565454Courtesy of KIA MOTORS AMERICA, INC.
G14565455Courtesy of KIA MOTORS AMERICA, INC.

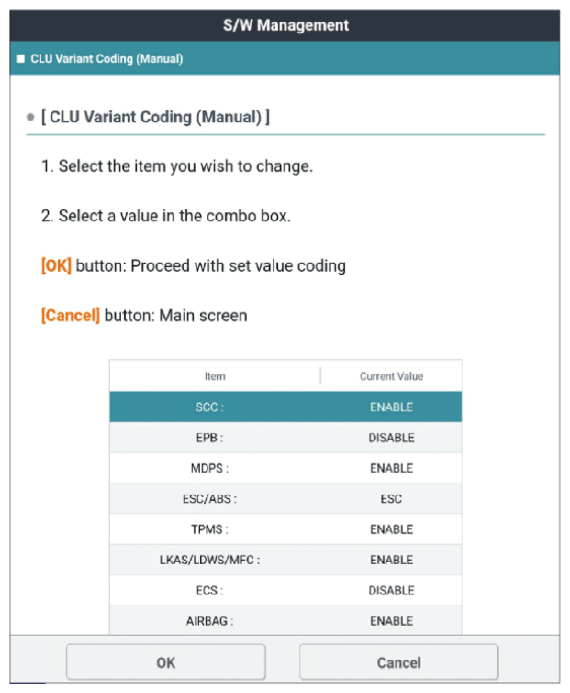

G14565456Courtesy of KIA MOTORS AMERICA, INC.

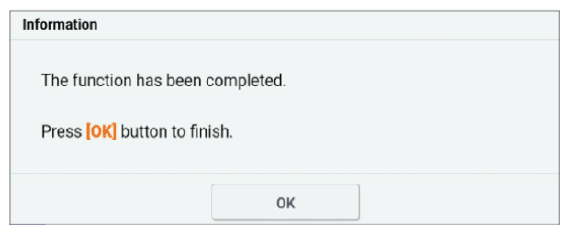

G14565457Courtesy of KIA MOTORS AMERICA, INC.
