Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 8

Vehicle S/W Management

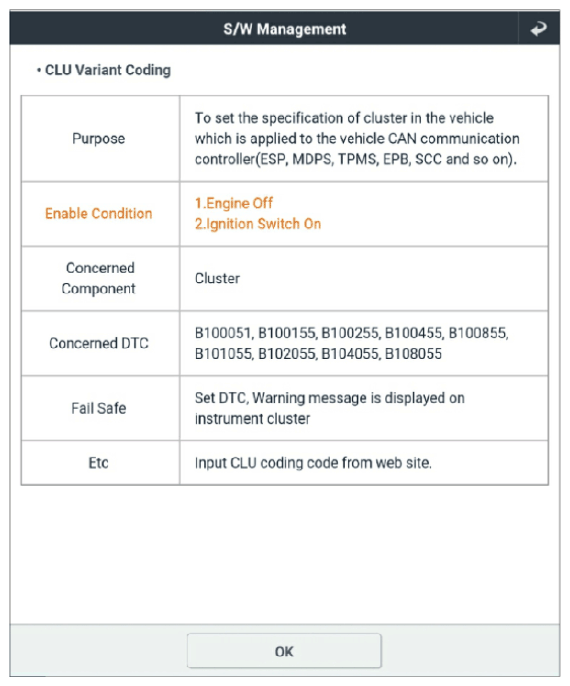

G14565470Courtesy of KIA MOTORS AMERICA, INC.

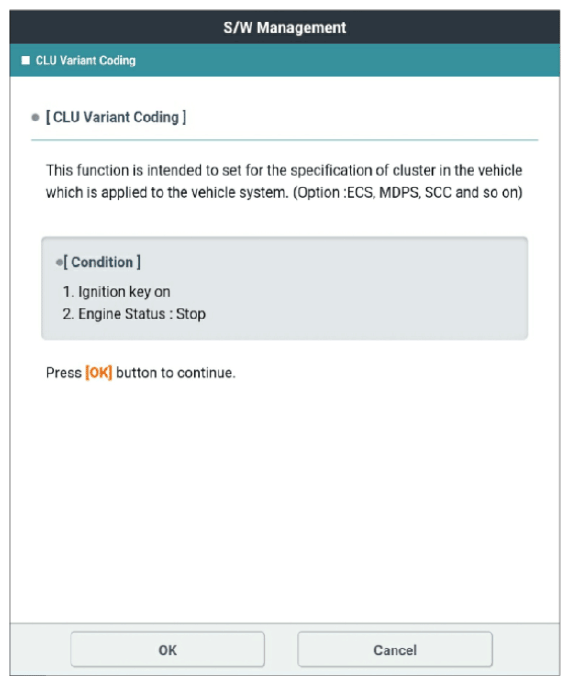

G14565471Courtesy of KIA MOTORS AMERICA, INC.

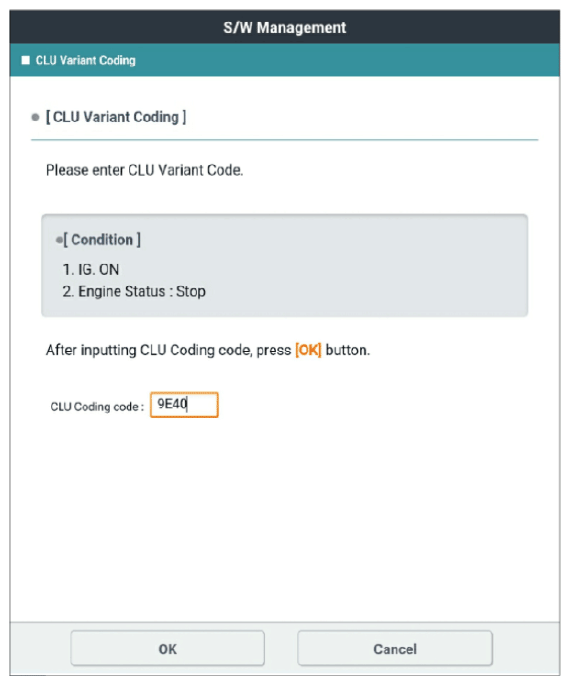

G14565472Courtesy of KIA MOTORS AMERICA, INC.

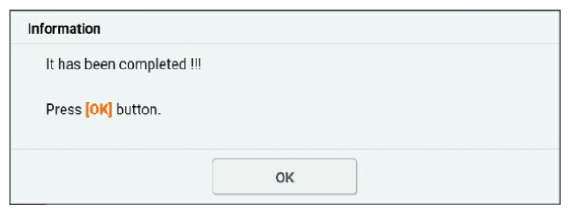

G14565473Courtesy of KIA MOTORS AMERICA, INC.

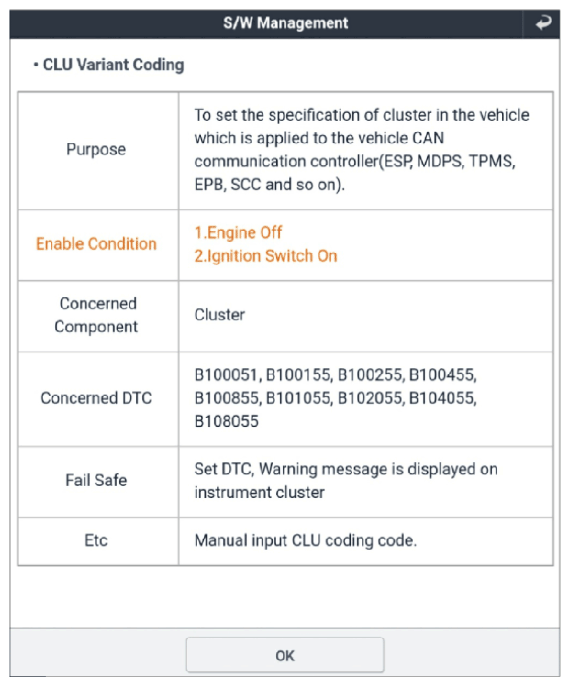

G14565474Courtesy of KIA MOTORS AMERICA, INC.

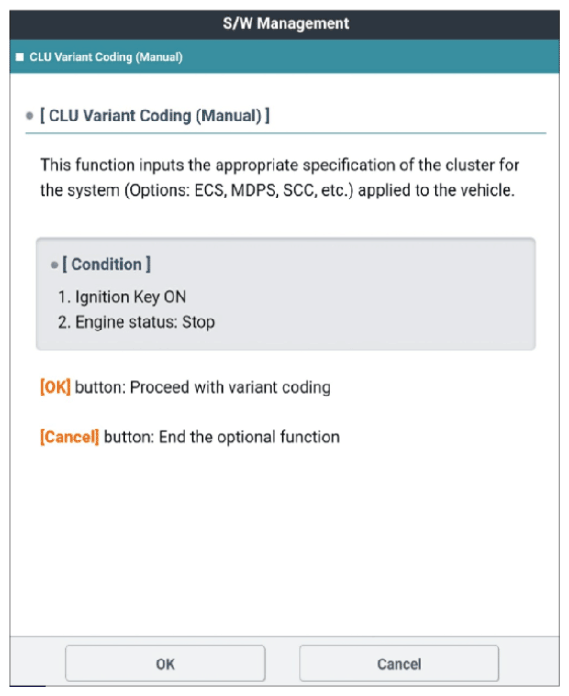

G14565475Courtesy of KIA MOTORS AMERICA, INC.

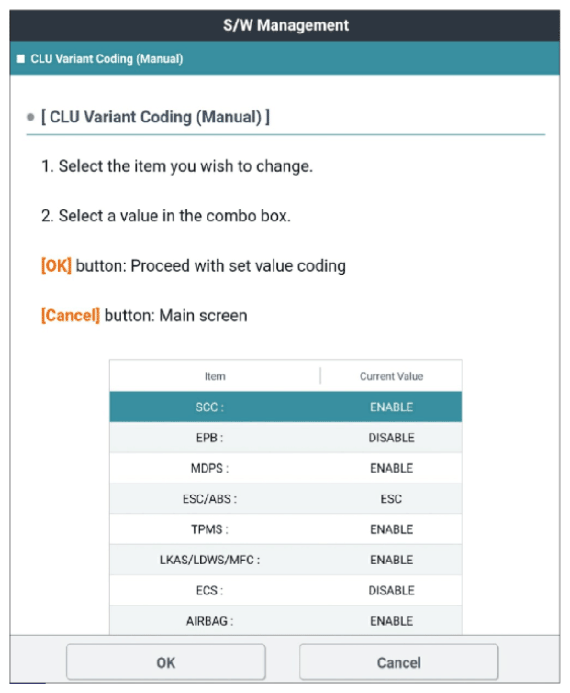

G14565476Courtesy of KIA MOTORS AMERICA, INC.

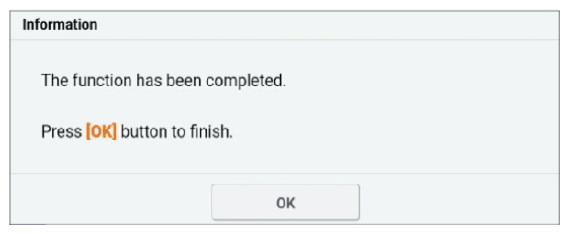

G14565477Courtesy of KIA MOTORS AMERICA, INC.
