Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 8

Vehicle S/W Management

G14565550Courtesy of KIA MOTORS AMERICA, INC.
G14565551Courtesy of KIA MOTORS AMERICA, INC.

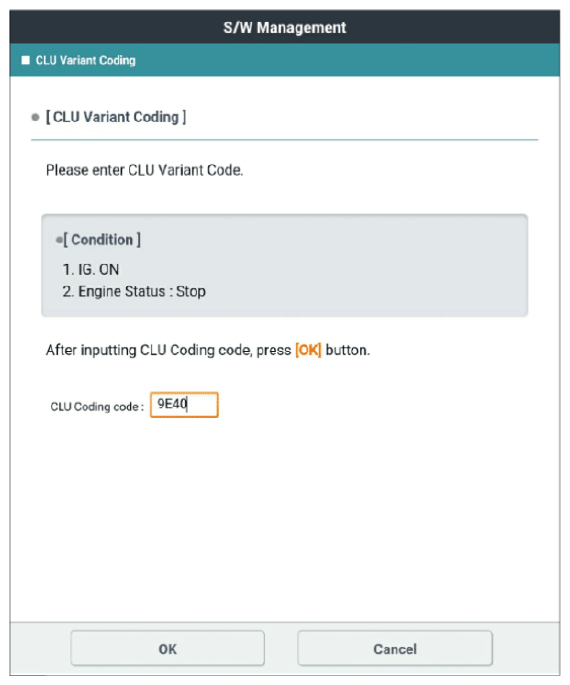

G14565552Courtesy of KIA MOTORS AMERICA, INC.

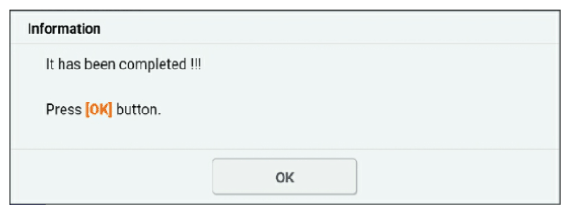

G14565553Courtesy of KIA MOTORS AMERICA, INC.

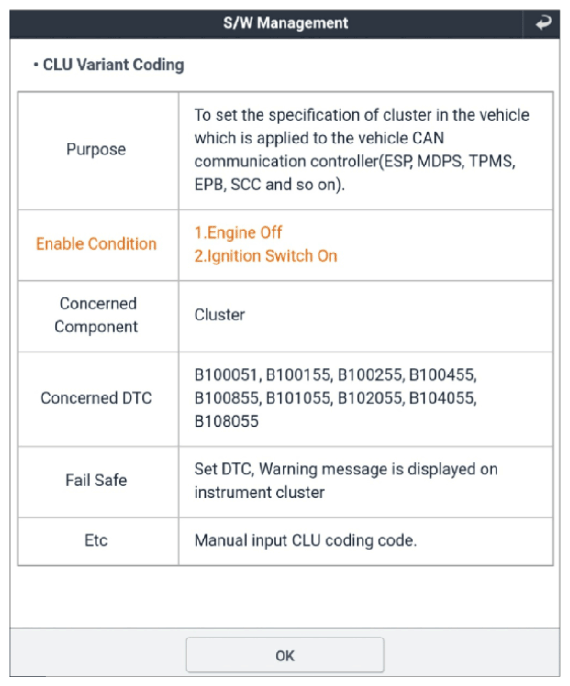

G14565554Courtesy of KIA MOTORS AMERICA, INC.

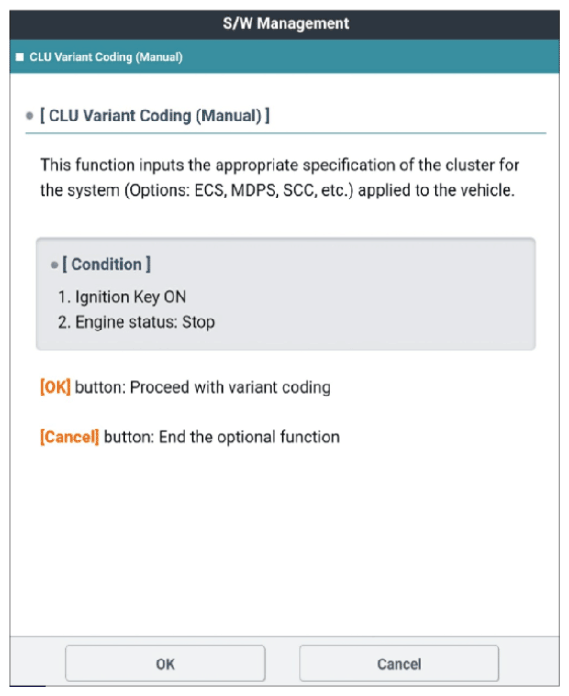

G14565555Courtesy of KIA MOTORS AMERICA, INC.

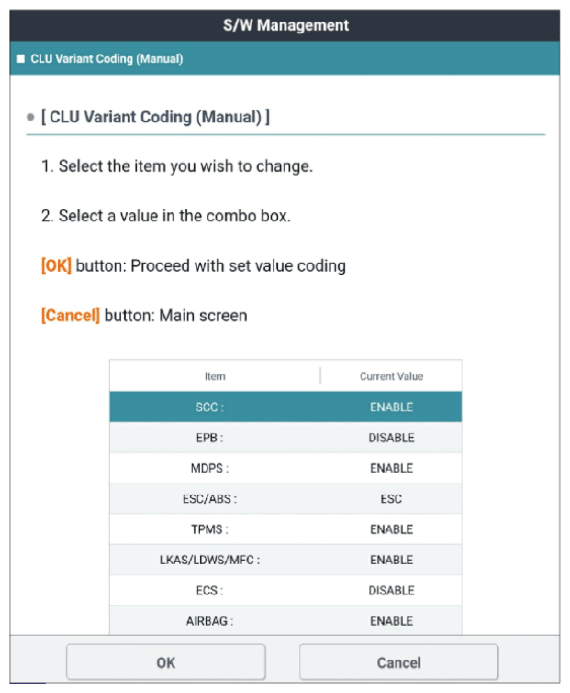

G14565556Courtesy of KIA MOTORS AMERICA, INC.

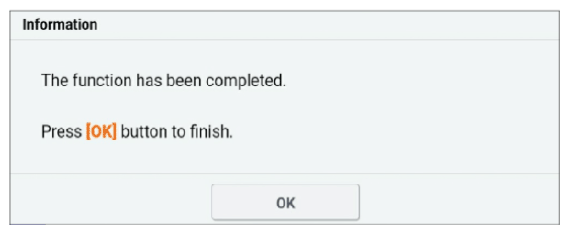

G14565557Courtesy of KIA MOTORS AMERICA, INC.
