Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Be careful not to damage the hood and body.

Information

Removing or installing the hood requires an assistant.
When removing the clips, use a clip remover.

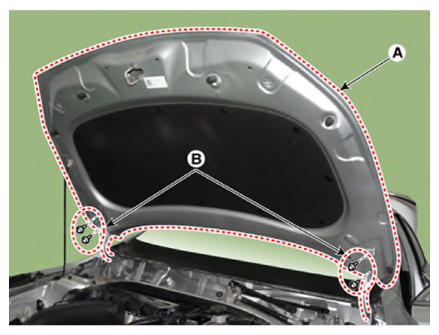

After loosening the hood hinge (B) mounting bolts, remove the hood assembly (A).
Tightening torque:

20.6 - 27.5 N.m (2.1 - 2.8 Kgf.m, 15.2 - 20.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information
- Make sure the hood locks/unlocks and opens/closes properly.
- Adjust the hood alignment.
