Double Clutch Transmission Control System - 1.6L
>>
DCT Control Module (TCM)
>>
Schematic Diagrams
>>
Terminal Input/Output Signal
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

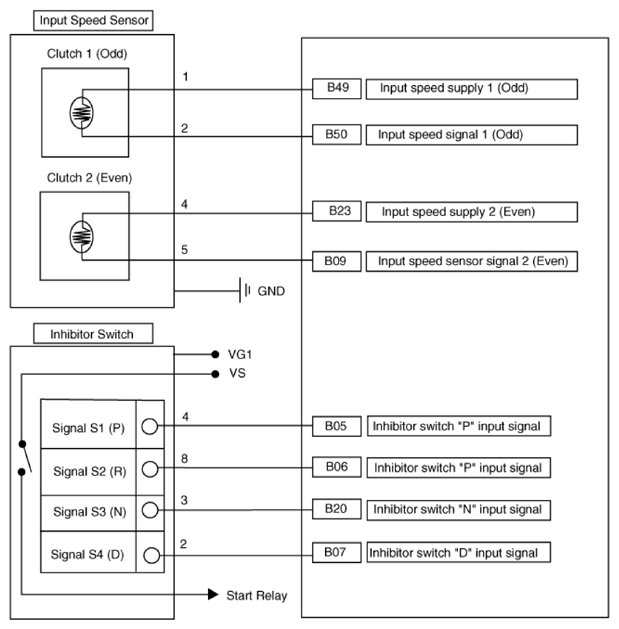

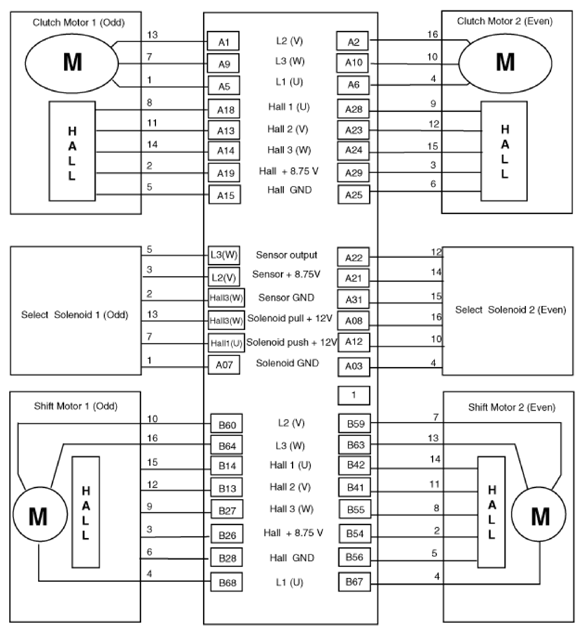

Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
